Current Sensor
Issue 2 - July 2006
ZMC10D
•

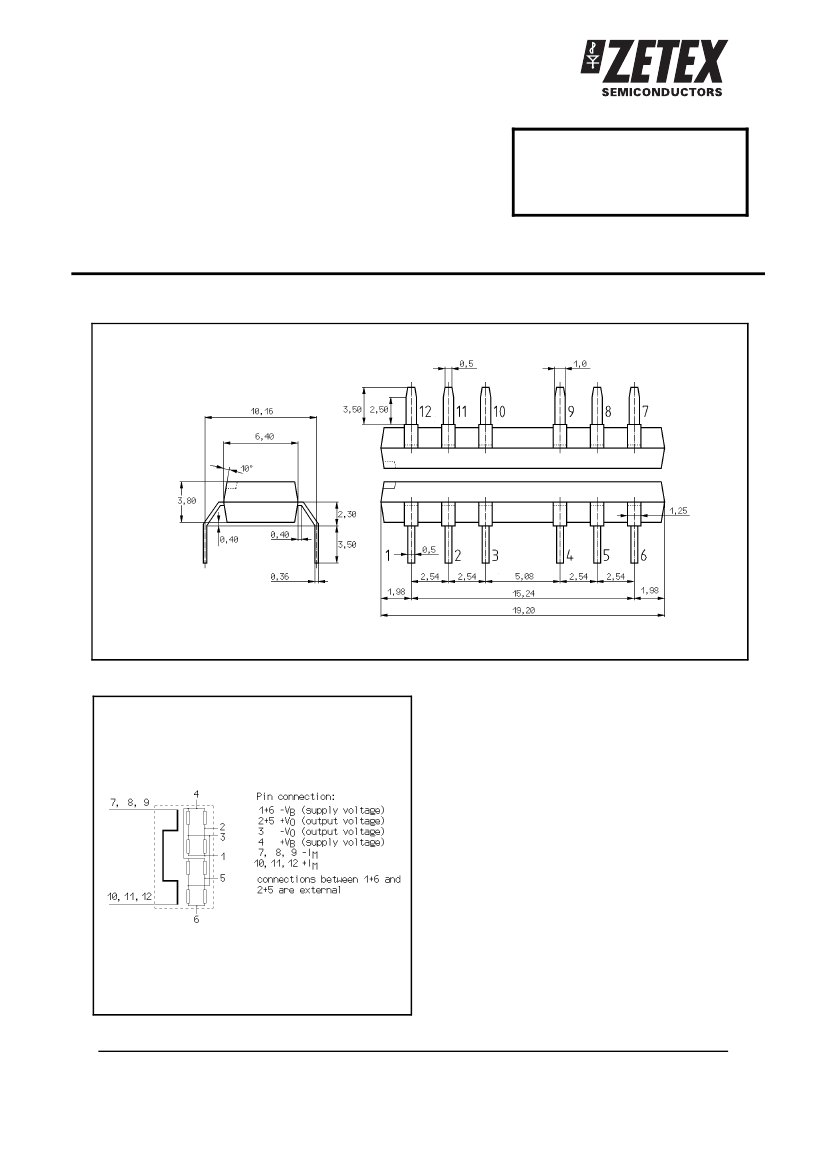

Package : mod. DIL-14 (12 pin)
•
Double magnetic sensor chip (employing
the magnetoresistive effect of thin film per-
malloy) measures the magnetic field gen-
erated by an internal current-carrying
conductor
•
measurable direct or alternating current I
M
up to 10A
•
supply voltage 12 V
•
no auxiliary field H
X
required
•
it’s possible to overload the conductor (be-
tween pin’s 8,9,10 and 11,12,13) with
300A for 10 ms at T
amb
= 25 °C
FEATURES
Issue
2
-
July 2006
© Zetex Semiconductors plc 2006
www.zetex.com
ZMC 10D
ABSOLUTE MAXIMUM RATINGS
Parameter
Supply voltage
Supply current
Measurable current
at DC: absolute value
at AC: peak value
Operating temperature range
Storage temperature range
Symbol
V
br
I
br
I
m
12
20
10
Unit
V
mA
A
T
amb
T
stg
-25 to +100
-25 to +125
°C
°C
ELECTRICAL CHARACTERISTICS
(at T
amb
= 25 °C unless otherwise stated)
Parameter
Symbol Min. Typ. Max.
-
-
5
Unit
nA
Test conditions
test voltage: 2000V DC
test time: 1s
I
i-o
Input-Output-Insulation
(pin 7, 8, 9, 10, 11, 12
shorted together and pin 1,
2, 3, 4, 5, 6 shorted together)
Bridge resistance
Temperature coefficient of
bridge resistance
Bridge supply current (con-
stant current source)
Offset coefficient of
V
outoff1
(current supply re-
jection ratio)
Offset voltage (static, con-
stant)
Offset voltage (dynamic,
nonlinear)
Temperature coefficient of
V
outoff1
Open circuit sensitivity
(absolute V
out
/I
m
, with off-
set compensation, no dis-
turbing field allowed)
Resistance of the conductor
Operating frequency
R
br
T
crbr
I
br
CSRR
600
-
-
-
800
+0.3
13
1300
-
-
Ω
%/K
mA
mV/mA
T
amb
= -25...+100°C
T
amb
= -25...+100°C
±1.5 ±2.5
V
outoff1
V
outoff2
T
cvoff1
S
a
-
-
-35
2.7
±19
-
-
3.9
æ32
±2
+35
5.1
mV
mV
µV/K
mV/A
I
br
=13mA and
R
br
= 0.8kΩ
in dependence on I
m
and
T
amb
I
br
=13mA and
R
br
= 0.8kΩ
I
br
=13mA and
R
br
= 0.8kΩ
R
f
max
-
0
0.7
-
-
100
mΩ
kHz
I
m
≤
10A
Issue
2
-
July 2006
© Zetex Semiconductors plc 2006
www.zetex.com
ZMC 10D
ELECTRICAL CHARACTERISTICS
(at T
amb
= 25 °C unless otherwise stated)
Parameter
Temparature coefficient
of S
a
Output voltage range
Nonlinearity error of S
a
Disturbance signal
influence on disturbing
field H
d
(V
out
=I
m
*S
a
+
V
outhd
)
Symbol Min. Typ. Max.
T
csi
V
out
NLE
V
outhd
-
-
-
-
-
−
|6|
±0.5
-0.12
<æ10
0
−
-
Unit
%/K
mV
%
mV
Test conditions
I
br
=13mA and
R
br
= 0.8kΩ
I
br
=13mA and
R
br
= 0.8kΩ
I
m1
= 1A; I
m2
= 2A
I
br
=13m; R
br
= 0.8kΩ
and H
d
= 10A/m in
50mm distance to sensor
Equations of condition:
V
outoff1
[mV] = CSRR [mV/mA] * I
br
[mA]
CSRR [mV/mA] = (R
34
+ R
12
- R
24
- R
13
) [Ω] * 0.5 (at I
m
= 0)
pinning of magnetoresistive resistors:
R
34
: between pin 3 and pin 4
R
12
: between pin 1 and pin 2
R
24
: between pin 2 and pin 4
R
13
: between pin 1 and pin 3
external connections:
pin 2 shorted to pin 5
pin 1 shorted to pin 6
Circuit connections:
condition: pin4: +I
br
and pin 1,6: -I
br
pin 7, 8, 9
pin 10, 11, 12
pin 7, 8, 9
pin 10, 11, 12
: +I
m
: -I
m
: -I
m
: + I
m
pin 2, 5: -V
out
and pin 3: +V
out
pin 2, 5: +V
out
and pin 3: -V
out
Devices are identified by type on the body of the device:
ZMC10D ..... ZMC10D
Ordering information:
ZMC10D.......... in boxes
Issue
2
-
July 2006
© Zetex Semiconductors plc 2006
www.zetex.com
