SPD-50-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> SPD-50-3

SPD-50-3: DescriptionSTRING POT 50 INCH RANGE; CategoryThe sensor; File Size919KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

SPD-50-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SPD-50-3	-	-	View	Buy Now

SPD-50-3 Overview

STRING POT 50 INCH RANGE

SPD-50-3 Parametric

Parameter Name	Attribute value
output signal	0 – 10 VDC, 4 – 20 mA
Shell material	Polycarbonate + stainless steel mounting bracket
Operating Temperature (°F)	-40 – 160
Operating temperature (°C)	-40 – 71
Resolution (mm)	continuous simulation
IP rating	IP67
Hazardous area certification	no
All travel range	101.6 – 1270 mm [ 4 – 50 in ]
Accuracy (% of FS)	.25
Repeatability (% of FS)	.02
Encoder driver	no
Measuring cable	Nylon coated stainless steel

Preview

Download Datasheet

View All

SPD

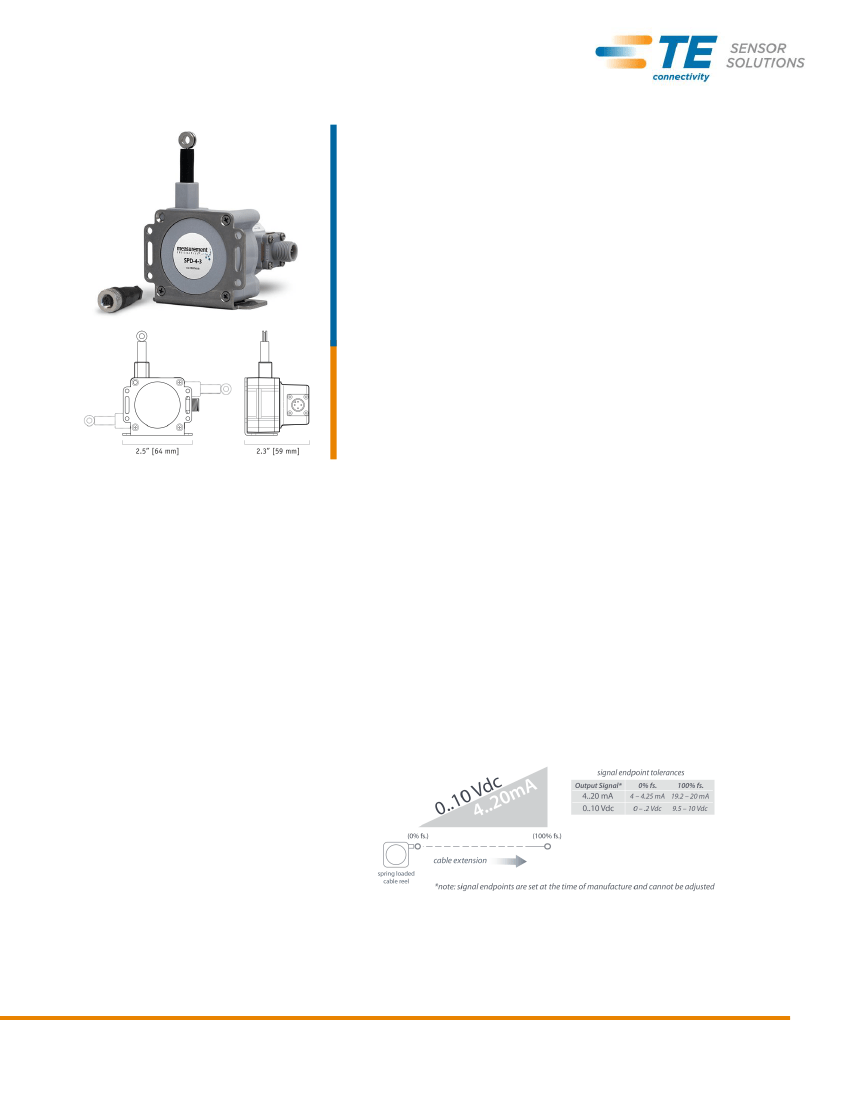

Compact, High-Performance String Pot

Dual Ouput to 50”

Comes With Both 4...20mA and 0...10V Output

Rugged IP67 Polycarbonate Enclosure

Mounting Bracket & Sensor Cover Adjusts for Easy Installation

IN STOCK for Quick Delivery!

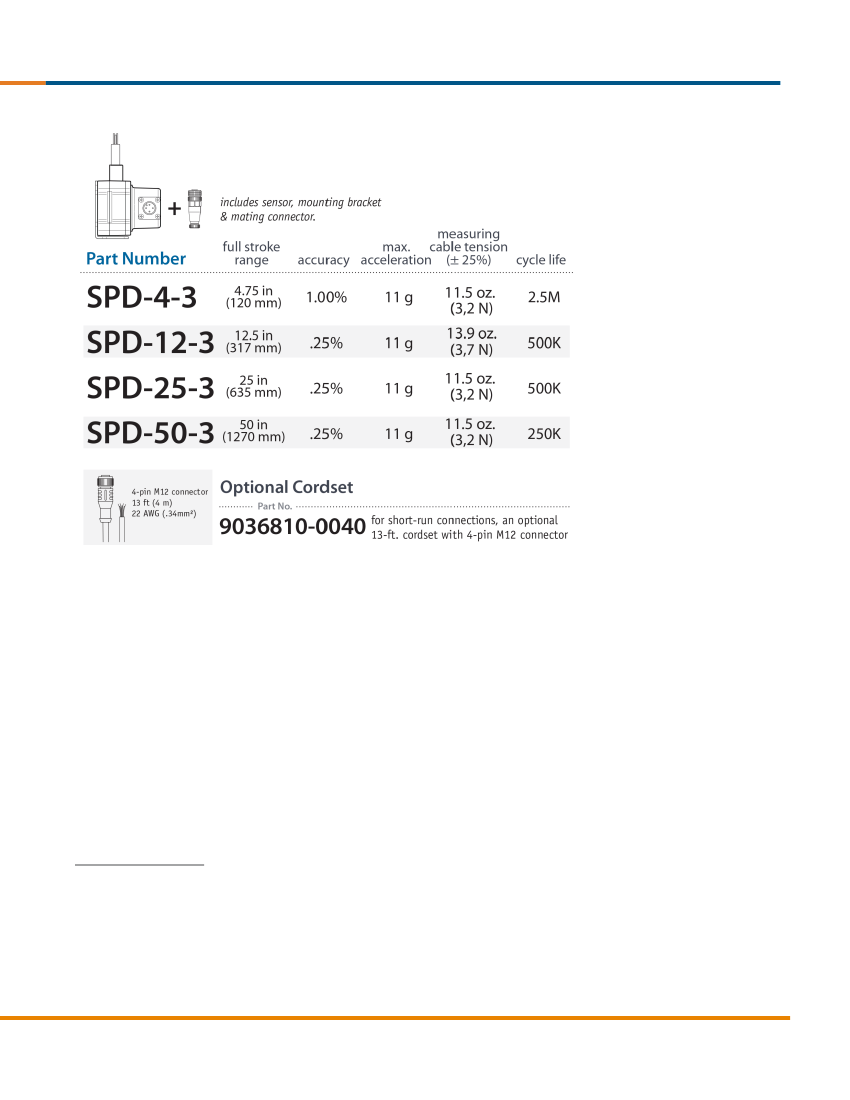

Specifications

Full Stroke Range Options

User Selectable Output Signal

Input Voltage, 4...20 mA option

0-4.75 to 0-50 inches

4...20 mA (2-wire) / 0...10 Vdc

8-40 VDC

Input Voltage, 0...10 Vdc option

12-32 VDC

Accuracy

This compact stringpot provides the ultimate in

ease-of-use and flexibility. This sensor fits in

small spaces, doesn’t need perfect alignment,

mounts in just about any direction imaginable

and has a unique circuit that lets the user

choose 4-20mA or 0-10Vdc output on the fly.

The SPD comes in 4 different stroke ranges up

to 50 inches and is constructed with a rugged

polycarbonate body sealed against IP67 (wet)

environments for both indoor and outdoor

applications. Every unit ships with a stainless

steel mounting bracket that lets the user easily

point the measuring cable in the direction

needed.

High value and economical price makes this

sensor the perfect choice for the OEM and

single-piece user alike. Customer specific

designs available for the OEM, please contact

factory for more information.

Repeatability

Resolution

Measuring Cable

Sensor

Cycle Life

Electrical Connection

Enclosure

Environmental

Operating Temperature

Weight (includes sensor,

bracket and connector)

see ordering information

.05% FS.

essentially infinite

.019-inch dia. nylon-coated stainless steel

plastic-hybrid precision potentiometer

see ordering information

M12 connector (mating plug included)

glass-filled polycarbonate

IP 67

-40˚ to 160˚ F (-40˚ to 70˚ C)

.4 lbs (.19 kg)

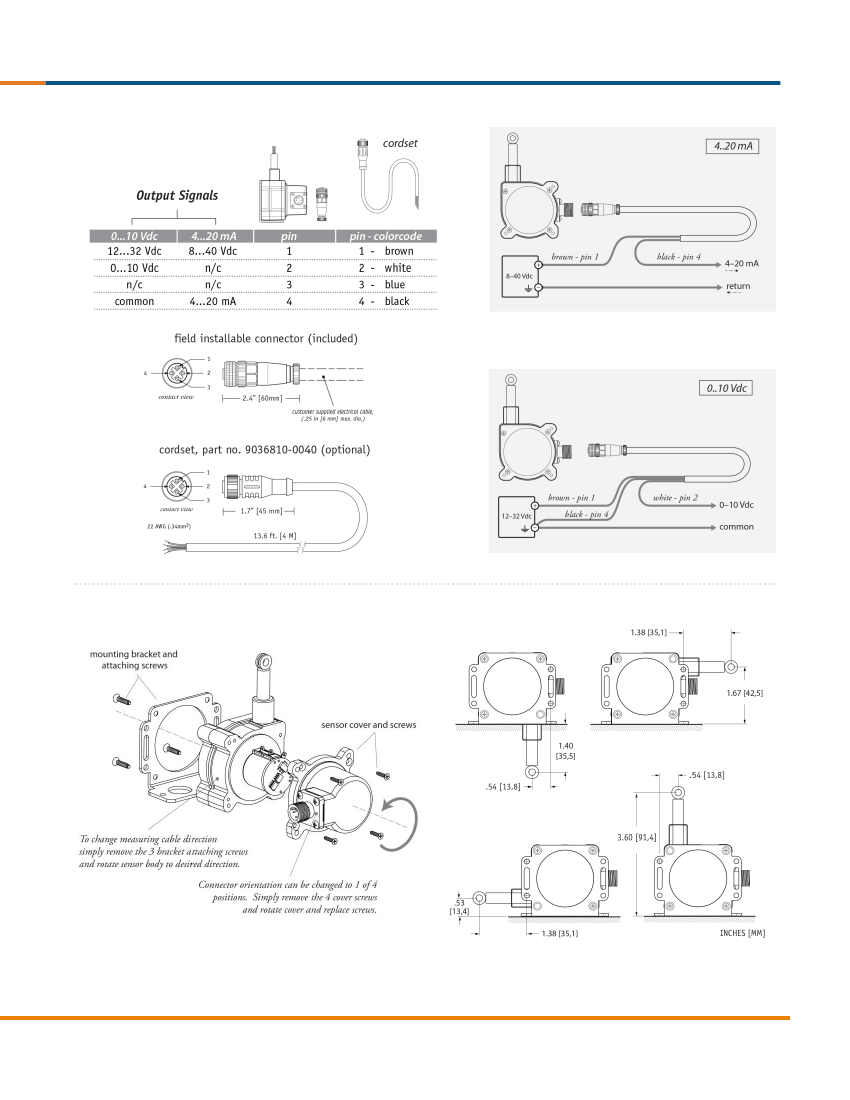

Output Signal

SENSOR SOLUTIONS

/// SPD

12//2015

Page 1
