MS3437B81C Overview

Circular MIL Spec Backshells

MS3437B81C Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	unknown
Factory Lead Time	8 weeks
Connector bracket type	CONNECTOR ACCESSORY

Preview

Download Datasheet

View All

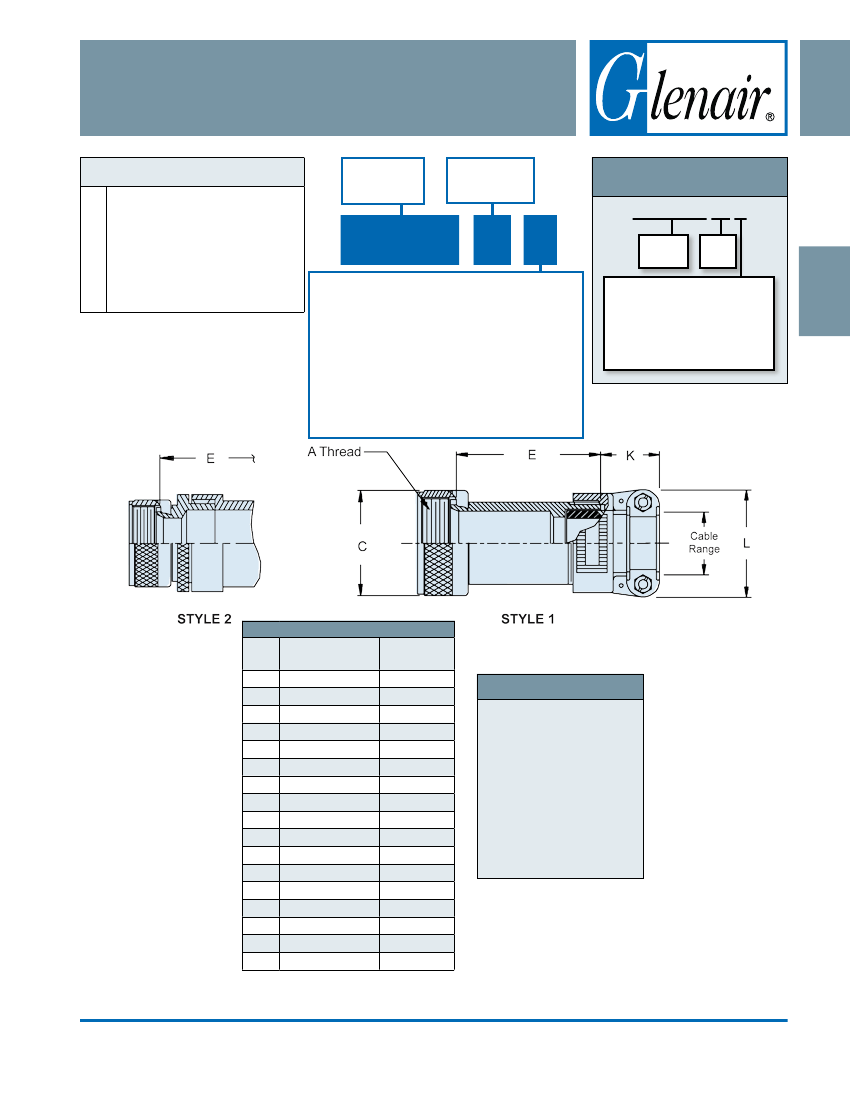

AS85049/11 and MS3437B

Straight Environmental Backshell

CONNECTOR DESIGNATOR:

AS50151 Series AS34001

MIL-DTL-26482 Series II

AS81703 Series III

MIL-DTL-83723 Series I & III

40M39569, DEF 5326-3, EN 2997

EN 3646, ESC 10, ESC 11, LN 29504

NFC93422 Series HE302

PAN 6432-1, PAN 6432-2, PATT 602

Basic

Part Number

Dash Number

(Table II)

Superseded

Part Number

MS3437B 21 N

M85049/11

Basic

Part No.

Dash

No.

Finish / Material

= Black Cadmium / Stainless Steel

= Electroless Nickel / Aluminum

= Passivated / Stainless Steel

= 1,000 Hr. Cadmium Olive Drab over Electroless Nickel /

Aluminum

= Nickel Fluorocarbon Polymer / Aluminum

= Pure Dense Electrodeposited Aluminum / Aluminum

= Zinc Nickel, Black / Aluminum

= Nickel Fluorocarbon Polymer / Stainless Steel

= Pure Dense Electrodeposited Aluminum / Stainless Steel

= Zinc Nickel, Black / Stainless Steel

(Material is Aluminum Only)

Cadmium Olive Drab over Nickel

Cadmium Olive Drab

Electroless Nickel

Finish

TABLE I: Shell Size and Dimensions

Shell

Size

A Thread

Class 2B-LH

.562 - 24 UNEF

.500 - 20 UNF

.625 - 24 UNEF

.750 - 20 UNEF

.875 - 20 UNEF

1.000 - 20 UNEF

1.062 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

1.750 - 18 UNS

2.000 - 18 UNS

2.250 - 16 UN

2.500 - 16 UN

2.750 - 16 UN

3.000 - 16 UN

1.500 - 18 UNEF

C Dia

Max

.669 (17.0)

.617 (15.7)

.734 (18.6)

.858 (21.8)

.984 (25.0)

1.112 (28.2)

1.218 (30.9)

1.345 (34.2)

1.468 (37.3)

1.593 (40.5)

1.969 (50.0)

2.219 (56.4)

2.469 (62.7)

2.719 (69.1)

2.969 (75.4)

3.219 (81.8)

1.653 (42.0)

APPLICATION NOTES

For complete dimensions

see the applicable Military

Specification.

Metric dimensions (mm) are

in parentheses.

When maximum cable entry

is exceeded, Style 2 will be

supplied.

Cable Range is defined as

the accommodation range

for the wire bundle or cable.

Dimensions shown are

not intended for inspection

criteria.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-31

E-Mail: sales@glenair.com

AS85049
