AN90C20 datasheet, PDF - EEWORLD Datasheet

AN90C20: DescriptionTRANSISTOR ARRAYS; CategoryDiscrete semiconductor The transistor; File Size142KB，5 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

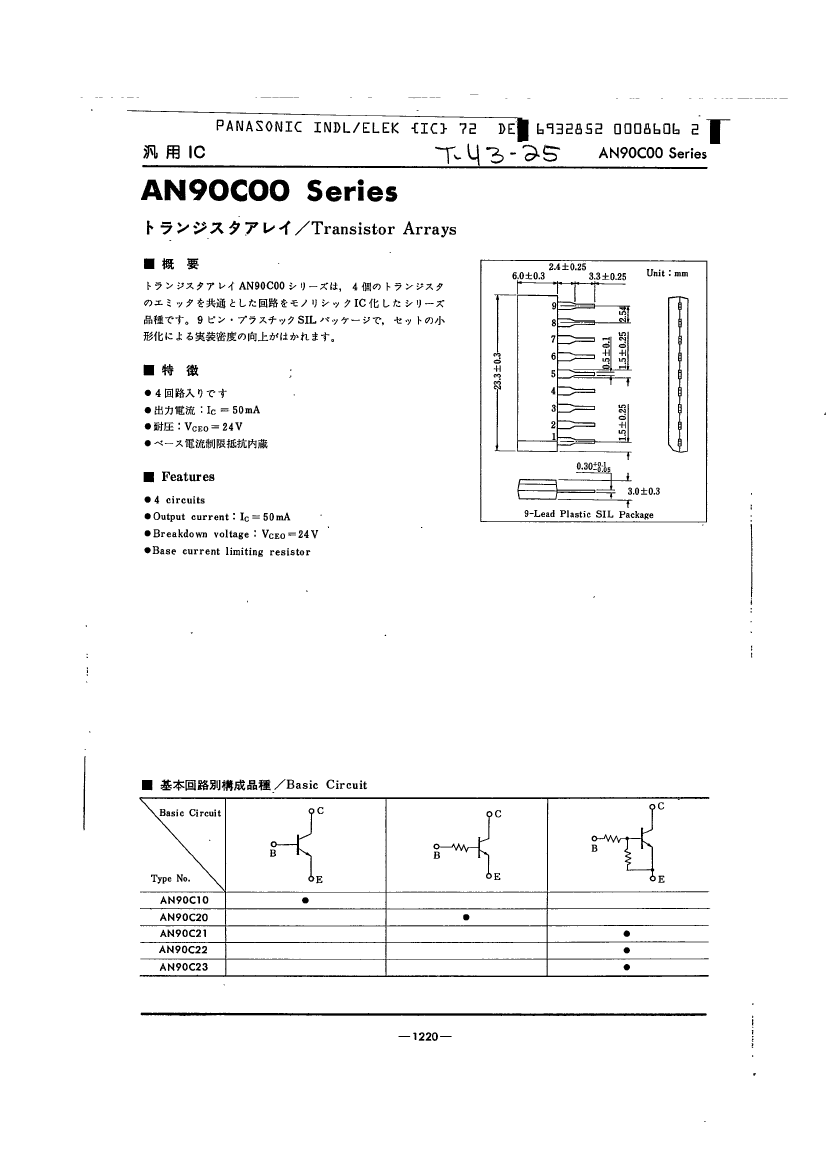

AN90C20 Overview

TRANSISTOR ARRAYS

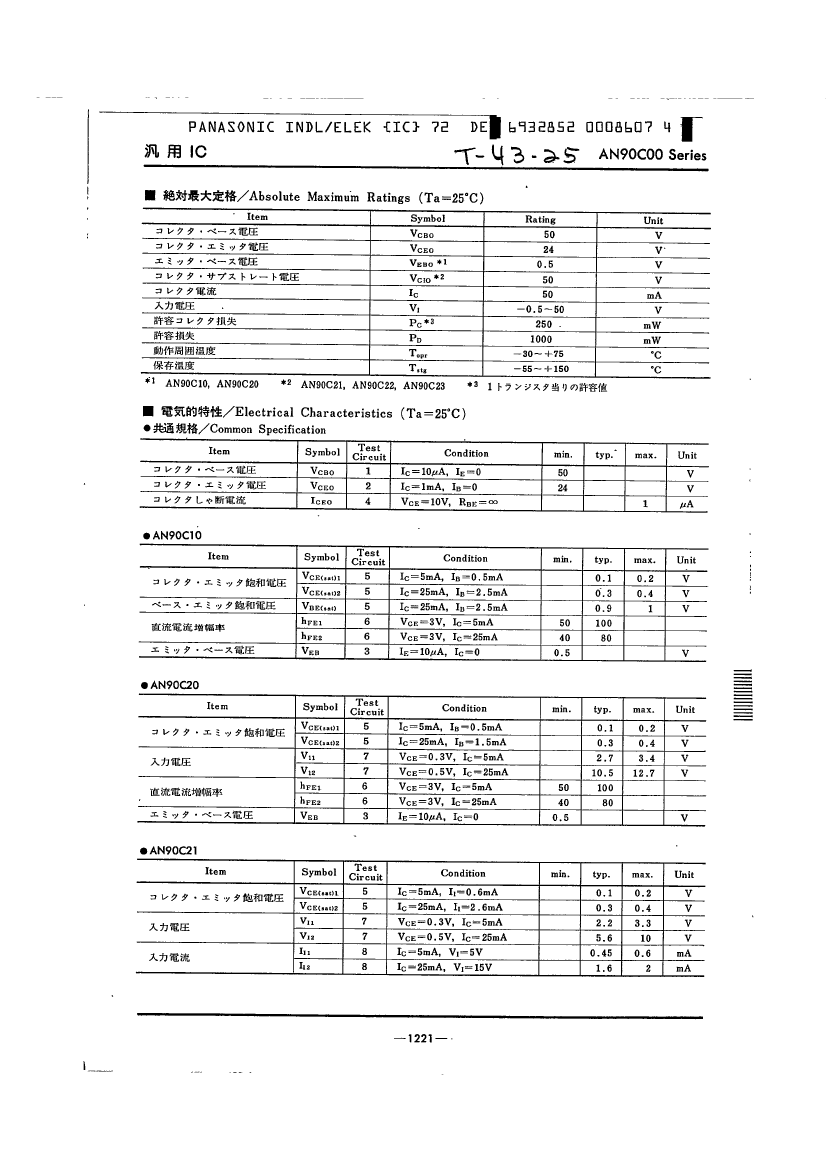

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	IN-LINE, R-PSIP-T9
Contacts	9
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.05 A
Collector-emitter maximum voltage	24 V
Configuration	COMMON EMITTER, 4 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	40
JESD-30 code	R-PSIP-T9
JESD-609 code	e0
Number of components	4
Number of terminals	9
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Base Number Matches	1

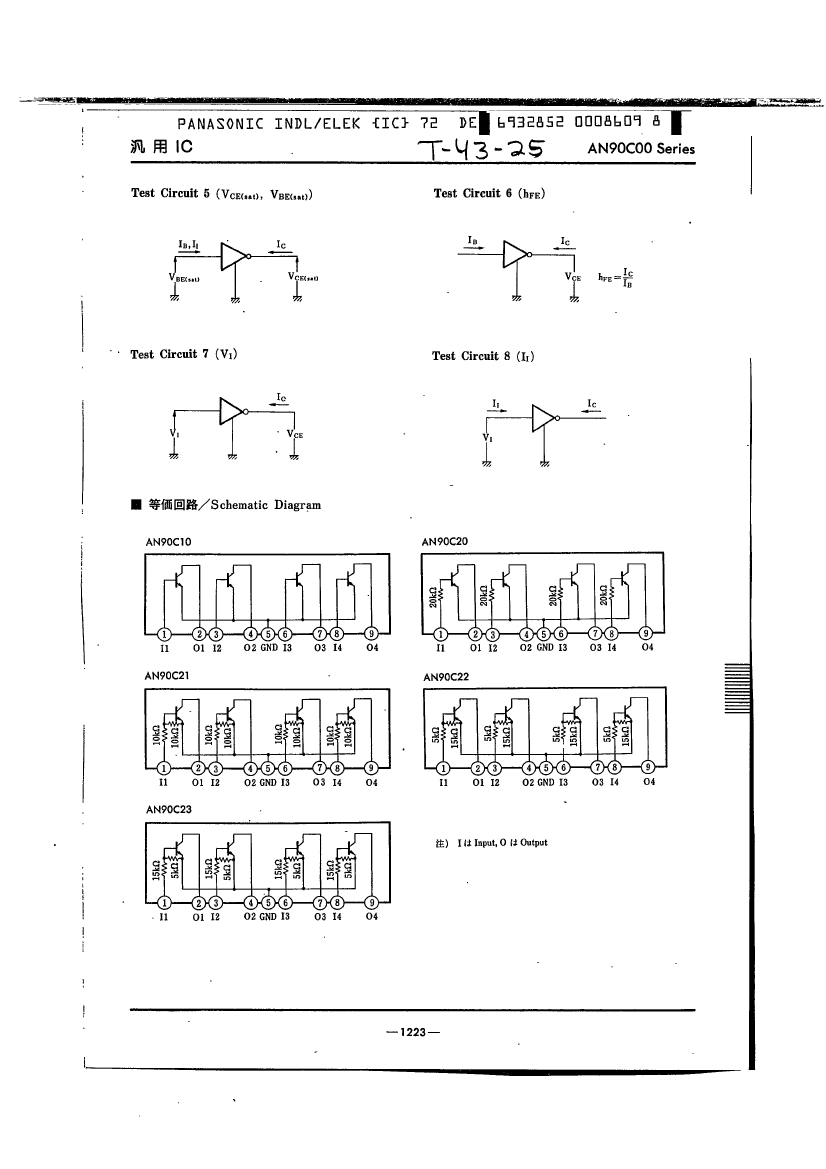

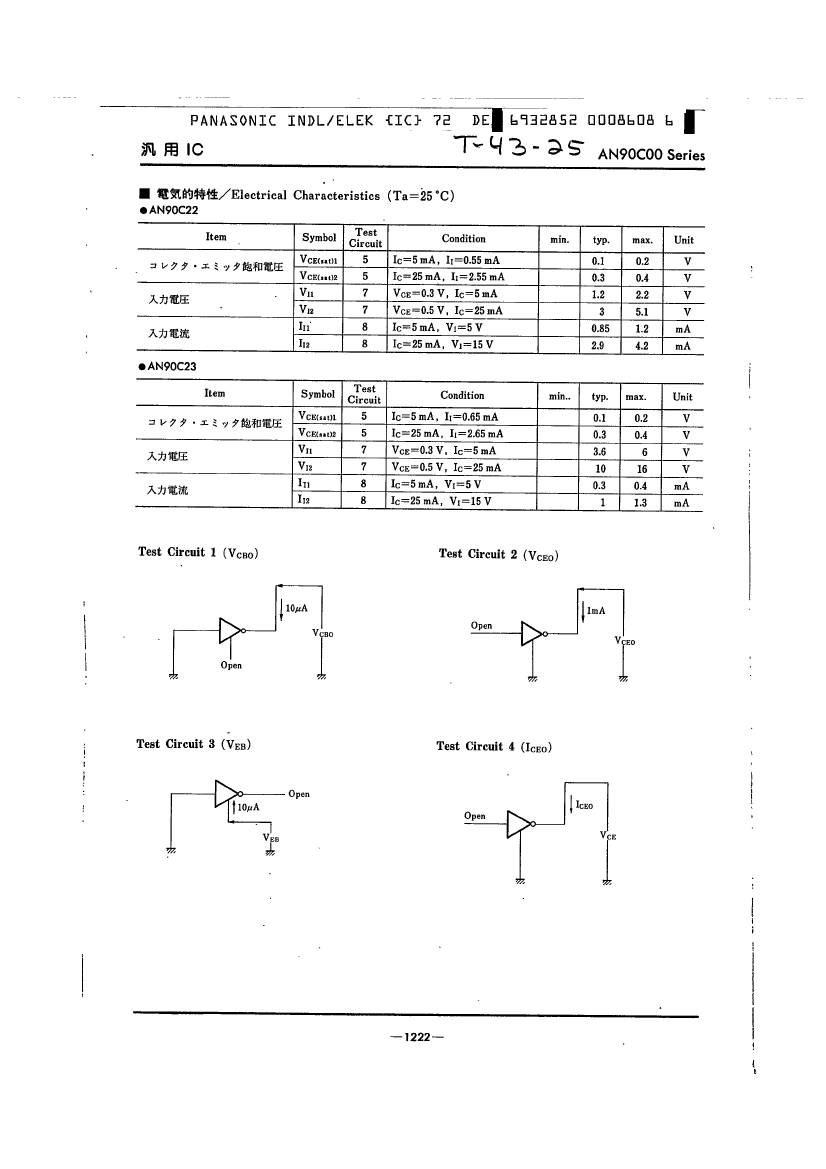

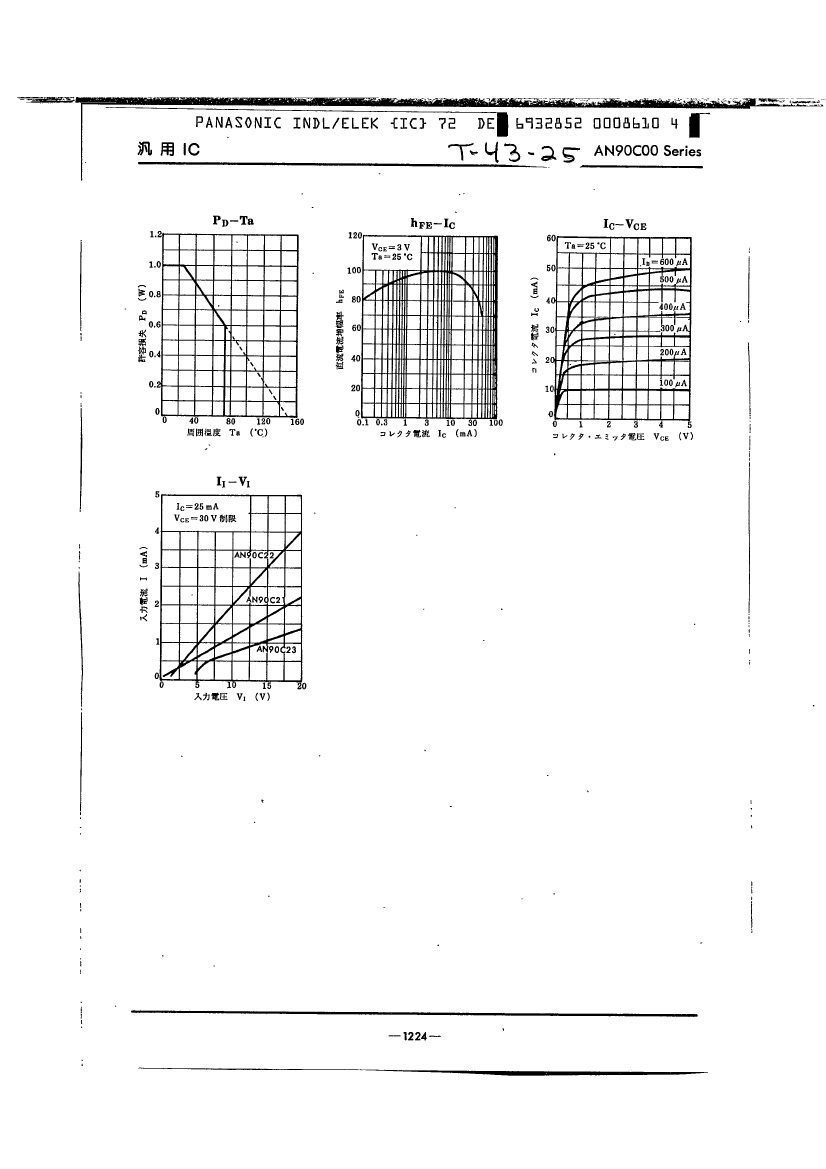

	AN90C20	AN90C00	AN90C10	AN90C21	AN90C22	AN90C23
Description	TRANSISTOR ARRAYS	TRANSISTOR ARRAYS	TRANSISTOR ARRAYS	TRANSISTOR ARRAYS	TRANSISTOR ARRAYS	TRANSISTOR ARRAYS
package instruction	IN-LINE, R-PSIP-T9	-	IN-LINE, R-PSIP-T9	IN-LINE, R-PSIP-T9	IN-LINE, R-PSIP-T9	IN-LINE, R-PSIP-T9
Contacts	9	-	9	9	9	9
Reach Compliance Code	unknow	-	unknow	unknow	unknow	unknow
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.05 A	-	0.05 A	0.05 A	0.05 A	0.05 A
Collector-emitter maximum voltage	24 V	-	24 V	24 V	24 V	24 V
Configuration	COMMON EMITTER, 4 ELEMENTS WITH BUILT-IN RESISTOR	-	COMMON EMITTER, 4 ELEMENTS	COMMON EMITTER, 4 ELEMENTS WITH BUILT-IN RESISTOR	COMMON EMITTER, 4 ELEMENTS WITH BUILT-IN RESISTOR	COMMON EMITTER, 4 ELEMENTS WITH BUILT-IN RESISTOR
JESD-30 code	R-PSIP-T9	-	R-PSIP-T9	R-PSIP-T9	R-PSIP-T9	R-PSIP-T9
Number of components	4	-	4	4	4	4
Number of terminals	9	-	9	9	9	9
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Polarity/channel type	NPN	-	NPN	NPN	NPN	NPN
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	-	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE
Transistor component materials	SILICON	-	SILICON	SILICON	SILICON	SILICON
