PC8341A-12C: Description12 Amp Subminature PCB Power Relay; File Size175KB，2 Pages; ManufacturerPicker Components; Websitehttp://www.pickercomponents.com/

Download Datasheet Compare View All

PC8341A-12C Overview

12 Amp Subminature PCB Power Relay

Preview

Download Datasheet

View All

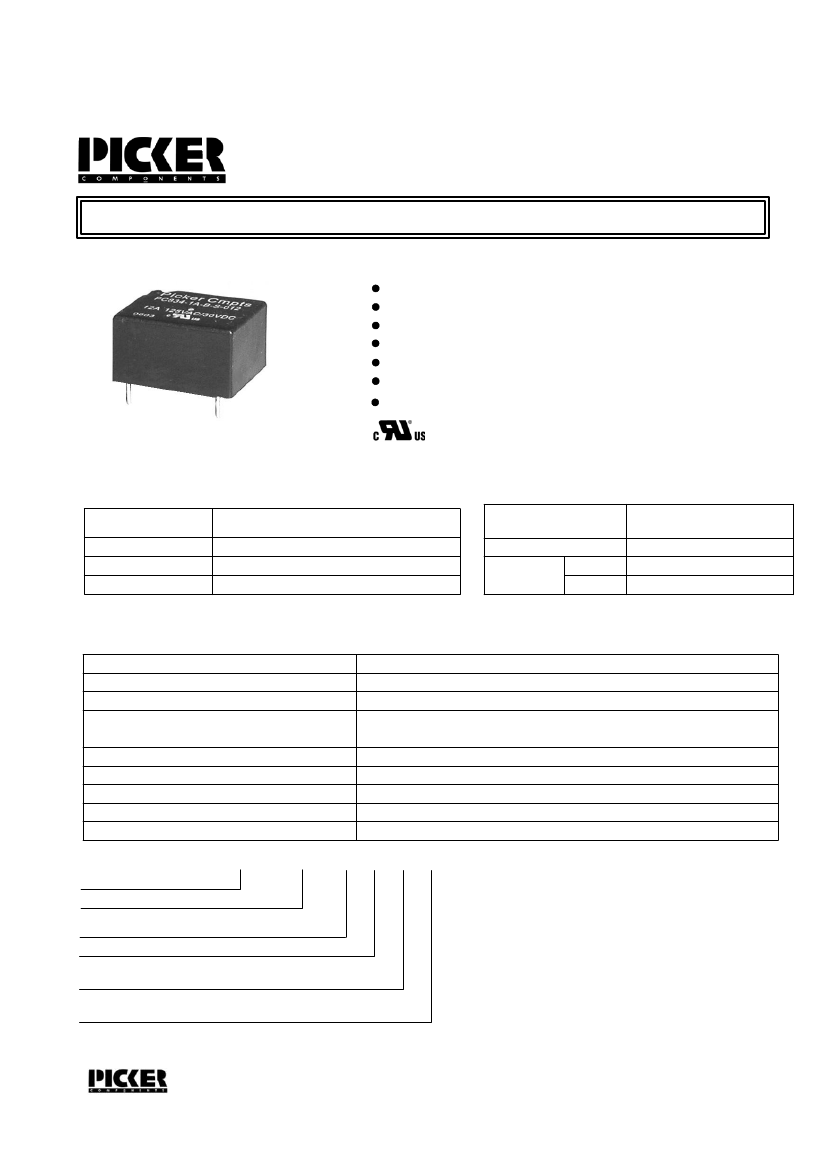

12 Amp Subminature PCB Power Relay

PC834

FEATURES

12 Amp continous contact capacity

1 Form A contact form

Smallest 12 Amp relay

Class "B" insulation standard

Class "F" insulation available

2.5 Kv dielectric between coil and contacts

Sealed, immersion cleanable

File # E86876

UL/CSA RATINGS

Load Type

General Use

Resistive

All Forms

All Contacts

12 Amps @ 125 VAC, 10 Amps @ 277 VAC @ 30 VDC

5 Amps @ 125 VAC

CONTACT DATA

Material

Initial Contact Resistance

Service Life

Mechanical

Electrical

AgCdO (Silver Cadmium Oxide)

AgSnO (Silver Tin Oxide)

100 milliohms max @ 0.1A, 6VDC

1 X 10

Operations

1 X 10

Operations

CHARACTERISTICS

Operate Time

Release Time

Insulation Resistance

Dielectric Strength

Shock Resistance

Vibration Resistance

Power Consumption

Ambient Temperature Range

Weight

10 ms. Max.

4 ms. Max.

100 megohms min, at 500VDC, 50%RH

2500 Vrms, 1 min. between coil and contacts

1000 Vrms, 1 min. between open contacts

10 g, 11ms, functional; 100 g, destructive

DA 1.5 mm, 10 - 55 Hz

.45W

-40 to 70 C operating for class B, -40 to 130 C storage

7 grams approx.

ORDERING INFORMATION

Example:

Model

Contact Form

Coil Voltage

Enclosure

S: Sealed; C: Flux Free

Insulation System

Nil: Class B (125 degrees C), F: Class F (155 degrees C)

PC834

-1A

-12

3220 Commander Drive, Suite 102, Carrollton, Texas 75006

Sales: Call Toll Free (888)997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com

PC834 Rev B 4-5-04

PAGE 1
