Multilayer Ferrite Power Beads

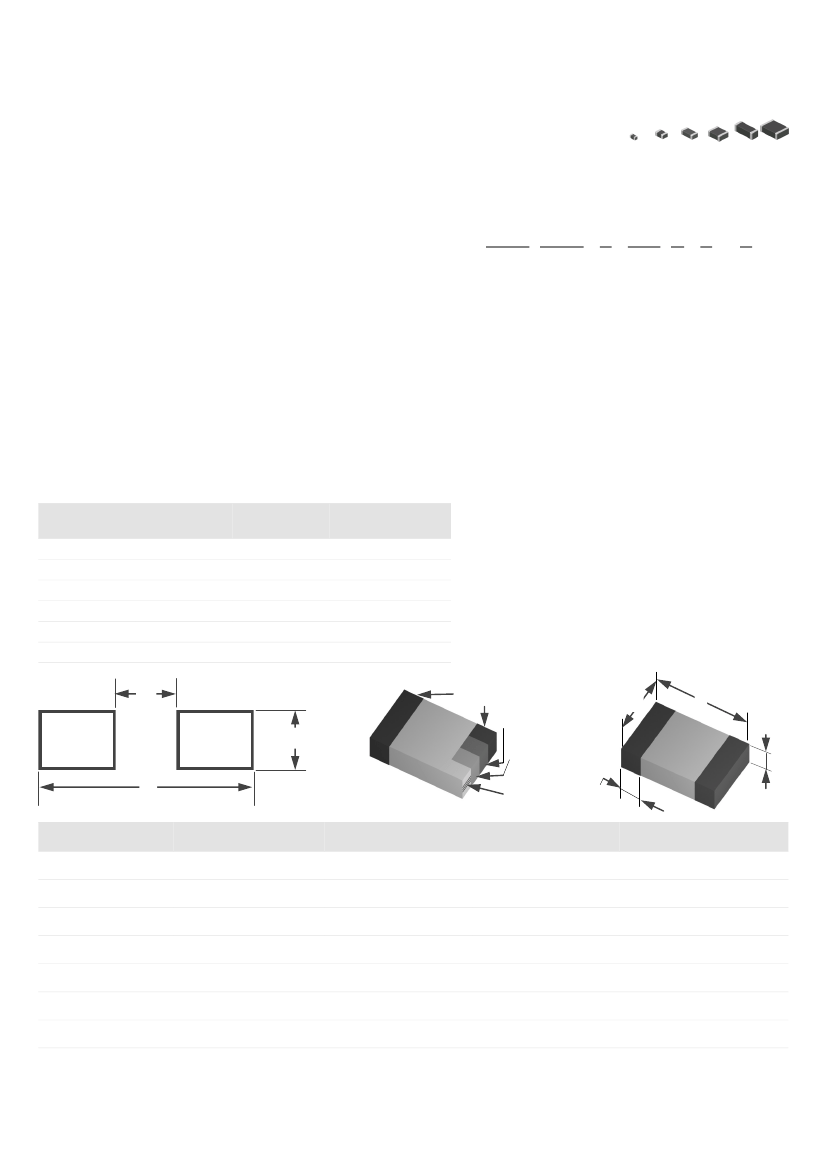

Features
Monolithic structure for closed magnetic path and high reliability
Maximum permissible currents up to 4A
Standard EIA/EIAJ chip sizes such as 0603/1608, 0805/2012, and
1206/3216
Superior termination bonding strength
Nickel barrier with solder overplated termination offering excellent
solderability and solder leach resistance, suitable for both wave and
reflow soldering processes
RoHS compliant when -T option is specified
Operating Temperature
-55º — +125º
C
C
Product Identification
MCP 0805 F 600 P T - T
(1) (2) (3) (4) (5) (6) (7)
(1)
(2)
(3)
(4)
(5)
(6)
Series code:
MCP: Multilayer Ferrite Power Bead
Dimensions: L x W inches
The first two digits: L (length)
The last two digits: W (width)
Characteristic code: F
Value code: Impedance (ohms at 100 MHz)
The first two digits are significant. The last
digit specifies the number of zeros to follow.
Tolerance code:
P= ±
25%
Other tolerances may be available upon request.
Package code:
T = Tape & Reel
B = Bulk
Termination type code:
T = 100% Sn plating
Applications
Noise suppression in computers and peripherals
Noise suppression in telecommunications
Noise suppression in data communications
Noise suppression in consumer electronics
Recommended PC Board Land Patterns
CHIP SIZE
EIA/EIAJ
0603(1608)
0805(2012)
1206(3216)
1210(3225)
1806(4516)
1812(4532)
L
INCH (mm)
0.102 (2.60)
0.118 (3.00)
0.173 (4.40)
0.173 (4.40)
0.217 (5.50)
0.217 (5.50)
G
INCH (mm)
0.022 (0.55)
0.026 (0.66)
0.059 (1.50)
0.059 (1.50)
0.110 (2.80)
0.110 (2.80)
H
INCH (mm)
0.037 (0.94)
0.057 (1.45)
0.071 (1.80)
0.106 (2.70)
0.071 (1.80)
0.134 (3.40)
(7)
Shape and Dimensions
G
H
SOLDER
W
NICKEL
SILVER
METALLIZATION
L
T
L
CHIP SIZE
EIA/EIAJ
0603/1608
0805/2012
1206/3216
1210/3225
1806/4516
1812/4532
ELECTRODE
BW
LENGTH (L)
INCH
(mm)
0.063 ± 0.006
(1.60 ± 0.15)
0.079 ± 0.008
(2.00 ± 0.20)
0.126 ± 0.008
(3.20 ± 0.20)
0.126 ± 0.008
(3.20 ± 0.20)
0.177 ± 0.010
(4.50 ± 0.25)
0.177 ± 0.010
(4.50 ± 0.25)
WIDTH (W)
INCH
(mm)
0.031 ± 0.006
(0.80 ± 0.15)
0.049 ± 0.008
(1.25 ± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
0.098 ± 0.008
(2.50 ± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
0.126 ± 0.008
(3.20 ± 0.20)
THICKNESS (T)
INCH
(mm)
0.031 ± 0.006
(0.80 ± 0.15)
0.035 ± 0.008
(0.90 ± 0.20)
0.043 ± 0.008
(1.10 ± 0.20)
0.051 ± 0.008
(1.30 ± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
0.059 ± 0.008
(1.50 ± 0.20)
TERMINATION (BW)
INCH
(mm)
0.014 ± 0.006
(0.36 ± 0.15)
0.020 ± 0.012
(0.51 ± 0.30)
0.020 ± 0.012
(0.51 ± 0.30)
0.020 ± 0.012
(0.51 ± 0.30)
0.020 ± 0.012
(0.51 ± 0.30)
0.020 ± 0.012
(0.51 ± 0.30)
Other sizes and values may be available upon customer’s request.
12
458 Shenhu Road, Suzhou Industrial Park Jiangsu, P.R. China
www.aemchina.com
Phone: 86-512-62580028, Fax: 86-512-62580018
AEM Components Co., Ltd
MCP Series (High Current)
AEM Part
Number
MCP0603F300
MCP0603F600
MCP0603F800
MCP0603F121
MCP0603F181
MCP0603F221
MCP0603F301
MCP0603F601
MCP0805F300
MCP0805F500
MCP0805F600
MCP0805F800
MCP0805F121
MCP0805F151
MCP0805F221
MCP0805F301
MCP0805F601
MCP0805F102
MCP1206F190
MCP1206F300
MCP1206F500
MCP1206F800
MCP1206F101
MCP1206F121
Z@100MHz
Tolerance
Max. R
DC
Max. I
A
3.0
3.0
3.0
2.0
2.0
2.0
2.0
1.0
4.0
3.0
3.0
3.0
3.0
3.0
3.0
2.0
2.0
1.0
4.0
4.0
4.0
3.0
2.5
2.5
30
60
80
120
180
220
300
600
30
50
60
80
120
150
220
300
600
1000
19
30
50
80
100
120
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
0.030
0.040
0.040
0.100
0.100
0.100
0.100
0.200
0.015
0.040
0.040
0.040
0.040
0.050
0.050
0.100
0.100
0.150
0.020
0.020
0.020
0.040
0.060
0.060
13
458 Shenhu Road, Suzhou Industrial Park Jiangsu, P.R. China
www.aemchina.com
Phone: 86-512-62580028, Fax: 86-512-62580018
AEM Components Co., Ltd
MCP Series (High Current)
AEM Part
Number
MCP1206F221
MCP1206F301
MCP1206F601
MCP1206F102
Z@100MHz
Tolerance
P
P
P
P
Max. R
DC
Max. I
A
2.0
2.0
2.0
1.0
220
300
600
1000
0.080
0.080
0.100
0.200
Definition of rated current: When the rated current is applied to a power bead,
its temperature rise shall not exceed 20°
C.
Please add tolerance, packaging and termination type codes when ordering.
14
458 Shenhu Road, Suzhou Industrial Park Jiangsu, P.R. China
www.aemchina.com
Phone: 86-512-62580028, Fax: 86-512-62580018
AEM Components Co., Ltd

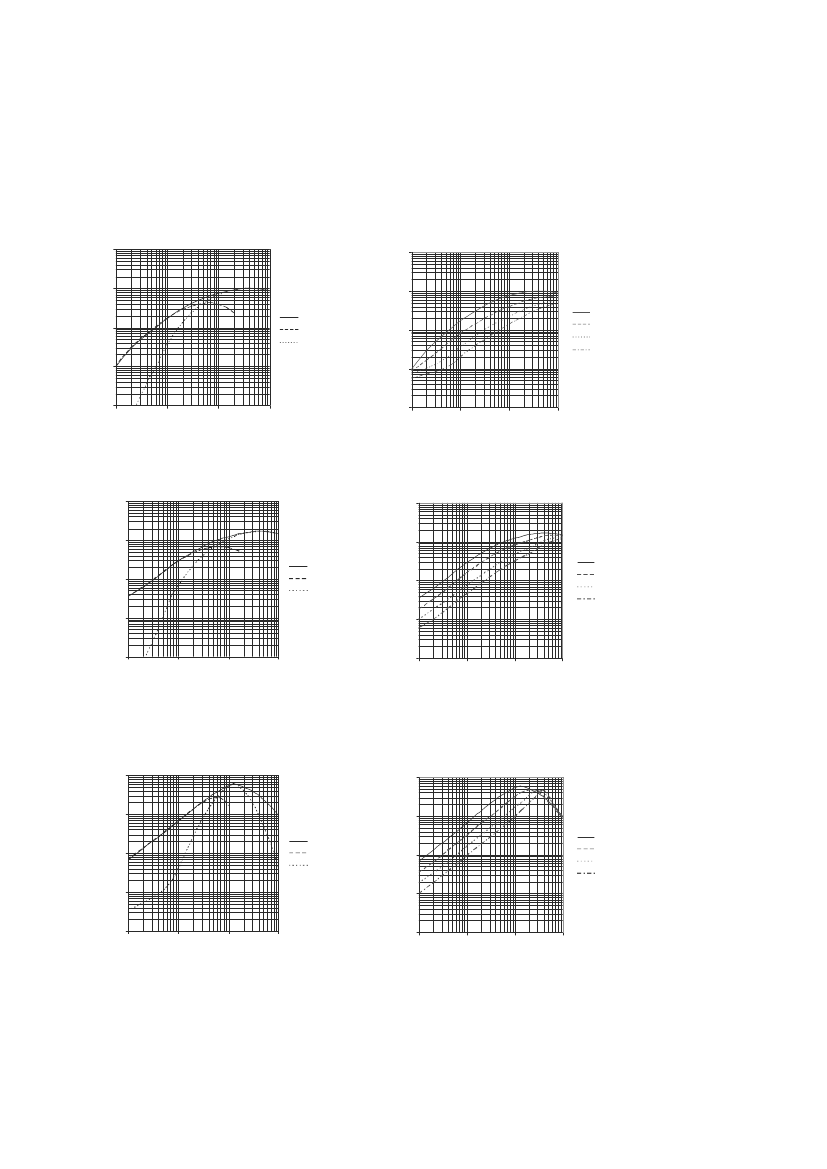

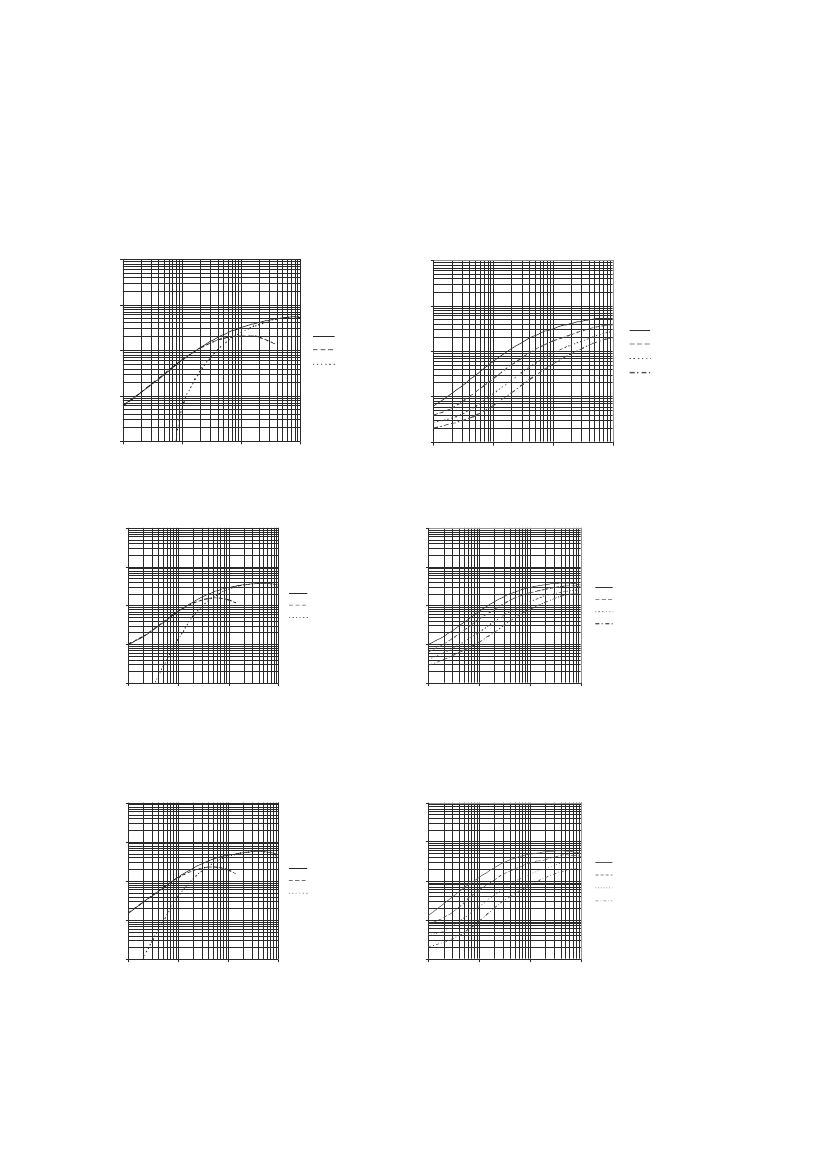

Electrical Characteristics
(Curves not listed are available upon request)
M CP 08 05F 300
1 000
100 0
M CP 08 05F 300
100
|Z |, X L , R ( O h m )
10 0
0 A
10
1 A
2 A
3 A
1
10
XL
R
1
0.1
1
10
100
100 0
|Z | ( O h m )
|Z |
0 .1
1
10
100
1 000
FR E Q U E NC Y (M H z )
F RE Q UE N CY (M H z)
M CP 12 06F 300
1 000
100 0
M CP 12 06F 300
100
|Z |, X L , R ( O h m )
10 0
0 A
10
1 A
2 A
3 A
1
10
XL
R
1
0.1
1
10
100
100 0
|Z | ( O h m )
|Z |
0 .1
1
10
100
1 000
F R EQ U E N C Y (M H z)
F RE Q UE N CY (M H z)
M CP 1206F 500
1 000
MCP1206F500
1000
100
|Z |, X L , R ( O h m )
100
|Z |
|Z| (Ohm)
0A
10
1A
2A
3A
1
10
XL
R
1
0.1
1
10
100
100 0
0.1
1
10
100
1000
FR E Q U E NC Y (M H z )
FREQUENCY (MHz)
15
458 Shenhu Road, Suzhou Industrial Park Jiangsu, P.R. China
www.aemchina.com
Phone: 86-512-62580028, Fax: 86-512-62580018
Electrical Characteristics
