DTA114EXV3TD: DescriptionDigital Transistors (BRT); File Size124KB，10 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Compare View All

DTA114EXV3TD Overview

Digital Transistors (BRT)

Preview

Download Datasheet

View All

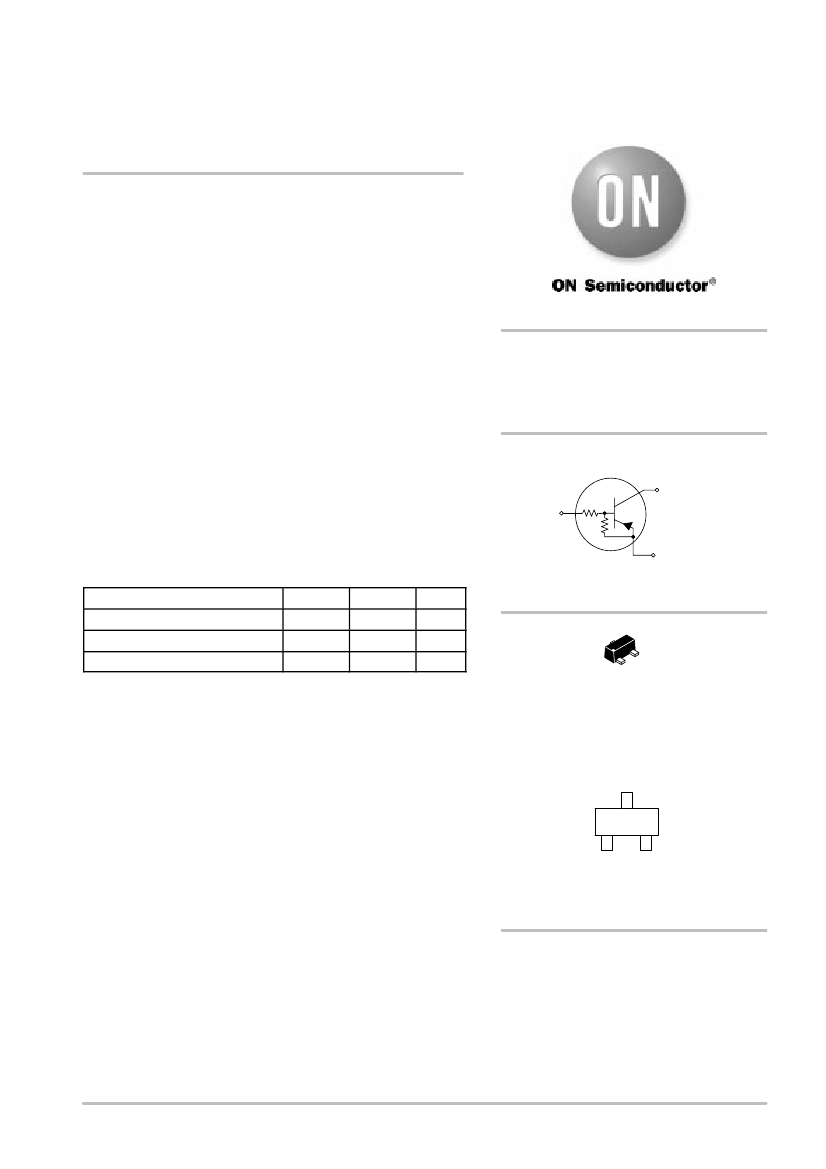

DTA114EXV3T1 Series

Preferred Devices

Digital Transistors (BRT)

PNP Silicon Surface Mount Transistors

with Monolithic Bias Resistor Network

This new series of digital transistors is designed to replace a single

device and its external resistor bias network. The digital transistor

contains a single transistor with a monolithic bias network consisting

of two resistors; a series base resistor and a base−emitter resistor. The

digital transistor eliminates these individual components by

integrating them into a single device. The use of a digital transistor can

reduce both system cost and board space. The device is housed in the

SC−89 package which is designed for low power surface mount

applications.

http://onsemi.com

PNP SILICON

DIGITAL

TRANSISTORS

•

Simplifies Circuit Design

Reduces Board Space

Reduces Component Count

Available in 8 mm, 7 inch/3000 Unit Tape & Reel

Lead−Free Plating (Pure Sn)

PIN 1

BASE

(INPUT)

PIN 3

COLLECTOR

(OUTPUT)

PIN 2

EMITTER

(GROUND)

MAXIMUM RATINGS

= 25°C unless otherwise noted)

Rating

Collector-Base Voltage

Collector-Emitter Voltage

Collector Current

Symbol

CBO

CEO

Value

100

Unit

Vdc

mAdc

SC−89

CASE 463C

STYLE 1

MARKING DIAGRAM

xx D

xx = Specific Device Code

(See Marking Table on page 2)

D = Date Code

Preferred

devices are recommended choices for future use

and best overall value.

Semiconductor Components Industries, LLC, 2004

January, 2004 − Rev. 0

Publication Order Number:

DTA114EXV3T1/D

DTA114EXV3TD Related Products

	DTA114EXV3TD	DTA114EXV3T1	DTA124EXV3T1	DTA144EXV3T1	DTA144WXV3T1	DTA143XXV3T1	DTA143TXV3T1	DTA114YXV3T1	DTA114TXV3T1
Description	Digital Transistors (BRT)	Digital Transistors (BRT)	Digital Transistors (BRT)	Digital Transistors (BRT)	Digital Transistors (BRT)	Digital Transistors (BRT)	Digital Transistors (BRT)	Digital Transistors (BRT)	Digital Transistors (BRT)
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	-	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor
Parts packaging code	-	SC-89	SC-89	SC-89	SC-89	SC-89	SC-89	SC-89	SC-89
package instruction	-	LEAD FREE, CASE 463C-03, SC-89, 3 PIN	LEAD FREE, CASE 463C-03, SC-89, 3 PIN	LEAD FREE, CASE 463C-03, SC-89, 3 PIN	LEAD FREE, CASE 463C-03, SC-89, 3 PIN	LEAD FREE, CASE 463C-03, SC-89, 3 PIN	LEAD FREE, CASE 463C-03, SC-89, 3 PIN	LEAD FREE, CASE 463C-03, SC-89, 3 PIN	LEAD FREE, CASE 463C-03, SC-89, 3 PIN
Contacts	-	3	3	3	3	3	3	3	3
Manufacturer packaging code	-	CASE 463C-03	CASE 463C-03	CASE 463C-03	CASE 463C-03	CASE 463C-03	CASE 463C-03	CASE 463C-03	CASE 463C-03
Reach Compliance Code	-	unknow	compli	unknow	compli	compli	compli	compli	unknow
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	-	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 0.47	BUILT-IN BIAS RESISTOR RATIO IS 2.13	BUILT-IN BIAS RESISTOR	BUILT-IN BIAS RESISTOR RATIO IS 4.7	BUILT-IN BIAS RESISTOR
Maximum collector current (IC)	-	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Collector-emitter maximum voltage	-	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V
Configuration	-	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	-	35	60	80	80	20	160	80	160
JESD-30 code	-	R-PDSO-F3	R-PDSO-F3	R-PDSO-F3	R-PDSO-F3	R-PDSO-F3	R-PDSO-F3	R-PDSO-F3	R-PDSO-F3
JESD-609 code	-	e3	e3	e3	e3	e3	e3	e3	e3
Humidity sensitivity level	-	1	1	1	1	1	1	1	1
Number of components	-	1	1	1	1	1	1	1	1
Number of terminals	-	3	3	3	3	3	3	3	3
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	-	260	260	260	260	260	260	260	260
Polarity/channel type	-	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	-	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	-	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	-	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal form	-	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	-	40	40	40	40	40	40	40	40
transistor applications	-	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	-	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
