EEC-S5R5H474N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> EEC-S5R5H474N

EEC-S5R5H474N: DescriptionSupercapacitors / Ultracapacitors 5.5VDC 0.47F 19mm Coin; CategoryPassive components; File Size98KB，1 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

EEC-S5R5H474N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EEC-S5R5H474N	-	-	View	Buy Now

EEC-S5R5H474N Overview

Supercapacitors / Ultracapacitors 5.5VDC 0.47F 19mm Coin

EEC-S5R5H474N Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Panasonic
Product Category	Supercapacitors / Ultracapacitors
RoHS	Details
Termination Style	Radial
Capacitance	470000 uF
Voltage Rating DC	5.5 VDC
Tolerance	- 20 %, + 80 %
Operating Temperature Range	- 40 C to + 70 C
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 70 C
Length	6.5 mm
Diameter	19 mm
Orientation	Horizontal
Product	Supercapacitors
Voltage Rating	5.5 V
Capacitance - uF	470000 uF
Lead Spacing	20 mm
Factory Pack Quantity	100

Preview

Download Datasheet

View All

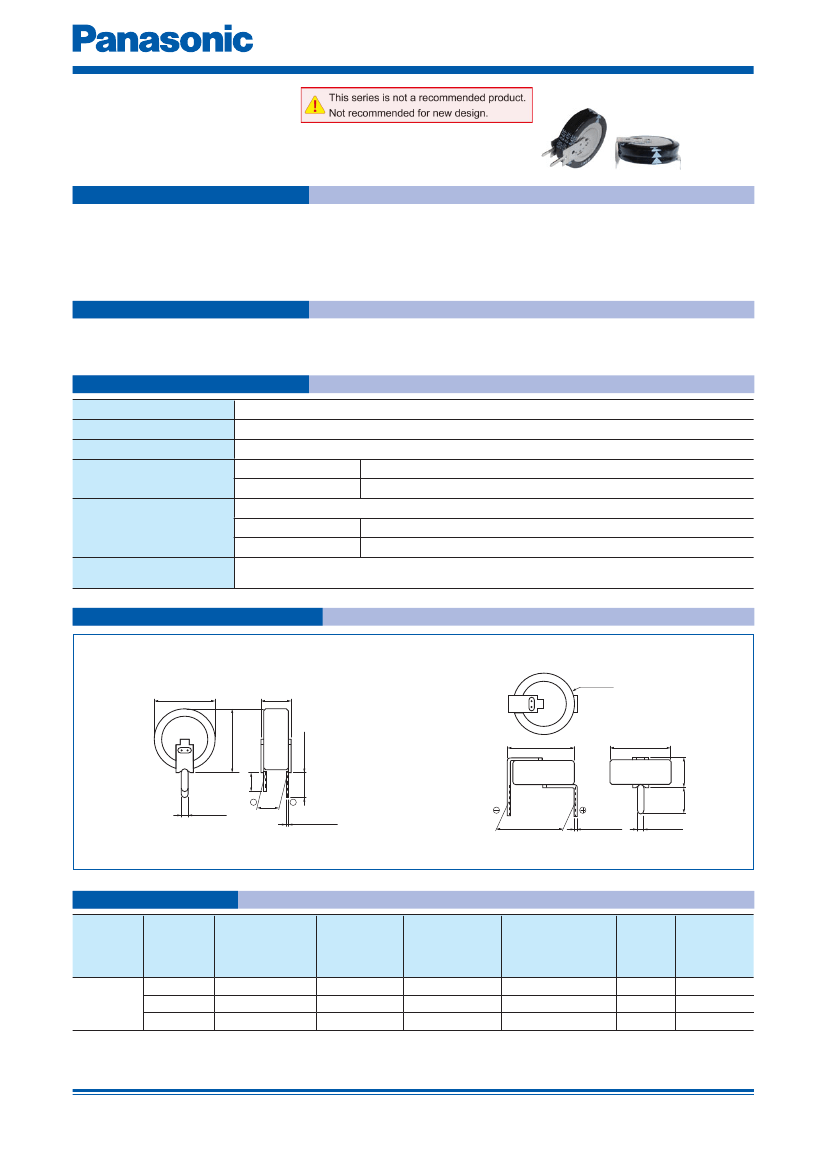

Electric Double Layer Capacitors (Gold Capacitor)

Stacked Coin Type

Series :

Low temperature assured product

Features

●

Endurance

: +70 °C 1000 h

●

Category temperature range : –40 °C to +70 °C

●

Maximum height of 6.5 mm (H Terminal)

●

RoHS compliant

Recommended applications

●

Memory

back-up for video and audio equipment, cameras, telephones, printers, data terminals,

rice cookers and intelligent remote controls

Specifications

Category temp. range

Maximum operating voltage

Nominal cap.range

Characteristics at

low temperature

Endurance

Internal resistance

–40 °C to +70 °C

5.5 V.DC

0.47 F to 1.5 F

Capacitance change ±30 % of initial measured value at +20 °C (at –40 °C)

7 times of initial measured value at +20 °C (at –40 °C)

After 1000 hours application of 5.5 V.DC at +70 °C, the capacitor shall meet the following limits.

Capacitance change ±30 % of initial measured value

Internal resistance

4 times of initial speciﬁed value

After 1000 hours storage at +70 °C without load, the capacitor shall meet the speciﬁed

limits for Endurance.

Shelf life

Dimensions in mm(not to scale)

Terminal: V

Terminal: H

Sleeve

f19.0±0.3

21.0 max.

5.5±0.5

5.0±0.3

20.5 max.

f19.0±0.3

3.5±0.3 6.5 max.

4.0±0.3

–

1.0±0.1

20.0±0.5

0.2±0.05

5.0±0.5 0.20±0.05

1.0±0.1

(Unit : mm)

Characteristics list

Maximum

operating Capacitance

voltage

(F)

(V.DC)

0.47

5.5

1.0

1.5

Capacitance

tolerance

(F)

0.376 to 1.41

0.80 to 1.80

1.20 to 2.70

Internal resistance Recommended

(Initial speciﬁed value)

discharge current

(Ω) at 1kHz

(mA)

1 or less

Min.

Mass

packaging

(Reference value)

Part number

q’ty

(g)

(pcs)

EECS5R5( )474N

4.1

100

EECS5R5( )105N

4.1

100

EECS5R5( )155N

4.2

100

( ) Please use V or H, to indicate the terminal style.

Note : Do not use reﬂow soldering. (IR, Atmosphere heating methods, etc.)

Please refer to the page of “Application guidelines”.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Jan. 2016
