5943000221: DescriptionFerrite Toroids / Ferrite Rings 43 TOROID (10.2/4.10/3.80)mm; CategoryPassive components; File Size363KB，4 Pages; ManufacturerFair Rite

Download Datasheet Parametric View All

5943000221 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5943000221	-	-	View	Buy Now

5943000221 Overview

Ferrite Toroids / Ferrite Rings 43 TOROID (10.2/4.10/3.80)mm

5943000221 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Fair Rite
Product Category	Ferrite Toroids / Ferrite Rings
RoHS	Details
Product	Toroids
Inside Diameter	4.1 mm
Outside Diameter	10.2 mm
Outside Height	3.8 mm
Packaging	Bulk
Core Material	43
Inductance	350 nH
Type	Ring Core
Test Frequency	10 kHz
Unit Weight	0.029277 oz

Preview

Download Datasheet

View All

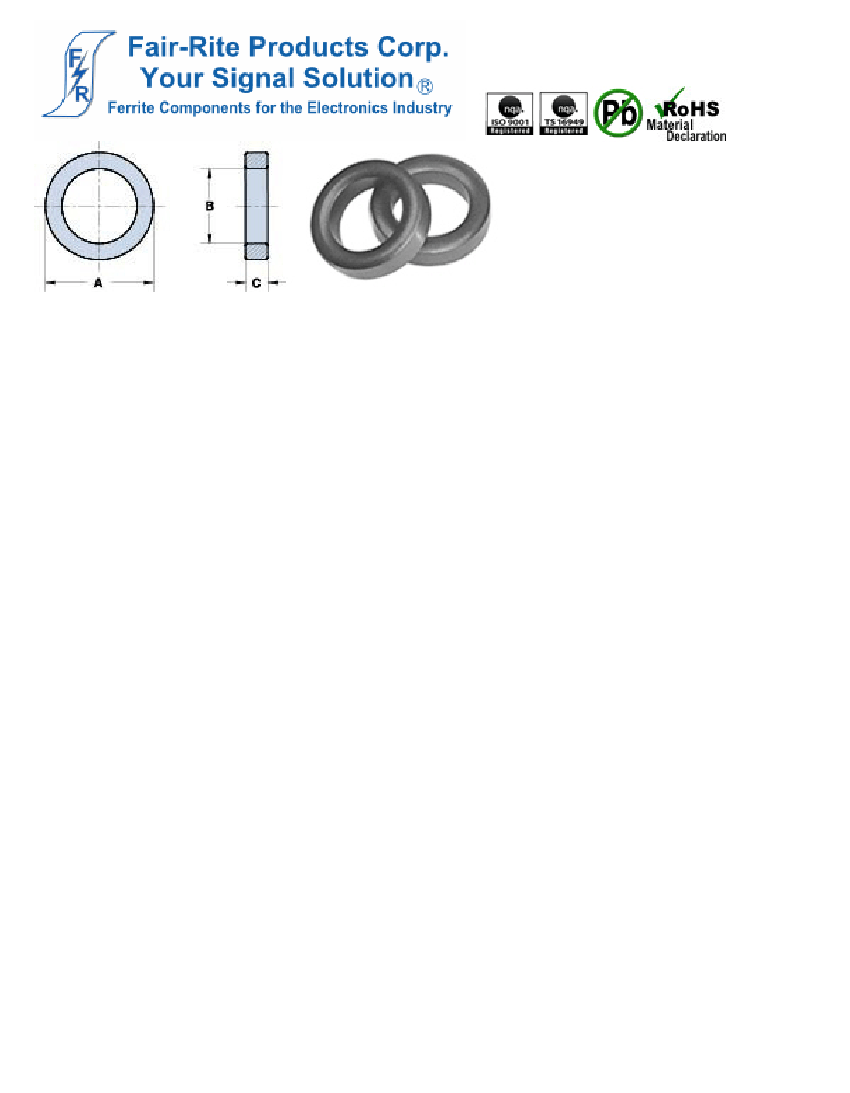

Fair-Rite Product's Catalog

Part Data Sheet, 5943000221

Printed: 2013-07-03

Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288

Phone: (888) 324-7748 www.fair-rite.com

Part Number:

5943000221

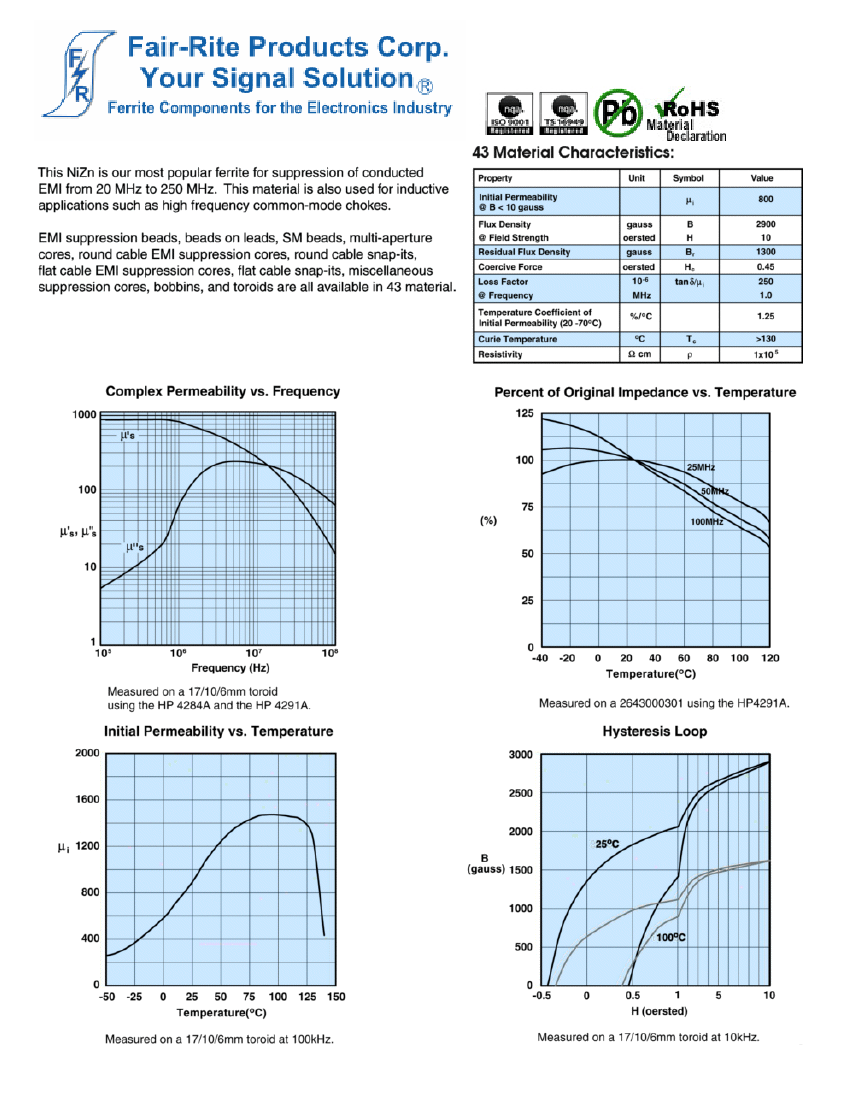

Frequency Range: Low-Medium Permeability, 43 (ui=800) material

Description:

Application:

Where Used:

Part Type:

43 TOROID PLASTIC COATED

Inductive Components

Closed Magnetic Circuit

Toroids

Mechanical Specifications

Weight:

.830

(g)

Part Type Information

A ring configuration provides the ultimate utilization of the intrinsic ferrite material properties. Toroidal cores are

used in a wide variety of applications such as power input filters, ground-fault interrupters, common-mode filters and

in pulse and broadband transformers.

-Toroids are listed by initial permeability classes and increasing dimension of the inside diameter.

-All toroidal cores are supplied burnished to break sharp edges.

-Toroids are tested for AL values at 10 kHz.

-Toroids with an outside diameter of 9.5mm (.375'') or smaller can be supplied Parylene C coated. The Parylene coating will

increase the 'A' and 'C' dimensions and decrease the 'B' dimension a maximum of 0.038mm (.0015''). The ninth digit of a

Parylene coated toroid part number is a '1'. See the material characteristics of Parylene C in our online catalog.

-Toroids with an outside diameter of 9.5mm (.375'') or larger can be supplied with a uniform coating of thermo-set plastic

coating. This coating will increase the 'A' and 'C' dimensions and decrease the 'B' dimension a maximum of 0.5mm (.020'').

The 9th digit of the thermo-set plastic coated toroid part number is a '2'. Thermo-set plastic coating is RoHS compliant.

-Thermo-set plastic coated parts can withstand a minimum breakdown voltage of 1000 Vrms, uniformly applied across the 'C'

dimension of the toroid.

-The ''C'' dimension may be modified to suit specific applications.

-For any toroidal core requirement not listed in the catalog, please contact our customer service department for

availability and pricing.

-Explaination of Part Numbers: Digits 1&2 = product class, 3&4 = material grade, 9th digit 1 = Parylene coating,

2 = thermo-set plastic coating.
