Type BLC Polypropylene Board Mount DC Link Capacitors
PCB Mount Power Film Capacitors
Type BLC series uses the most advanced
metallized lm technology for long life and high
reliability in DC Link applications. This series
combines high capacitance and very high ripple
current capability needed for today’s inverter
designs for medium power wind, solar, fuel cells,
UPS systems and more.
Highlights
Speci cations
Capacitance Range
Capacitance Tolerance
Rated Voltage
Operating Temperature Range
Maximum rms Current
Maximum rms Voltage
Test Voltage between Terminals @ 25 °C
Test Voltage between Terminals and Case @ 25°C
Life Test
Reference Standards
- High capacitance
- High ripple current
- Self-healing
8 to 55 µF
±5% standard
700 to 1100 Vdc
-45 °C to 85 °C (ambient)
see data tables
230 Vac
150% rated DC voltage for 10 s
2 kVac @ 50/60 Hz for 10 s
5000 h @ 85 °C, rated voltage
IEC 61071
RoHS Compliant

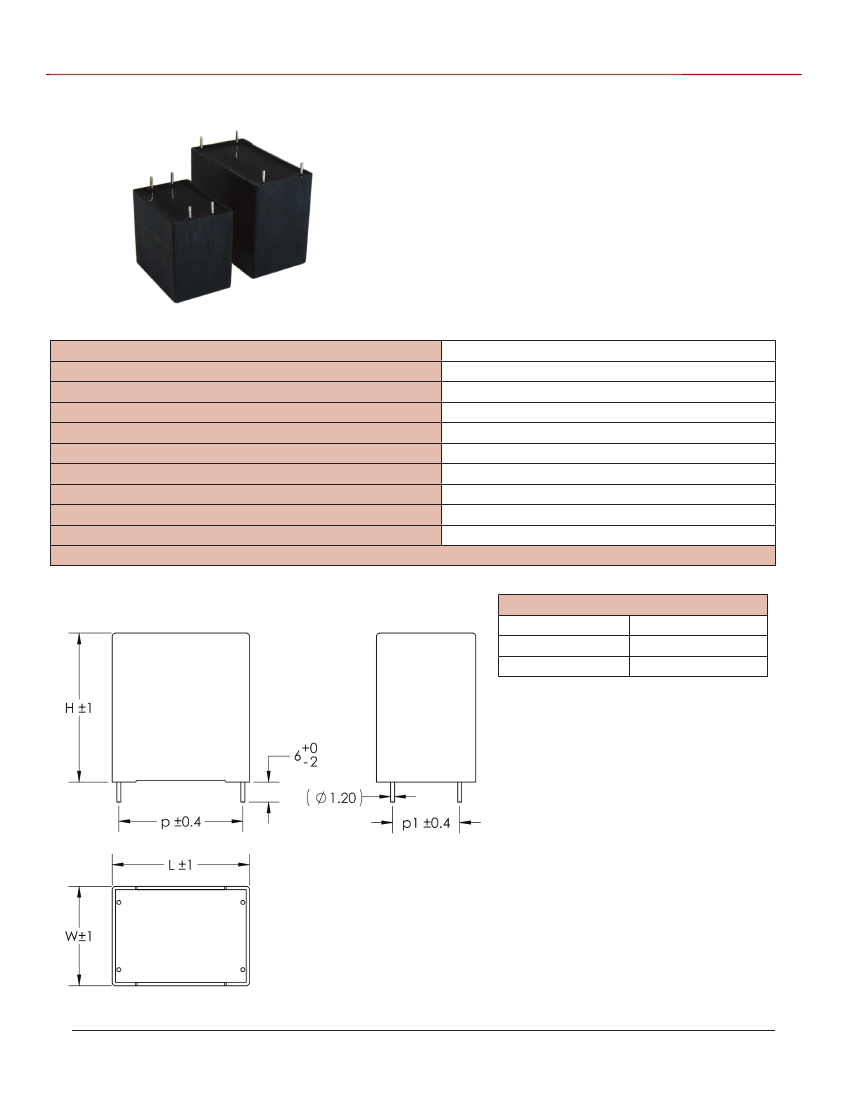

Dimensions
Construction Details
Case Material
Resin Material
Terminal Material
Plastic UL94V-0
Dry Resin UL94V-0
Tin Plated Copper
CDE Cornell Dubilier • 1605 East Rodney French Blvd • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type BLC Polypropylene Board Mount DC Link Capacitors
PCB Mount Power Film Capacitors
Part Numbering System
BLC
391
J
Type
BLC
Capacitance
080
= 8 µF
150
= 15 µF
300
= 30 µF
Tolerance
J
= ±5%
112
Voltage
701
= 700 Vdc
901
= 900 Vdc
112
= 1100 Vdc
B4
Case Type
B4
= Box 4 Lead
E
Case Code
Case Code
A
B
C
D
E
F
W
20
28
24
30
30
35
H
40
37
44
45
45
50
L
41.5
41.5
41.5
41.5
57.5
57.5
p
37.5
37.5
37.5
37.5
52.5
52.5
p1
10.2
10.2
10.2
20.3
20.3
20.3
d
1.2
1.2
1.2
1.2
1.2
1.2
Ratings
Typ
Cap
C
PartNumber
BLC150J701B4A
BLC200J701B4B
BLC220J701B4C
BLC300J701B4D
BLC450J701B4E
BLC550J701B4F
BLC120J901B4A
BLC140J901B4B
BLC160J901B4C
BLC200J901B4D
BLC300J901B4E
BLC400J901B4F
BLC080J112B4A
BLC100J112B4B
BLC120J112B4D
BLC200J112B4E
BLC250J112B4F
(µF)
15
20
22
30
45
55
12
14
16
20
30
40
8
10
12
20
25
10 kHz
ESR
(m )
5.2
3.9
3.6
2.6
3.6
2.9
5.2
4.5
3.9
3.1
4.3
3.2
6.5
5.2
4.3
5.3
4.2
Irms
(A)
21
25
27
33
31
36
21
23
26
30
29
35
19
22
25
26
30
Current
T
A
=25 °C T
A
=55 °C T
A
=75 °C
Irms
(A)
15
17
19
23
22
25
15
16
18
21
20
25
13
15
18
18
21
Irms
(A)
8
10
11
13
13
14
8
9
10
12
11
14
7
9
10
10
12
dV/dt
(V/µs)
700 Vdc
13.5
13.0
11.8
13.0
8.5
8.9
900 Vdc
15.8
16.4
15.6
16.0
10.8
10.7
1100 Vdc
20.0
20.0
19.2
13.0
13.2
160
200
230
260
330
10.0
11.4
10.0
8.0
8.0
15.8
14.0
11.7
9.3
8.0
6580
7467
8925
11325
13275
34.3
40.4
44.5
61.1
72.9
A
B
D
E
F
190
230
250
320
325
430
10.0
11.4
10.0
10.0
8.0
8.0
15.8
14.0
13.4
11.7
9.3
8.0
6580
7467
7756
8925
11325
13275
34.8
39.3
41.5
48.8
62.4
78.6
A
B
C
D
E
F
200
260
290
390
390
490
10.0
11.4
10.0
10.0
8.0
8.0
15.8
14.0
13.4
11.7
9.3
8.0
6580
7467
7756
8925
11325
13275
30.5
36.8
37.8
46.7
59.5
69.6
A
B
C
D
E
F
Peak
Current
I
pk
(A)
Thermal
Resistance
Θcc
(°C/W)
Θca
(°C/W)
Case
Area
(mm
2
)
Typical
Weight
(g)
Case
Code
CDE Cornell Dubilier • 1605 East Rodney French Blvd • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type BLC Polypropylene Board Mount DC Link Capacitors
PCB Mount Power Film Capacitors
Expected Lifetime Predictions
Capacitance: C (µF)
Equivalent Series Resistance: ESR (m )
Frequency: f (kHz)
Ripple Current: I (A
rms
)
Ambient Temperature: T
A
(°C)
Core Temperature: T
C
(°C)
Total Thermal Resistance: Θ (°C/W)
Thermal Resistance case-to-ambient: Θ
CA
(°C/W)
Thermal Resistance core-to-case: Θ
CC
(°C/W)
Air ow Speed: v (m/s)
Applied Voltage: V
A
(V
DC
)
Rated Voltage: V
R
(V
DC
)
Determine ESR at Operating Frequency
Use the 10 kHz ESR from the ratings tables.
For operation below 10 kHz, add the dielectric resistance: ESR + 31.83 / ( fC ).
Determine Thermal Resistance at Operating Frequency and Air Flow
Compute Θ = Θ
CC
+ Θ
CA
. In the ratings tables, Θ
CC
is for ≤10 kHz and Θ
CA
is for still air.
For frequency > 10 kHz multiply Θ
CC
by [1 + (f - 10) / 100]. For v = 0 to 5 m/s, multiply
Θ
CA
by [(5 + 17(0.1
0.66
)) / (5 + 17(v + 0.1)
0.66
)]
Determine Expected Lifetime
Look up Expected Lifetime on the graph using V
A
/V
R
and T
C
= T
A
+ I
2
(ESR/1000) Θ
The maximum allowed temperature rise is 40 °C and the maximum allowed core
temperature is 95 °C.
Expected Lifetime vs Core Temperature and Applied DC Voltage
1.7
1.6
1.5
1.4
50ºC
Va / Vr
1.3
60ºC
1.2
70ºC
1.1
85ºC
1
0.9
0.8
100
1000
10000
100000
1000000
Expected Lifetime (h)
CDM Cornell Dubilier • 140 Technology Place • Liberty, South Carolina 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type BLC Polypropylene Board Mount DC Link Capacitors
PCB Mount Power Film Capacitors

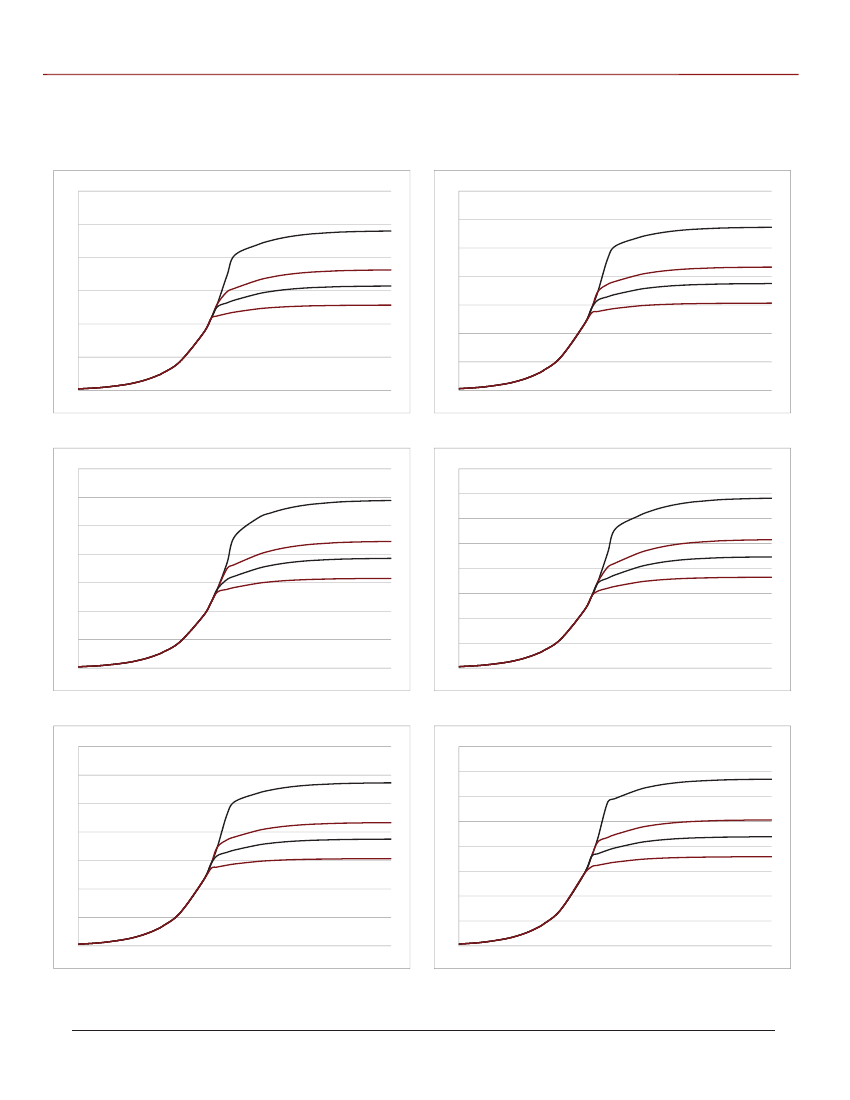

Typical Performance Curves
BLC150J701B4A Rated Ripple Current
30
35
BLC200J701B4B Rated Ripple Current
25
25°C
30
25°C
25
20
Ripple Current (A
rms
)
Ripple Current (A
rms
)
45°C
55°C
45°C
20
55°C
15
75°C
15
75°C
10
10
5
5
0
10
100
1000
Frequency (Hz)
10000
100000
0
10
100
1000
Frequency (Hz)
10000
100000
BLC160J901B4C Rated Ripple Current
35
40
BLC200J901B4D Rated Ripple Current
30
35
25°C
25°C
30
25
45°C
25
45°C
55°C
20
75°C
15
Ripple Current (A
rms
)
20
55°C
15
75°C
10
10
5
Ripple Current (A
rms
)
5
0
10
100
1000
Frequency (Hz)
10000
100000
0
10
100
1000
Frequency (Hz)
10000
100000
BLC200J112B4E Rated Ripple Current
35
40
BLC250J112B4F Rated Ripple Current
30
25°C
35
25°C
30
25
25
45°C
55°C
20
75°C
15
Ripple Current (A
rms
)
20
55°C
15
75°C
10
10
5
Ripple Current (A
rms
)
45°C
5
0
10
100
1000
Frequency (Hz)
10000
100000
0
10
100
1000
Frequency (Hz)
10000
100000
