1.6x1.2mm BI-COLOR SMD CHIP LED LAMP
KPTB-1612ESGC HIGH EFFICIENCY RED/
SUPER BRIGHT GREEN
Features
!
1.6mmx1.2mm
!
BI
Description
SMT LED, 0.65mm THICKNESS.
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange
Light Emitting Diode.
The Super Bright Green source color devices are made with
Gallium Phosphide Green Light Emitting Diode.
-COLOR,LOW POWER CONSUMPTION.
VIEWING ANGLE.
FOR BACKLIGHT AND INDICATOR.
COLORS AND LENS TYPES AVAILABLE.
: 2000PCS / REEL.
!
WIDE
!
IDEAL
!
VARIOUS
!
PACKAGE
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.2(0.0079")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: KDA0260
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/18/2001
DRAWN: S. H. CHEN
PAGE: 1 OF 4
Selection Guide
Iv (m c d )
@ 20 m A
Min .
KPTB-1612ESGC
HIGH EFFICIENCY RED (GaAsP/GaP)
SUPER BRIGHT GREEN (GaP)
WATER CLEAR
5
3
Ty p .
12
12
V i ew i n g
An g l e
2θ1/2
120°
Par t No .
Dic e
L en s Ty p e
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
°
Electrical / Optical Characteristics at T
)
=25°C
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
Par am et er
Peak Wavelength
Dominate Wavelength
D ev i c e
High Efficiency Red
Super Bright Green
High Efficiency Red
Super Bright Green
Ty p .
627
565
625
568
45
30
15
15
2.0
2.2
2.5
2.5
10
Max .
Un it s
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
IF=20mA
IF=20mA
IF=20mA
VF=0V;f=1MHz
IF=20mA
V R = 5V
High ff cien
ed
Spectral Line Halfwidth SupeEBiright cyrRen
r
Ge
Capacitance
Forward Voltage
Reverse Current
High Efficiency Red
Super Bright Green
High Efficiency Red
Super Bright Green
All
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
H i g h E f f i c i en c y R ed
105
30
160
5
Su p er B r ig h t Gr een
105
25
140
5
-40
°
C To +85
°C
Un it s
mW
mA
mA
V
SPEC NO: KDA0260
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/18/2001
DRAWN: S. H. CHEN
PAGE: 2 OF 4

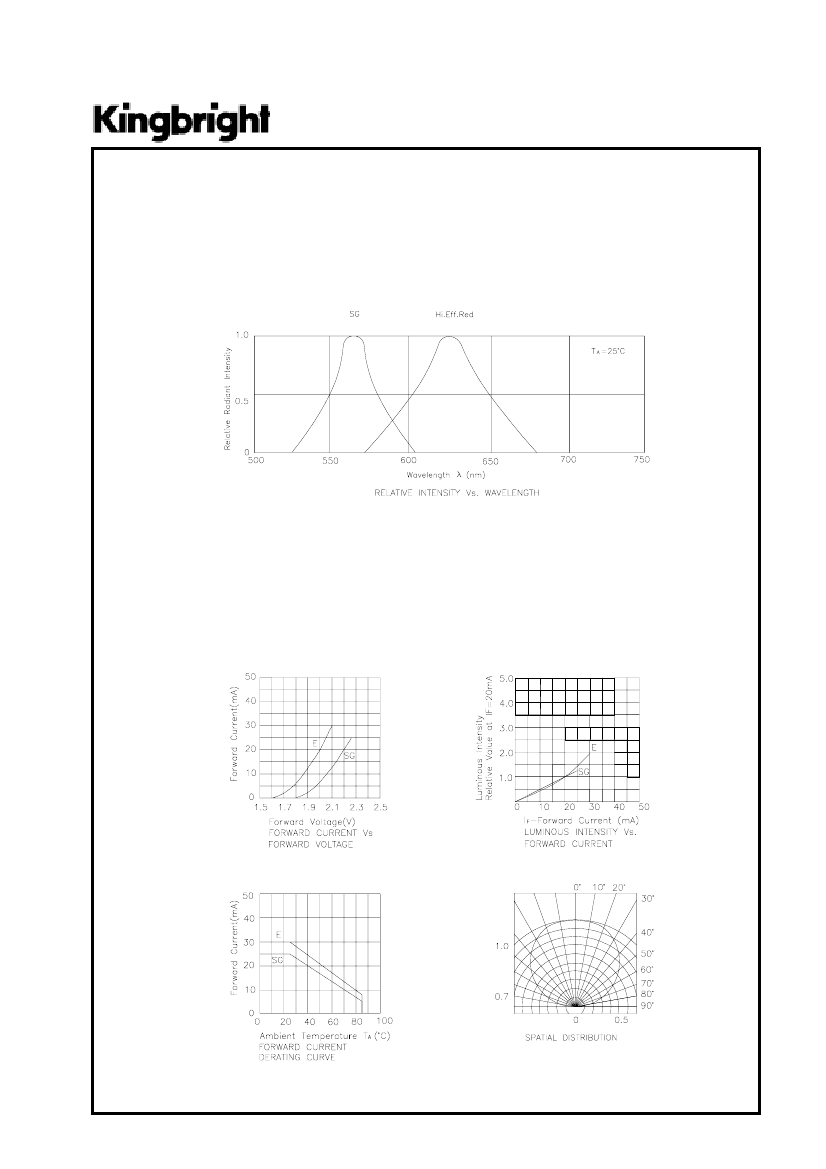

High Efficiency Red / Super Bright Green KPTB-1612ESGC
SPEC NO: KDA0260
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/18/2001
DRAWN: S. H. CHEN
PAGE: 3 OF 4
KPTB-1612ESGC

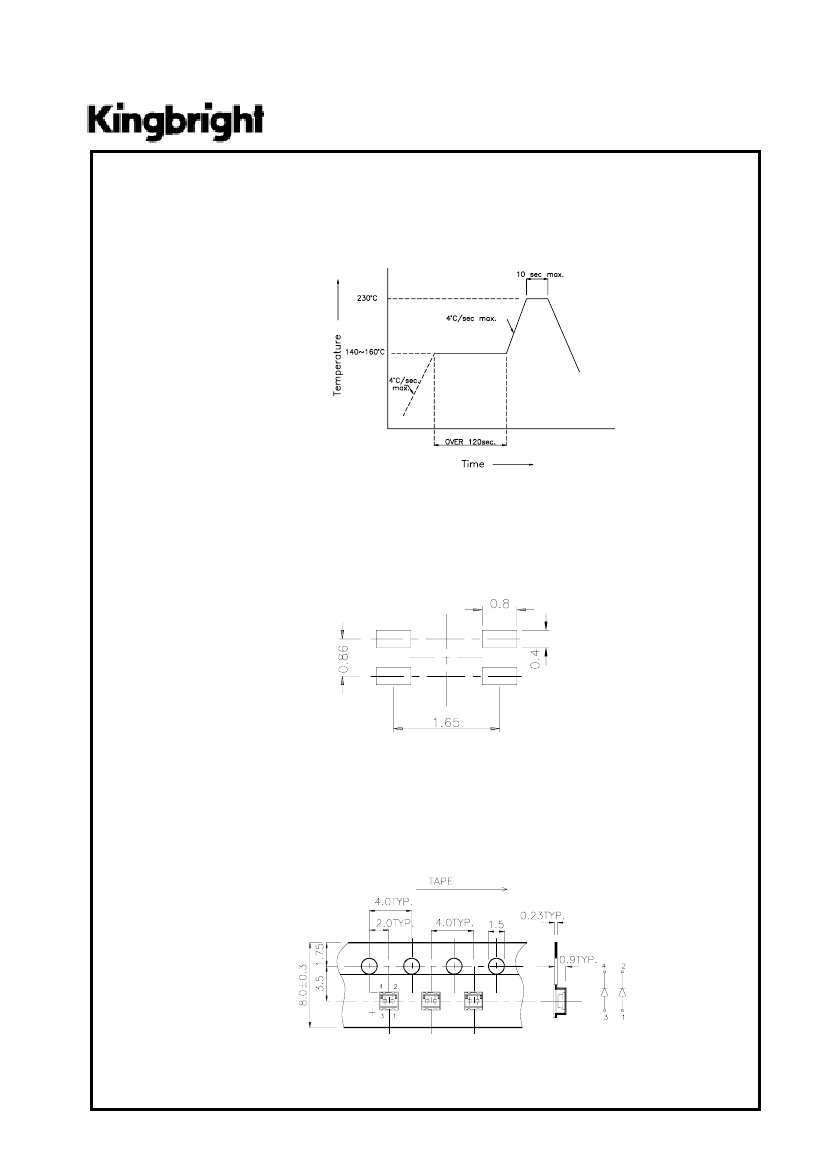

SMT Reflow Soldering Instructions
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process."
Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
SPEC NO: KDA0260
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/18/2001
DRAWN: S. H. CHEN
PAGE: 4 OF 4
