4-pole universal data signal surge protective devices
Agency information
•
•
•
•
UL 497B Listed
CSAus
ATEX
CE
For IEC applications
Instruction for Surge Protective Device Use In
Zone 2 Explosive Atmospheres per ATEX.
1. When installed in potentially explosive
atmospheres, the Data Signal DIN Series shall
be installed into an enclosure which meets
the requirements of a recognized type of
protection, in accordance with EN 60079-0.
2. The data signal DIN family as transient
suppressor. This approval applies to the
following equipment types:
BSPD5DING
BSPD48DING
BSPD12DING
BSPD5DINLHF
BSPD24DING
BSPD24DINLHF
Catalog numbers:
•
•
•
•
•
•
•
BSPD5DING
BSPD12DING
BSPD24DING
BSPD48DING
BSPD5DINLHF
BSPD24DINLHF
BSPD0180DINL
Ambient and temperature class
•
-40°C to +80°C, T4: DEKRA 12ATEX0254 X: II
3 G Ex nA IIC T4 Gc
•
Standards used for: ATEX: EN60079-0: 2009,
EN 60079-15: 2005
Features:
•
Description:

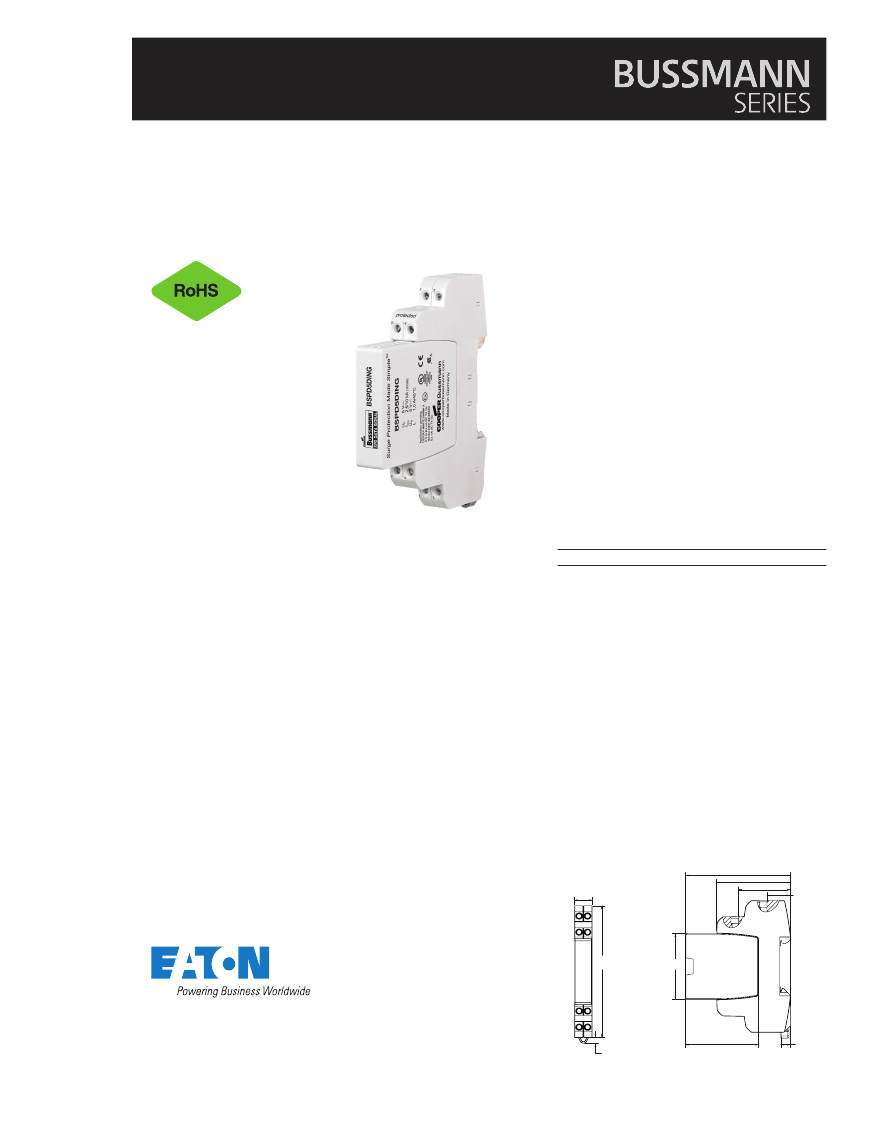

The Bussmann™ series universal four-pole, DIN-
Rail mounted surge arresters provide effective
protection with minimum space requirements and
are designed for stringent requirements on the
availability of measuring and control circuits, and
bus systems.
To ensure safe operation, the arresters provide
protection against vibration and shock up to
a 30-fold acceleration of gravity. The function-
optimized design of the devices allows quick and
easy removal of protection modules via “make-
before-break” terminals that assure continuity
of data signals in the protected and unprotected
state.
Function-optimized design for safe use and easy
installation
Four-pole and base mounts on grounded 35mm
DIN-Rail
Module removal without signal interruption via
“make-before-break” circuitry
0-180V BSPD0180DINL automatically adjusts to
system operating voltage and can protect data
circuits of different voltages up to 100mA load
current.
•
•
•
Dimensions — mm
71.99
12.00
50.49
35.51
16.09
90.00
45.00
3.97
49.99
6.70
Technical Data 2161
Effective December 2016
4-pole universal data signal surge protective devices
Catalog numbers and specifications
Catalog number — prefix: BSPD…
Nominal voltage (U
N
)
Nominal current at 45°C (I
L
)
VPL line-line for Iimp D1 (U
p
)
VPL line-PG for Iimp D1 (U
p
)
VPL line-line at 1 kV/µs C3 (U
p
)
VPL line-PG at 1 kV/µs C3 (U
p
)
VPL line-line for In C2 (U
p
)
VPL line-PG for C2 / C3 / D1
D1 Total lightning impulse current (10/350 µs) (I
imp
)
D1 Lightning impulse current (10/350 µs) per line (l
imp
)
C2 Total nominal discharge current (8/20µs) (I
n
)
C2 Nominal discharge current (8/20µs) per line (I
n
)
Series impedance per line
Frequency of the operating voltage (f
UN
)
Max. continuous operating DC voltage (U
C
)
Max. continuous operating AC voltage (U
C
)
Permissible superimposed signal voltage (U
Signal
)
“Nominal current at 80°C (I
L
)
(corresponds to max. short-circuit current)”
Cut-off frequency line-PG (f
G
)
Cut-off frequency line-line (U
Signal
, balanced 100
Ω)
(f
G
)
Capacitance line-line (C)
Capacitance line-PG (C)
ATEX Approvals
Agency information
IEC 61643-21 test category
Operating temperature range
Degree of protection
For mounting on
Grounding
Color / enclosure material
Test standards
Connection (input / output)
Conductors
Terminal torque
Warranty
…5DING
5V
1.0 A
≤29
V
≤27
V
≤18
V
≤9
V
—
—
10 kA
2.5 kA
20 kA
10 kA
1.0
Ω
—
6V
4.2 V
—
1.0 MHz
—
≤2.7
nF
≤5.4
nF
†
††
…12DING
12 V
0.75 A
≤50
V
≤37
V
≤38
V
≤19
V
—
—
10 kA
2.5 kA
20 kA
10 kA
1.8
Ω
—
15 V
10.6 V
—
2.7 MHz
—
≤1.0
nF
≤2.0
nF
†
††
…24DING
24 V
0.75 A
≤102
V
≤66
V
≤90
V
≤45
V
—
—
10 kA
2.5 kA
20 kA
10 kA
1.8
Ω
—
33 V
23.3 V
—
6.8 MHz
—
≤0.5
nF
≤1.0
nF
†
††
…48DING
48 V
0.75 A
≤160
V
≤95
V
≤140
V
≤70
V
—
—
10 kA
2.5 kA
20 kA
10 kA
1.8
Ω
—
54 V
38.1 V
—
…5DINLHF
5V
1.0 A
≤25
V
≤550
V
≤11
V
≤550
V
—
—
10 kA
2.5 kA
20 kA
10 kA
1.0
Ω
—
6V
4.2 V
—
…24DINLHF
24 V
1.0 A
≤65
V
≤550
V
≤47
V
≤550
V
—
—
10 kA
2.5 kA
20 kA
10 kA
1.0
Ω
—
33 V
23.3 V
—
…0180DINL
0-180 V
≤0.1
A@80°C
≤
UN + 53 V
—
see Note 1
—
see Note 2
≤
550 V
10 kA
2.5 kA
20 kA
10 kA
10Ω/7
.5Ω typ
0-400 Hz
180 V
127 V
± 5V
100 mA
—
50 MHz
≤80
pF
≤16
pF
—
‡
8.7 MHz
100 MHz
100 MHz
—
—
—
≤0.35
nF
≤25
pF
≤25
pF
≤0.7
nF
≤16
pF
≤16
pF
†
†
†
††
††
††
D1, C2, C3
-40°C to +80°C
IP20
35mm DIN-Rails per EN 60715
Via base part
Grey / Polyamide PA 6.6
IEC 61643-21 / EN 61643-21, UL 497B
Screw terminal
Solid: 12-28 AWG (4-0.08 mm
2
)
Flexible: 14-28A WG (2.5-0.08 mm
2
)
3.5 Lb-In (0.4 N•m)
5 Years*
* See Bussmann SPD Limited Warranty Statement (3A1502) for details at www.cooperbussmann.com/Surge.
Note 1 - See Diagram 1 - VPL line-line graph line C3.
Note 2 - See Diagram 1 - VPL line-line graph line C2.
† DEKRA 12ATEX0254 X: II 3 G Ex nA IIC T4 Gc
†† ATEX, UL, CSA
‡ UL 497B
2
Eaton.com/bussmannseries
4-pole universal data signal surge protective devices
Technical Data 2161
Effective December 2016

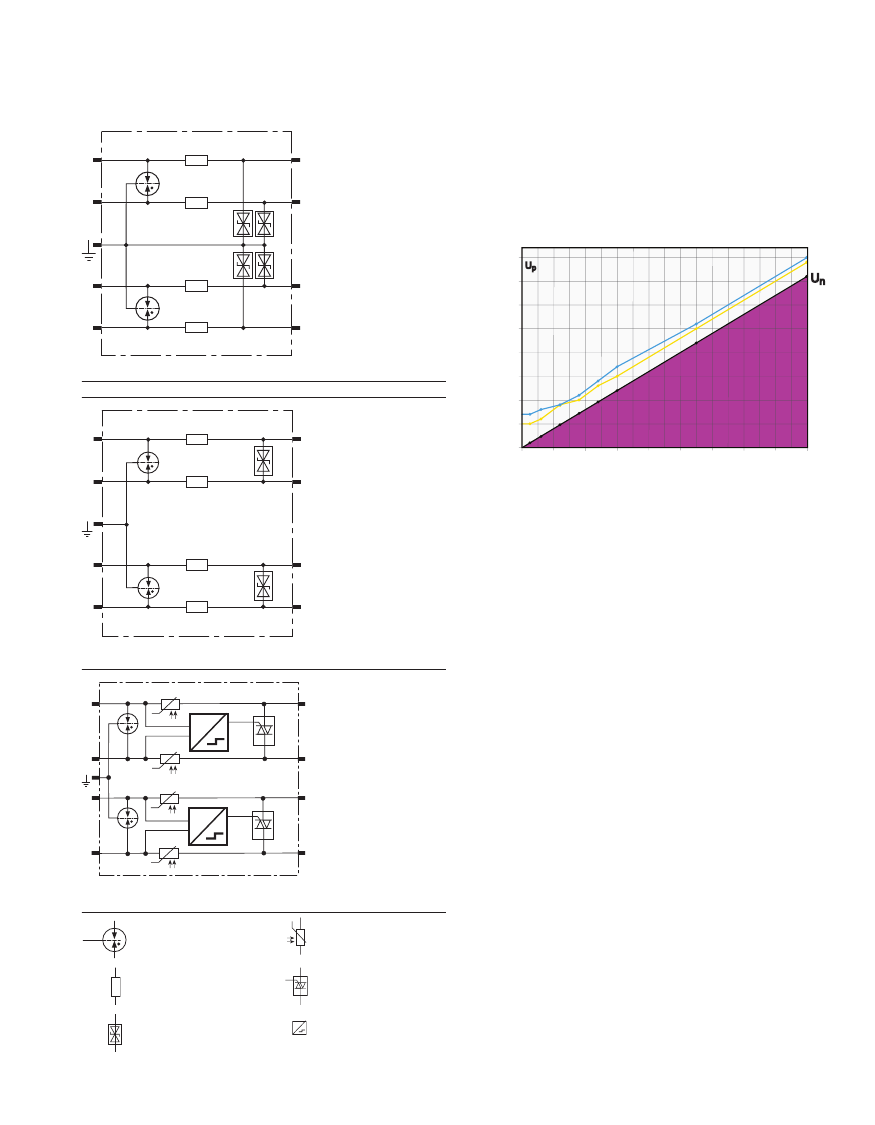

Circuit diagrams
1
1´
0-180V SPD application and mode of operation
The BSPD0180DINL surge protective device automatically adjusts to
the operating voltage (from 0 to 180 volts) of the protected device.
When an overvoltage event occurs, the SPD voltage protection level
adjusts itself based upon the output terminal operating voltage of
the base.
max. [V]
200 V
175 V
150 V
Protected
2
2´
C2 = U
p
line-line for I
n
(8/20 µs)
C3 = U
p
line-line for 1kV/µs)
3
3‘
C2
C3
U
n
4
4‘
125 V
100 V
BSPD5DING
BSPD24DING
BSPD12DING
BSPD48DING
75 V
50 V
25 V
1
1´
0V
20 V
40 V
60 V
80 V
100 V 120 V
U
N
(Operating Voltage)
U
N
140 V 160 V 180 V
Protected
2
2´
Diagram 1: Voltage Protection Level U
p
(V) (Line - Line)
3
3´
4
4´
BSPD5DINLHF
BSPD24DINLHF
1
i
1‘
U>U
N
2
i
i
2‘
3
3‘
U>U
N
4
i
4‘
BSPD0180DINL
Balanced gas discharge tube
Transient blocking unit
i
Decoupling resistor
Thyristor
Bi-polar suppressor diode
U>U
N
Surge detection
Protected
Eaton.com/bussmannseries
3
Technical Data 2161
Effective December 2016
4-pole universal data signal surge protective devices
DIN-Rail universal 4 wire data signal SPDs and applications
Universal 4 wire data signal SPD products are specified by communication technology. The table below contains the specific SPD product, by
catalog number, and the applications to which they are suited to be used.
Catalog numbers
Bus systems and measuring, and control technology
0-20 mA, 4-20 mA Signals
Binary Signals
CAN-Bus (data line only)
C-Bus (Honeywell)
Data Highway Plus
Device Net (data line only)
Dupline
E-Bus (Honeywell)
Fieldbus Foundation
FIPIO / FIPWAY
FSK
IEC-Bus (RS485)
Interbus INLINE (I/O)
Interbus INLINE,
Long-distance bus
K Bus
LON - TP/XF 78
LUXMATE Bus
M Bus
MODBUS
MPI Bus
Procontic CS31 (RS232)
Procontic T200 (RS422)
PROFIBUS DP/FMS
PROFIBUS PA
PROFIBUS SIMATIC NET
PSM EG RS422 & RS485
Rackbus (RS485)
R Bus
RS 485
RS422, V11
SafetyBUS p
Securilan LON Bus
SIGMASYS
SS97 SIN/X (RS 232)
SUCONET
Resistance Temp. Measuring
Ni1000, PT100, PT1000 Wire
NTC & PTC Thermistors
TTL
TTY 4–20mA
Telecommunication, telephony
a/b Wires
ADSL, ADSL 2+
ISDN S0, S2m/U2m, UKO/UPO
Modem M1
SDSL, SHDSL
Telephony Systems (e.g., Siemens, HICOM, Alcatel)
T-DSL
Telecommunication Systems (e.g., Siemens, HICOM,
Alcatel)
VDSL
Data networks
V 24 (RS232 C)
BSPD5DING
BSPD12DING
BSPD24DING
X
X
BSPD48DING
BSPD5DINLHF
BSPD24DINLHF
X (4-20mA only)
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
BSPD0180DINL
X
X
X
X
X
X
X
X
