SENSITRON
SEMICONDUCTOR
Technical Data
Data Sheet 522, Rev.-
SD200SC100A/B/C
SILICON SCHOTTKY RECTIFIER DIE
Very Low Forward Voltage Drop
200°C Operating Temperature
Applications:
•
Switching Power Supply
•
Converters
•
Free-Wheeling Diodes
•
Polarity Protection Diode
Features:
•
•
•
•
•
•
•
•
Soft Reverse Recovery at Low and High Temperature
Very Low Forward Voltage Drop
Low Power Loss, High Efficiency
High Surge Capacity
Guard Ring for Enhanced Durability and Long Term Reliability
Guaranteed Reverse Avalanche Characteristics
Electrically / Mechanically Stable during and after Packaging
Out Performs 100 Volt Ultrafast Rectifiers
Maximum Ratings
(1)
:
Characteristics
Peak Inverse Voltage
Max. Average Forward
Current
Max. Peak One Cycle Non-
Repetitive Surge Current
Non-Repetitive Avalanche
Energy
Repetitive Avalanche Current
Max. Junction Temperature
Max. Storage Temperature
Symbol
V
RWM
I
F(AV)
I
FSM
E
AS
I
AR
T
J
T
stg
Condition
-
50% duty cycle, rectangular
wave form
8.3 ms, half Sine wave
(1)
T
J
= 25
°C,
I
AS
= 0.90 A,
L = 33 mH
I
AS
decay linearly to 0 in 1
µs
ƒ
limited by T
J
max V
A
=1.5V
R
-
-
Max.
100
60
860
13.5
0.90
-65 to +200
-65 to +200
Units
V
A
A
mJ
A
°C
°C
Electrical Characteristics
(1)
:
Characteristics
Max. Forward Voltage Drop
Max. Reverse Current
Symbol
V
F1
V
F2
I
R1
I
R2
Max. Junction Capacitance
C
T
Condition
@ 60A, Pulse, T
J
= 25
°C
@ 60A, Pulse, T
J
= 125
°C
@V
R
= 100V, Pulse,
T
J
= 25
°C
@V
R
= 100V, Pulse,
T
J
= 125
°C
@V
R
= 5V, T
C
= 25
°C
f
SIG
= 1MHz,
V
SIG
= 50mV (p-p)
Max.
0.87
0.72
1.0
24
1500
Units
V
V
mA
mA
pF
(1) in SHD package
•
221 West Industry Court
Deer Park, NY 11729-4681
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
SENSITRON
SEMICONDUCTOR
Data Sheet 522, Rev.-

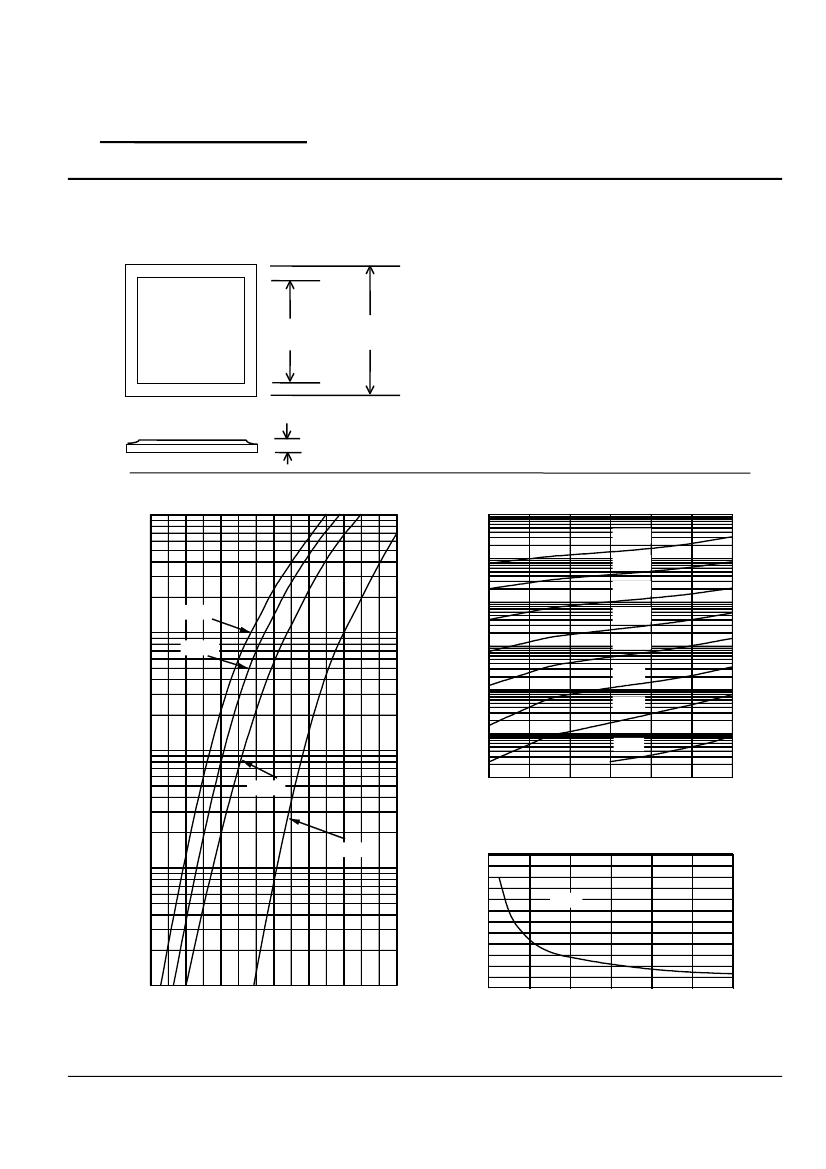

Mechanical Dimensions: In Inches / mm
SD200SC100A/B/C
Bottom side metalization Ag - 30 kÅ minimum.
0.191
±
0.003 0.200
±
0.003
(4.85
±
0.077) (5.08
±
0.077)
Top side metalization Al - 25 kÅ minimum
or Ag - 30 kÅ minimum.
Bottom side is cathode, top side is anode.
Dimension H = 0.0105 ± 0.001 (0.27
±
0.026) for Al top;
Dimension H = 0.0155 ± 0.001 (0.39
±
0.026) for Ag top.
H
Typical Forward Characteristics
10
2
Instantaneous Reverse Current - I
R
(mA)
10
2
Typical Reverse Characteristics
200 °C
10
1
175 °C
150 °C
200 °C
10
1
Instantaneous Forward Current - I
F
(A)
10
0
125 °C
10
-1
175 °C
100 °C
75 °C
10
-2
50 °C
10
-3
10
0
25 °C
125 °C
10
-4
0
20
40
60
80
100
Reverse Voltage - V
R
(V)
120
Typical Junction Capacitance
25 °C
10
-1
Junction Capacitance - C
T
(pF)
1400
1200
1000
800
600
400
200
0
20
40
60
80
Reverse Voltage - V
R
(V)
100
120
25 °C
10
-2
0.1
0.2
0.3
0.4
0.5
0.6
0.7
Forward Voltage Drop - V
F
(V)
0.8
•
221 West Industry Court
Deer Park, NY 11729-4681
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
