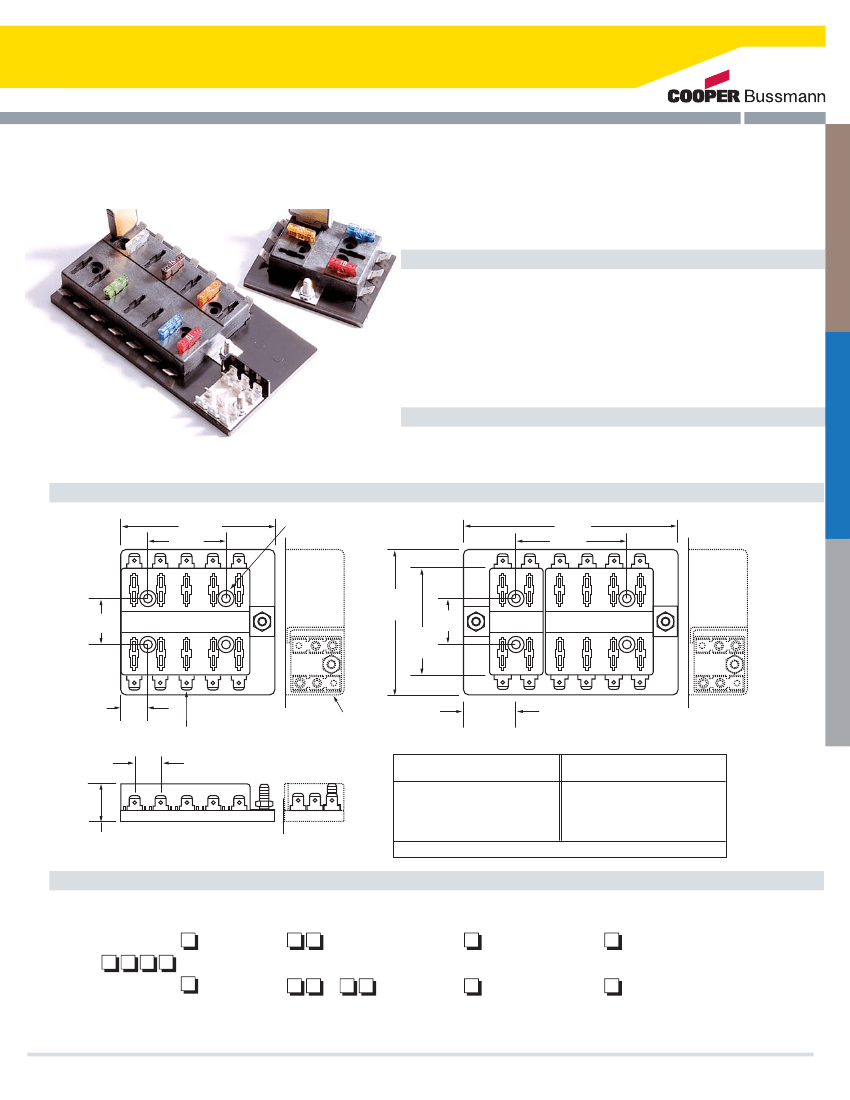

Series 15600 ATC Blade-Type Fuse Panels
®
The 15600 ATC
®
fuse panel is a compact, yet rugged, power distribution
module. It is available in a single or dual internal buss electrical configuration
featuring an optional ground pad terminal strip. The 15600 fuse panel is surface
mounted, uses convenient quick-connect terminals, and is recommended as a
supplemental power distribution module. It can be used to accompany main
PDMs such as the Cooper Bussmann 31000/32000 Series VEC/DVEC, 15710
Series RTA, and the 1540X Series RFRM.
Power Distribution
Specifications
Input Terminal Rating:
#10-32 Threaded studs (100A max).
Output Terminal Rating:
30A Max per circuit.
Temperature Rating:
–20°F (0°C) to 150°F (65°C).
Materials:
Black thermoplastic.
Termination:
.250" x .032" quick-connect terminals. Ground terminal pad option
available. Input wire size: #4-6 AWG. Output wire size: #12-16 AWG.
Torque Rating:
20 in-lbs (2.25N m) max.
Mounting Torque Rating:
8 in-lbs (0.9N m) max.
Fuse Panels
Options
Positions:
4-20 circuits available.
Split Power:
Single or dual buss options.
Dimensions - mm(in)
15600 Series
"L"
"C"
.22" DIA. HOLE WITH .41 x .12
DEEP C'BORE (4X)
15602 Series
"L"
"C"
85.59
(3.37)
26.92
(1.06")
63.50
(2.50)
26.92
(1.06)
Series 15600
15.75
(.62)
.250" QC (COPPER ALLOY - TIN PLATED)
Ground Terminal Base Option
(12) .250" QC TERMINALS W/COMMON
WIRING STUD, ADD 1.300" TO "L" FOR
OVERALL LENGTH
30.98
(1.22)
(15602-04/08-20 SHOWN)
15.75 TYP (.62")
No. of
Fuse
04
06
08
10
12
20.32
(.80)
(15600 -10-20 SHOWN)
“C”
–
.62
1.25
1.87
2.50
15600
“L”
1.84
2.47
3.09
3.75
4.34
15602
“L”
2.44
3.06
3.68
4.32
4.94
No. of
Fuses
14
16
18
20
“C”
3.12
3.76
4.37
5.00
15600
“L”
4.97
5.59
6.22
6.84
15602
“L”
5.56
6.19
6.81
7.43
Dimensions in inches. Multiply by 25.4 for metric.
Part Numbering System
Series
No. of Fuses &/or Circuit
Breaker Positions
Hardware
Options
Ground Terminal
Base
0
1 5 6 0
2
–
04-20
–
–
Left Side Right Side
04-16
04-16
(max. combination of 20)
–
–
0 – W/O nuts
1 – Nuts shipped bulk
2 – Nuts assembled
0 – None
1 – Include Ground Pad
0 – Single Stud, Single Supply Circuit
2 – Double Stud, Split Supply Circuits
Cooper Bussmann Transportation Products
