PTCCL - 600 V / 1000 V Series
www.vishay.com
Vishay BCcomponents

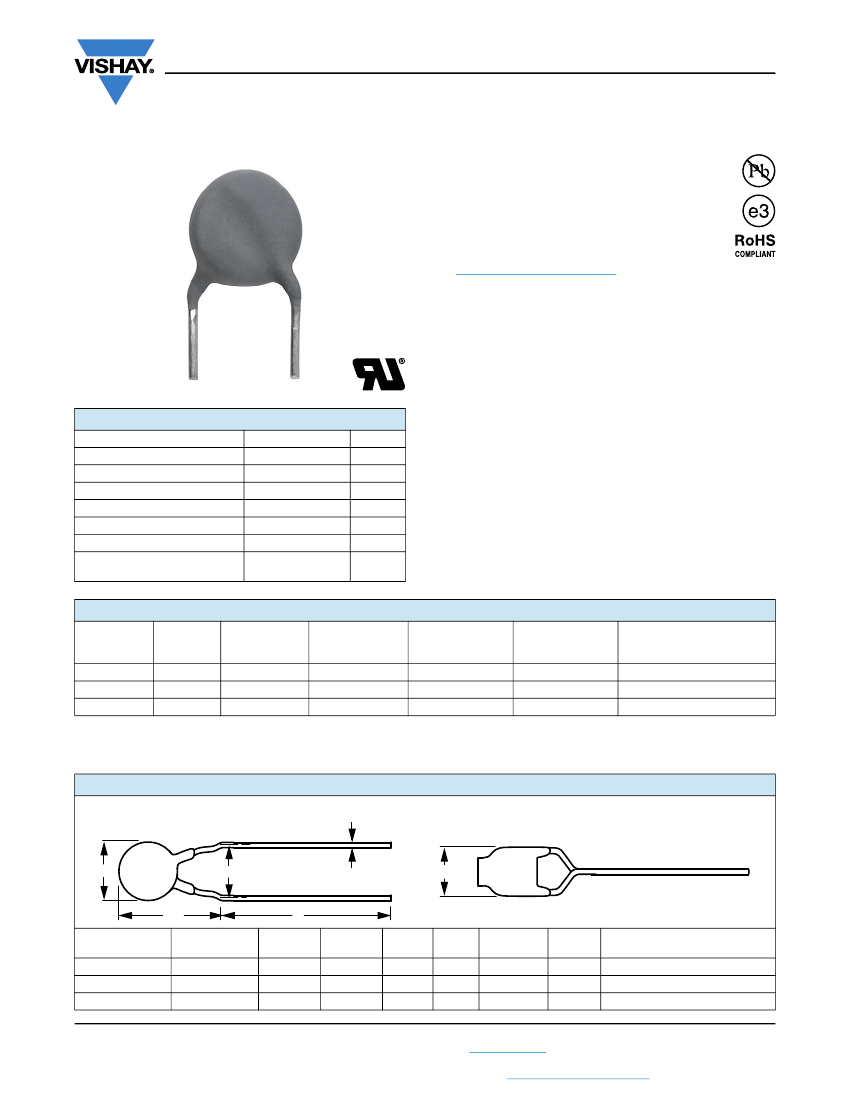

600 V / 1000 V PTC Thermistors for Overload Protection
FEATURES
•
•
•
•
•
Fast response time for rapid protection
Automatic resetting once overload is removed
Operates on DC or AC voltage
UL approved types available (E148885)
Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
Over-temperature/over-load protection for metering, low
current signal protection, digital signal protection against
over-voltage
DESCRIPTION
Test and measuring instruments, such as oscilloscopes and
digital multimeters, can be easily damaged if excessive
voltages are applied across their input terminals.
Simple and effective overload protection can be provided by
connecting a high-voltage PTC thermistor in series with the
instrument; see Typical Connection of the PTC Thermistor
for Digital Multimeter Protection drawing. Under normal
conditions, the resistance of the PTC thermistor is low, so
the test voltage will be measured by the instrument. Under
an overload condition, the PTC thermistor will switch to its
high-resistance state, absorbing the overload current and
protecting the instrument. When the overload is removed,
the PTC thermistor will return to its low-resistance state,
ready to resume its protective function.
QUICK REFERENCE DATA
PARAMETER
Maximum rated voltage
Nominal holding current (Int)
Resistance at 25 °C (R
25
)
Tolerance on
R
25
value
Maximum overload current I
ol
Switching temperature
Operating temperature range
at rated voltage
VALUE
600 to 1000
10
400 to 1600
20 to 30
0.5 to 2.0
90 to 115
-20 to 85
UNIT
V
RMS
mA
%
A
°C
°C
ELECTRICAL DATA AND ORDERING INFROMATION
INT MAX.
at 25 °C
(mA)
10
10
10
IT MIN.
at 25 °C
(mA)
20
25
50
R
25 (2)
()
1600 ± 300
1500 ± 450
400 ± 100
MAXIMUM
VOLTAGE
(1)
(V)
600
1000
600
INSULATION
VOLTAGE
(V)
-
-
> 1000
UL APPROVAL
UL
-
UL
ORDERING PART
NUMBERS
PTCCL05H100SBE
PTCCL07H100VBE
PTCCL10H010SBE
Notes
(1)
These PTCs can handle maximum voltage without series resistance
(2)
Other resistance values and voltage levels on request
COMPONENT DIMENSIONS
in millimeters
PTC THERMISTORS IN BULK
D
F
Ød
T
H
L
H
MAX.
10.4
12
13.5
Revision: 02-Mar-16
L
20 ± 3
20 ± 3
3.1 ± 0.5
D
MAX.
5
7
10
T
MAX.
4.5
5.0
6.5
F
5.0
5.0
8.12
Ød
0.6
0.6
0.8
MASS
(g)
~ 0.5
~ 0.60
~ 1.8
SPQ
500
250
500
PART NUMBER
PTCCL05H100SBE
PTCCL07H100VBE
PTCCL10H010SBE
Document Number: 29072
1
For technical questions, contact:
nlr@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PTCCL - 600 V / 1000 V Series
www.vishay.com
Vishay BCcomponents

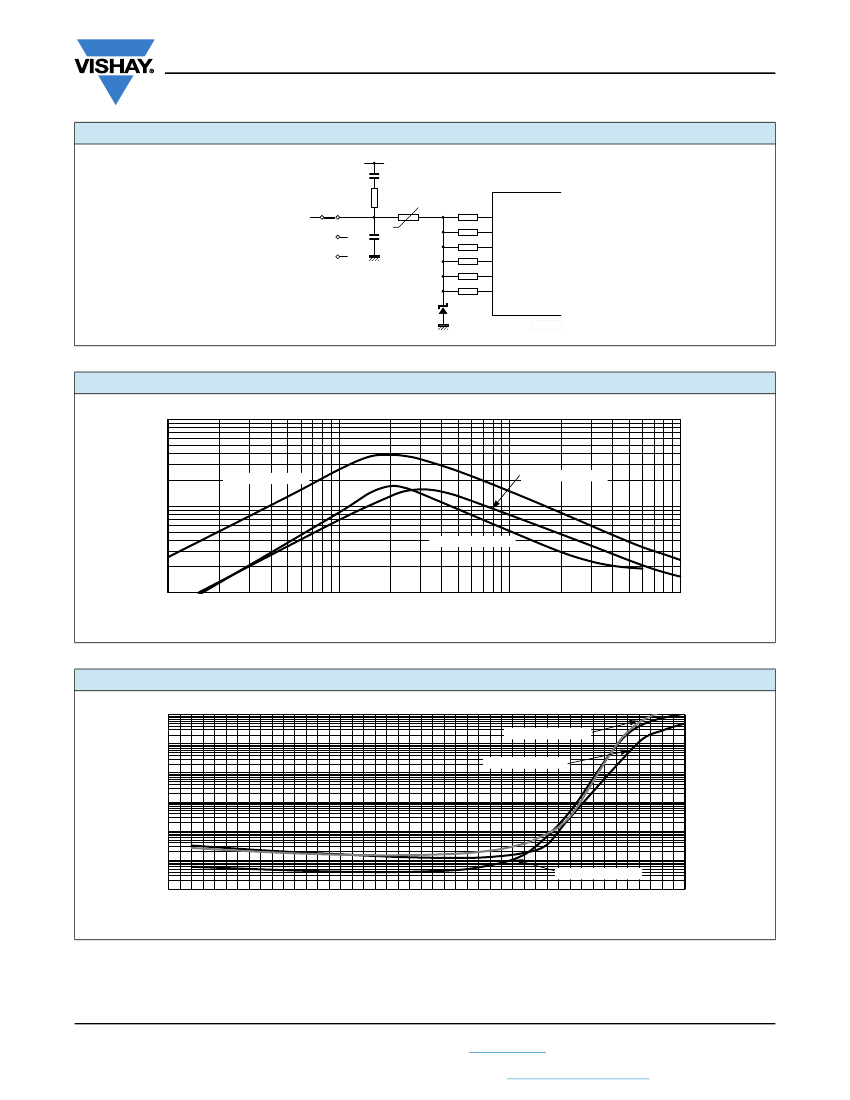

TYPICAL CONNECTION OF THE PTC THERMISTOR FOR DIGITAL MULTIMETER PROTECTION
PTC
thermistor
input
Ω
V
A
INSTRUMENT
MSB392
TYPICAL CURRENT / VOLTAGE CHARACTERISTIC
Axis Title
100
10000
2nd line
Current (mA
RMS
)
PTCCL10H010SBE
PTCCL07H100VBE
1000
1st line
2nd line
10
100
PTCCL05H100SBE
1
1
10
Voltage (V
RMS
)
2nd line
100
10
1000
TYPICAL RESISTANCE / TEMPERATURE CHARACTERISTIC
( 5 V
DC
)
Axis Title
10
8
PTCCL07H100VBE
10000
10
7
2nd line
Resistance (Ω)
PTCCL05H100SBE
10
6
10
5
10
4
10
3
PTCCL10H010SBE
1000
1st line
2nd line
100
10
-50
-25
0
25
50
75
100
125
150
175
Temperature (°C)
2nd line
10
2
Revision: 02-Mar-16
Document Number: 29072
2
For technical questions, contact:
nlr@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
