Axial Lead & Cartridge Fuses
3.6 X 10 mm > Slo-Blo
®
> 875 Series

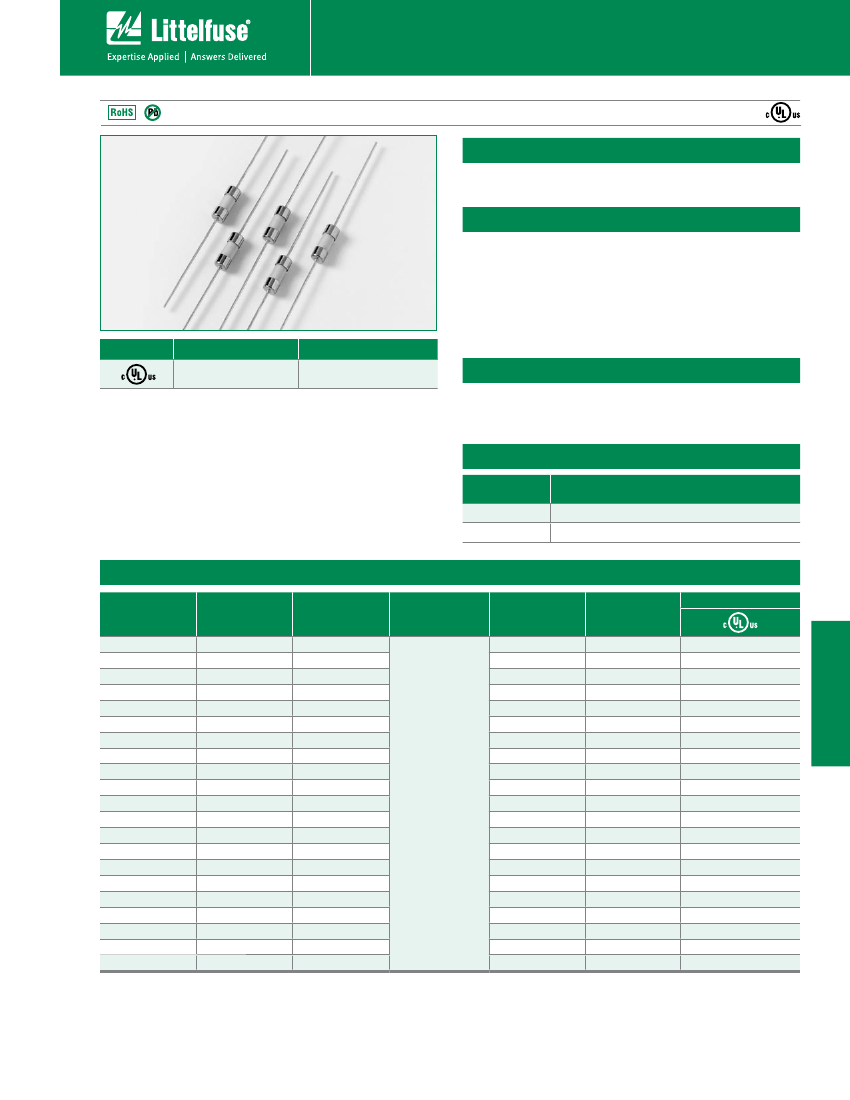

875 Series Fuse,
Lead-free 3.6 x 10 mm, Slo-Blo
®
Fuse
Description
Features
Agency
Agency File Number
Ampere Range
E10480
0.100A - 10 A
Applications
Electrical Characteristics
% of Ampere
Rating
100%
200%
Opening Time
4 hours, Minimum
60 seconds, Maximum
Electrical Characteristics
Amp Code
.100
.125
.200
.250
.300
.400
.500
.600
.800
001.
01.5
01.6
002.
02.5
003.
004.
005.
006.
007
.
008.
010.
Ampere Rating
(A)
0.100
0.125
0.200
0.250
0.300
0.400
0.500
0.600
0.800
1.00
1.50
1.60
2.00
2.50
3.00
4.00
5.00
6.00
7
.00
8.00
10.00
Voltage Rating
(V)
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Interrupting
Rating
Nominal Cold
Resistance
(Ohms)
2.900
1.850
0.920
0.6575
0.435
0.321
0.256
0.151
0.116
0.095
0.0519
0.0476
0.02887
0.02246
0.0171
0.0135
0.00954
0.00891
0.008
0.0077
0.00675
Nominal Melting
I
2
t (A
2
sec)
0.0054
0.0072
0.0165
0.038
0.043
0.136
0.288
0.611
0.919
1.503
4.33
5.08
8.45
17
.85
24.50
42.45
60.90
72.30
106.80
134.59
208.00
Agency Approvals
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/875.html for current information.
235
Revised: February 3, 2009
875 Series
875 Series
Introduction to & Cartridge Fuses
Axial Lead Circuit Protection
®
3.6 X 10 mm > Slo-BloTransientology
> 875 Series

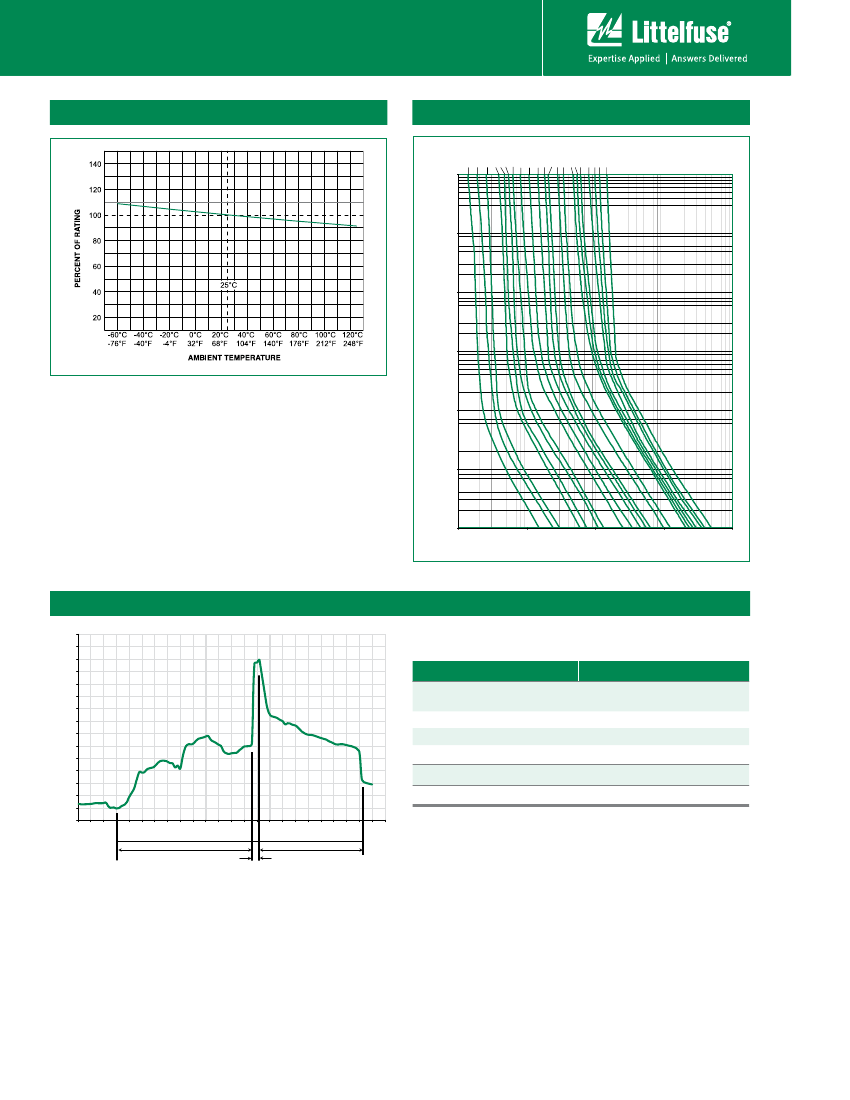

Temperature Rerating Curve
Average Time Current Curves
.500A
.600A
.125A
.200A
.100A
.250A
.300A
.400A
.800A
1A
1.5A
1.6A
2A
2.5A
3A
4A
5A
1000
100
10
TIME IN SECONDS
1
0.1
0.01
0.001
0 .1
1
10
CURRENT IN AMPS
100
100 0
Soldering Parameters - Wave Soldering
300
Temperature (°C) - Measured on bottom side of board
280
260
240
220
200
180
160
140
120
100
80
60
40
20
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
10
20
30
40
50
60
70
80
90
0
0
Recommended Process Parameters:
Wave Parameter
Preheat:
100
°
150
°
60-180 seconds
Solder Pot Temperature:
Solder Dwell Time:
260
°
2-5 seconds
Lead-Free Recommendation
Time (Seconds)
Preheat Time
Dwell Time
Cooling Time
Recommended Hand-Solder Parameters:
Note: These devices are not recommended for IR or
Convection Reflow process.
6A
7A
8A
10A
875 Series
236
Revised: February 3, 2009
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/875.html for current information.
Axial Lead & Cartridge Fuses
3.6 X 10 mm > Slo-Blo
®
> 875 Series
Product Characteristics
Materials
Terminal Strength
Solderability
Product Marketing
Packaging
2003-01 Annex A
Operating Temperature
Thermal Shock
Vibration
Humidty
Salt Spray
Dimensions
Part Numbering System
0875 xxxx M X E P
Series
Amp Code
Refer to Amp Code column of
Electrical Characteristics Table
Quantity Code
M = 1000
Packaging Code
X = Filler
Option Code
E = Axial Leaded
Lead-free
P
= Lead-Free
Others = Special Options
Please call Littelfuse for detail
All dimensions in mm
Packaging
Packaging Option
875 Series
1000
1000
MXE
Packaging Specification
Quantity
Quantity &
Packaging Code
Taping Width
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/875.html for current information.
237
Revised: February 3, 2009
875 Series
875 Series
