Data Sheet No. BRDI-100-1B
FEATURES
PRV Ratings from 50 to 1000 Volts
MECHANICAL SPECIFICATION
ACTUAL SIZE OF
THE DI PACKAGE
DT
+
SERIES DI100 - DI110
_
DT
DI104
Surge overload rating to 50 Amps peak
DI104
+
A1
A
Reliable low cost molded plastic construction
Ideal for printed circuit board applications
C
UL RECOGNIZED - FILE #E124962
MECHANICAL DATA
Case: Molded plastic, U/L Flammability Rating 94V-0
D
L1
L
B
B1
B2
Minimum
mm
in
0.290
7.4
0.245
6.2
0.41
0.016
0.195
5.0
0.300
7.6
9.3
0.355
3.2
0.125
3.9
0.155
0.060* 1.5*
Maximum
mm
in
7.9
0.310
6.5
0.255
0.51
0.020
0.205
5.2
8.9
0.350
9.3
0.365
3.4
0.135
0.165
4.3
Terminals: Rectangular pins
_
Soldering: Per MIL-STD 202 Method 208 guaranteed
+
Sym
A
A1
B
B1
B2
C
D
L
L1
Polarity: Marked on case
Mounting Position: Any
Weight: 0.05 Ounces (1.3 Grams)
* This dimension is "Typical".
MAXIMUM RATINGS & ELECTRICAL CHARACTERISTICS
Ratings at 25 °C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive loads, derate current by 20%.
PARAMETER (TEST CONDITIONS)
Series Number
Maximum DC Blocking Voltage
Maximum RMS Voltage
Maximum Peak Recurrent Reverse Voltage
Average Forward Rectified Current @ T
A
= 40
o
C
Peak Forward Surge Current (8.3mS single half sine wave
superimposed on rated load)
Maximum Forward Voltage (Per Diode) at 1 Amp DC
Maximum Average DC Reverse Current
At Rated DC Blocking Voltage
Operating and Storage Temperature Range
@ T
A
= 25 C
@ T
A
= 100
o
C
o
SYMBOL
RATINGS
DI100 DI101 DI102 DI104 DI106 DI108 DI110
UNITS
V
RM
V
RMS
V
RRM
I
O
I
FSM
V
FM
I
RM
R
θJA
T
J,
T
STG
50
35
50
100
70
100
200
140
200
400
280
400
1
50
1.1
5.0
0.5
40
600
420
600
800
560
800
1000
700
1000
AMPS
VOLTS
µA
mA
°C/W
°C
4.97fbrdi100
VOLTS
Maximum Thermal Resistance, Junction to Ambient (Note 1)
-55 to +150
NOTES: (1) Thermal resistance from junction to ambient with bridge mounted on PC Board with 0.5x0.5 in copper pads
F1
DIOTEC ELECTRONICS CORP.
18020 Hobart Blvd., Unit B
Gardena, CA 90248 U.S.A
Tel.: (310) 767-1052 Fax: (310) 767-7958
Data Sheet No. BRDI-100-2B
1 AMP MINIATURE BRIDGE RECTIFIERS

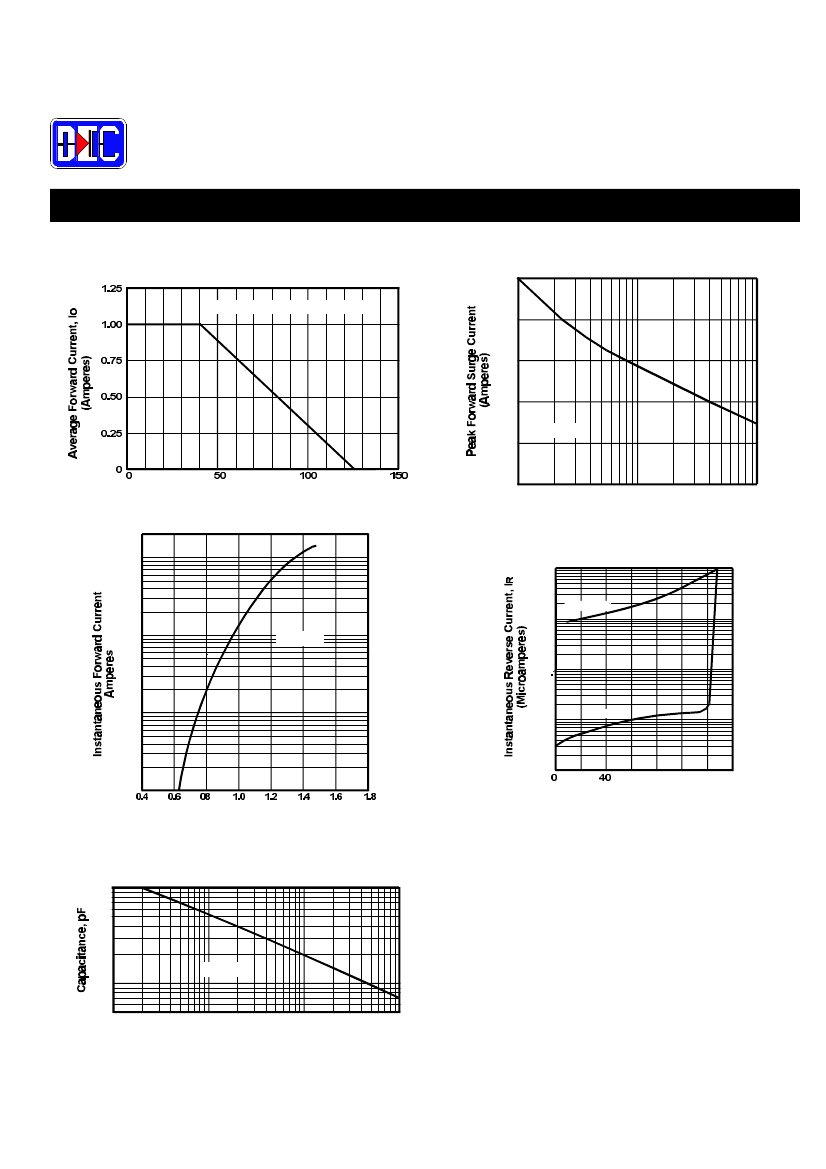

RATING & CHARACTERISTIC CURVES FOR SERIES DI100 - DI110
50
Resistive and Inductive Loads
40
30
20
NOTE 1
10
Ambient Temperature,
o
C
FIGURE 1. FORWARD CURRENT DERATING CURVE
0
1
10
100
Number of Cycles at 60 Hz
FIGURE 2. MAXIMUM NON-REPETITIVE SURGE CURRENT
10
100
T
A
= 100
o
C
10
1.0
NOTE 2
1.0
0.1
0.1
T
A
= 25
o
C
.01
20
60
80
100
120
140
0.01
Instantaneous Forward Voltage (Volts)
FIGURE 3. TYPICAL FORWARD CHARACTERISTIC PER DIODE
Percent of Rated Peak Reverse Voltage
FIGURE 4. TYPICAL REVERSE CHARACTERISTICS
1000
NOTES
NOTE 3
100
50
0.1
1
10
100
(1) JEDEC Method, 8.3 mSec. Single Half Sine Wave; T
J
= 150
o
C
(2) T
J
= 25 C; Pulse Width = 300
µ
Sec, 1% Duty Cycle
o
(3) T
J
= 25
o
C; f = 1 MHz
Reverse Voltage, (Volts)
FIGURE 5. TYPICAL JUNCTION CAPACITANCE PER DIODE
F2
