10/100 BASE PULSE TRANSFORMERS (SMD) SMALL SIZE
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
Low leakage inductance and winding capacitances for fast rise time
High isolation voltages to comply with international safety requirements for LANs
Half port and single port designs for maximum layout flexibility
Compatible with Intel, TDK, QSI, and ICS transceivers
16 PIN SMD package to compliant with IEEE 802.3 standard
Storage temperature range: -40℃to +125℃
BOTHHAND
USA.
Electrical Specifications @ 25℃ Operating Temperature range: 0℃ to + 70℃
Part
Number
TS6121A
TS6121B
TS6121E
TS6121F
TS6121G
TS6121H
TS6121K
Insertion
Loss
(dB Max)
0.3~100MHz 0.3-30MHz
-1.1
-18
-1.15
-18
-1.15
-18
-1.1
-18
-1.15
-18
-1.15
-18
-1.15
-18
Return Loss
(dB Min)
40MHz
-15.5
-15.5
-15.5
-15.5
-15.5
-15.5
-15.5
50MHz
-13
-13.6
-13
-13
-13.
-13.6
-13.
60-80MHz
-12
-12
-12
-12
-12
-12
-12
Cross talk
(dB Min)
0.3-100MHz
-38
-38
-38
-30
-38
-35
-50
CMRR
(dB Min)
0.3-100MHz
-40
-40
-40
-40
-40
-40
0.3-60MHz
60-100MHz
-45
-35
Differential to Common
Mode Rejection (dB Min)
30MHz
60MHz
-42
-37
-42
-37
0.3-60MHz
-45
100MHz
-33
-33
60-100MHz
-35
Insertion
Loss
Part
(dB Max)
Number
0.3~100MHz
TS6121C
-1.15
TS6121CX
-1.15
TS6121K
Part
Number
TS6121A
TS6121B
TS6121C
TS6121CX
TS6121E
TS6121F
TS6121G
TS6121H
TS6121K
-
Return Loss(dB Min)
30MHz
-20
-20
-
60MHz
-14
-14
-
80MHz
-12
-12
-
L.L
(uH Max)
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.4
0.5
Cross talk (dB Min)
30MHz
-45
-45
-
CW/W
(pF Max)
28
28
28
56
28
28
28
28
28
60MHz
-40
-40
-
100MHz
-35
-35
-
HI-POT
(Vrms)
1500
1500
1500
1500
1500
1500
1500
1500
1500
Turns Ratio
OCL
(±5%)
(uH Min)
1CT:1CT
350
1.25CT:1CT/1CT:1CT
350
1CT:1CT
350
1CT:1CT
350
1CT:1CT
350
1CT:1CT
350
1CT:1CT
350
1CT:1CT
350
1CT:1CT
350
DCR Primary (Ω Max)
0.7 Pin 1-3/6-8 & 1.1 Pin 11-9
0.9
0.7 Pin 1-3/6-8 & 1.1 Pin 11-9
0.7 Pin 1-3/6-8 & 1.1 Pin 11-9
0.7 Pin 1-3/6-8 & 1.1 Pin 11-9
0.7 Pin 1-3/6-8 & 1.1 Pin 11-9
0.7 Pin 1-3/6-8 & 1.1 Pin 11-9
0.7 Pin 1-3/6-8 & 1.1 Pin 11-9
0.7 Pin 1-3/6-8 & 1.1 Pin 11-9
Bothhand USA
.
e-mail: sales@bothhandusa.com http://www.bothhand.com
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
10/100 BASE PULSE TRANSFORMERS (SMD) SMALL SIZE
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
BOTHHAND
USA.

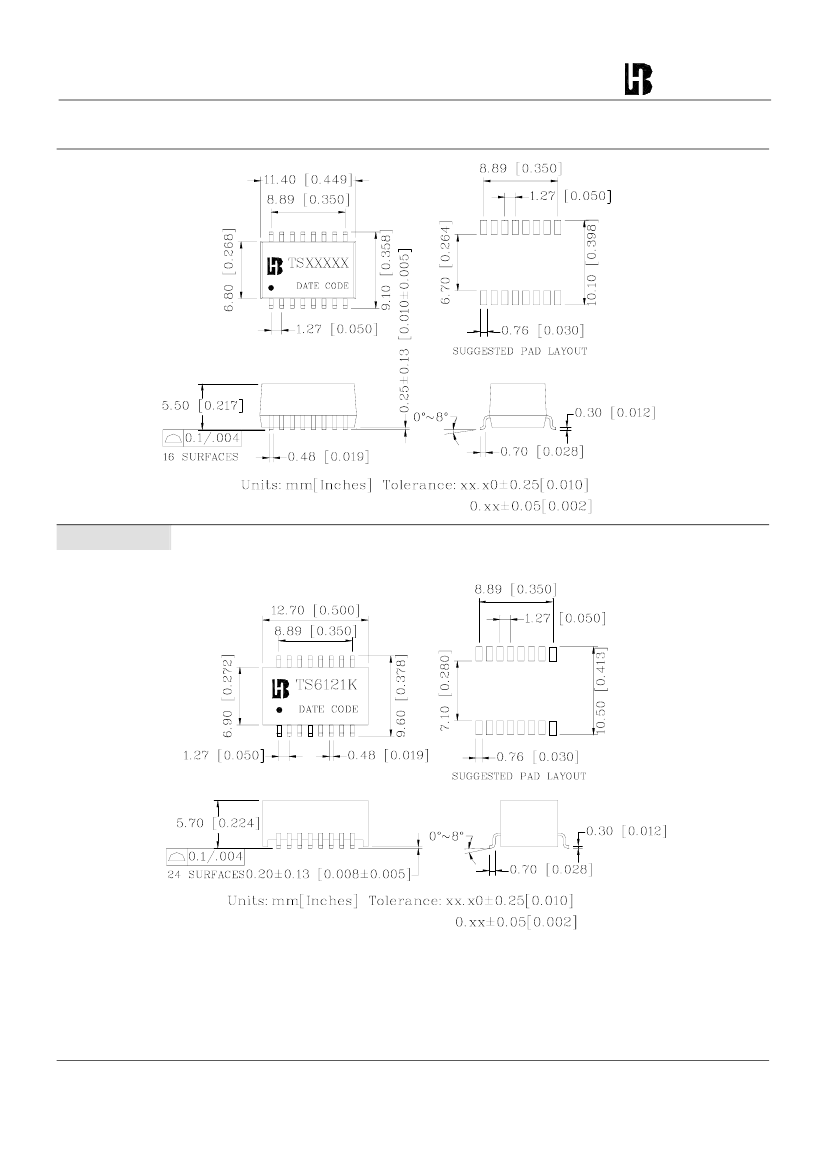

Mechanicals
TS6121K
Bothhand USA
.
e-mail: sales@bothhandusa.com http://www.bothhand.com
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
10/100 BASE PULSE TRANSFORMERS (SMD) SMALL SIZE
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
BOTHHAND
USA.
Schematics
TS6121C,
TS6121A, TS6121B
TS6121CX
TS6121E
TS6121F
TS6121G
Bothhand USA
.
e-mail: sales@bothhandusa.com http://www.bothhand.com
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
10/100 BASE PULSE TRANSFORMERS (SMD) SMALL SIZE
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
TS6121H
TS6121K
BOTHHAND
USA.
Bothhand USA
.
e-mail: sales@bothhandusa.com http://www.bothhand.com
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
