SolidMatrix
®

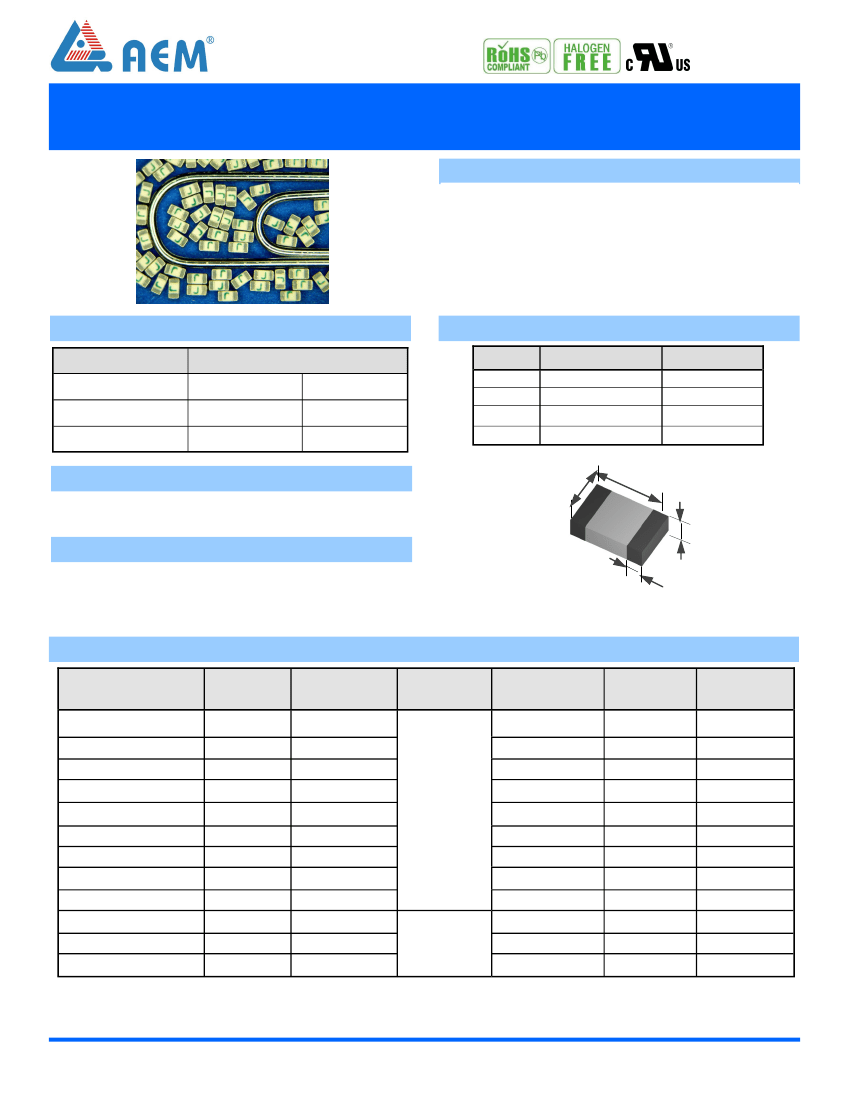

Surface Mount Fuses
HI Series (High Inrush), 0603 Size
Features:
Clearing Time Characteristics:
% of Current Rating
100%
200%
1000%
(1-5A)
Clearing time at 25°
C
4 hours min.
1 second min.
0.0002 seconds min.
60 seconds max.
0.02 seconds max.
High inrush current withstanding capability
Ceramic Monolithic structure
Silver fusing element and silver termination with nickel and
tin plating
Symmetrical design with marking on both sides (optional)
Operating temperature range: -55° to +125° (with de-
C
C
rating)
Shape and Dimensions:
Unit
L
W
T
B
Inch
0.063 ± 0.006
0.031 ± 0.006
0.031 ± 0.006
0.014 ± 0.006
mm
1.60 ± 0.15
0.80 ± 0.15
0.80 ± 0.15
0.36 ± 0.15
Agency Approval:
Recognized Under the Components Program of UL.
File Number: E232989.
W
L
Patents:
Patent numbers “US6,034,589”, “US6,602,766”, “US7,268,661
B2”, “ZL00134544.3”, “ZL02114719.1”, “ZL200410104280.7”,
“ZL201020551360.8”, “ZL201010299185.2”,
“ZL201220030614.0”, “ZL201210020693.1”.
T
B
Ordering Information:
Part Number
F0603HI1000V032T
F0603HI1500V032T
F0603HI2000V032T
F0603HI2500V032T
F0603HI3000V032T
F0603HI3500V032T
F0603HI4000V032T
F0603HI4500V032T
F0603HI5000V032T
F0603HI6000V032T
F0603HI7000V032T
F0603HI8000V032T
Current
Rating (A)
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
6.0
7.0
8.0
Voltage
Rating (VDC)
32
32
32
32
32
32
32
32
32
32
32
32
80 A at rated
voltage
50 A at rated
voltage
Interrupting
Ratings
Nominal Cold
DCR(Ω)
1
0.210
0.101
0.057
0.042
0.030
0.022
0.018
0.014
0.013
0.010
0.008
0.006
Nominal I
2
t
(A
2
s)
2
0.08
0.11
0.24
0.56
0.72
1.10
2.08
2.63
3.25
4.00
5.00
7.00
Marking
(Optional)
3
E
G
I
J
K
L
M
T
N
O
P
R
1. Measured at ≤ 10% rated current and 25
o
C ambient.
2. Melting I
2
t at 1000% of current rating.
3. Green Marking Character Code.
Website:
www.aemchina.com & www.aemcomponents.com
22
Rev. Sep. 15
SolidMatrix
®
Surface Mount Fuses
HI Series (High Inrush), 0603 Size

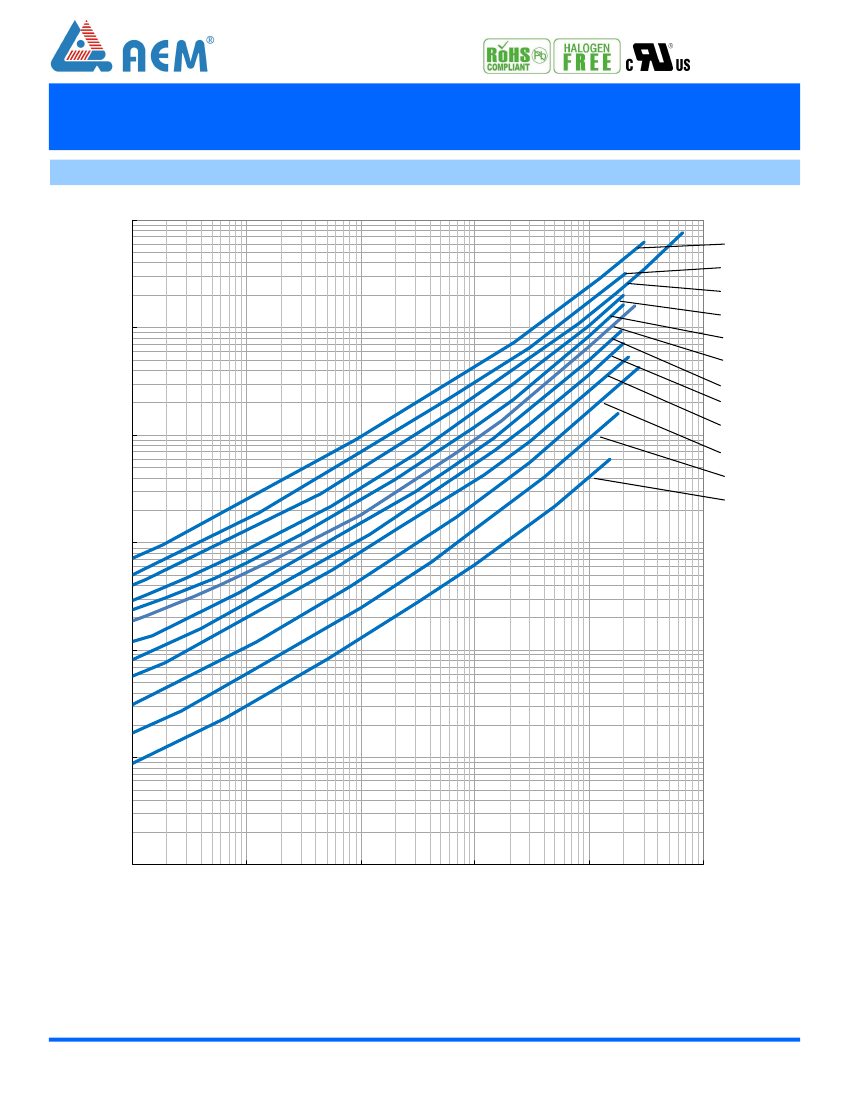

Average Pre-arcing Time Curves:
1.0 A
1.5 A
2.0 A
2.5 A
3.0 A
3.5 A
4.0 A
4.5 A
5.0 A
6.0 A
7.0 A
8.0 A
100
10
Pre-arcing Time (s)
1
0.1
0.01
0.001
1
10
Current (A)
100
1000
23
Website:
www.aemchina.com & www.aemcomponents.com
