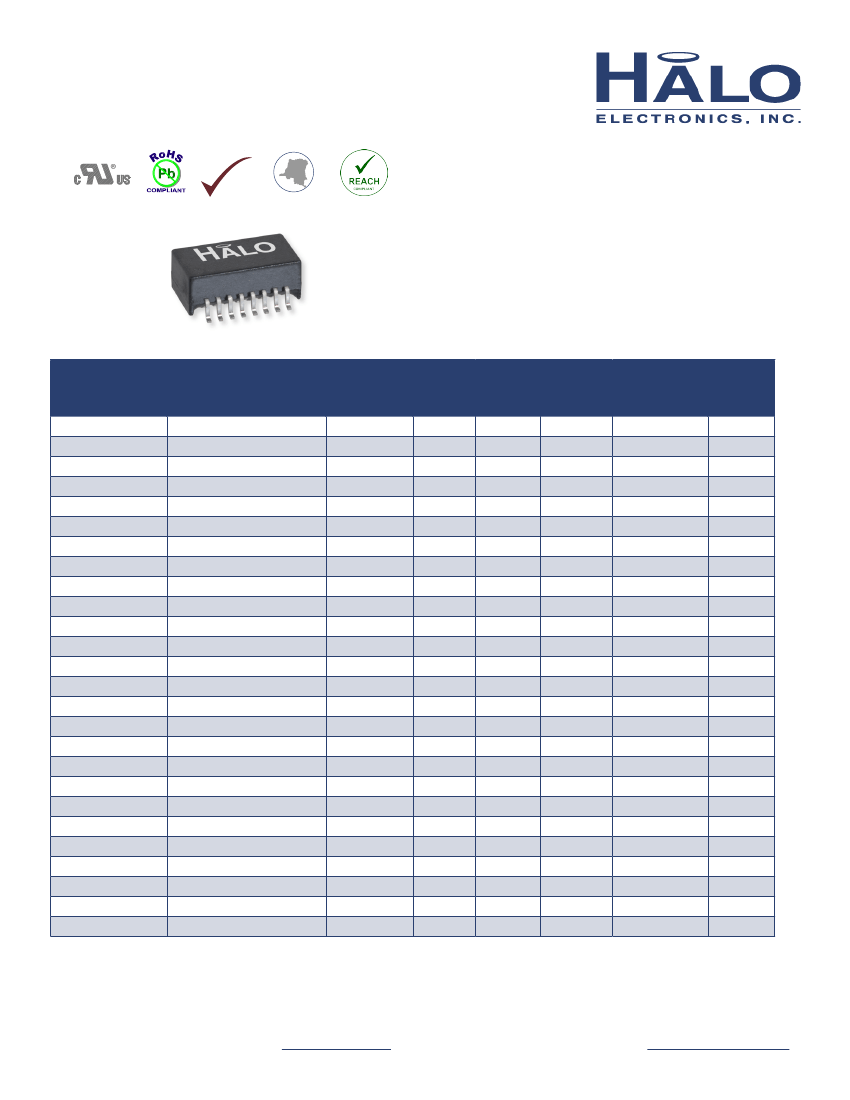

10BASE-T Isolation Modules
16 Pin SOIC Package 10BASE-T Transformers
RoHS
Compliant
Conflict
FREE
Product Features:
Standard series of 16 Pin SOIC Isolation
Modules to meet the isolation and imped-
ance matching requirements of IEEE 802.3 for
10BASE-T
100% Compliance Testing
1500Vrms Hi-Pot
Patented Open Frame Construction
UL/EN60950 Recognized
Part Number
TG04-1006N1LF
TG04-1006N1RL
TG04-2006N1LF
TG04-2006N1RL
TG41-2006NLF
TG41-2006NRL
TG42-1406N1LF
TG42-1406N1RL
TG43-1406NLF
TG43-1406NRL
TG62-1006N1LF
TG62-1006N1RL
TG66-1006NLF
TG66-1006NRL
TG74-1406N1LF
TG74-1406N1RL
TG75-1406NLF
TG75-1406NRL
TG81-1006NLF
TG81-1006NRL
TG84-2006N1LF
TG84-2006N1RL
TG86-2006NLF
TG86-2006NRL
TG92-2006N1LF
TG92-2006N1RL
Turns Ratio ±3%
(1-3:16-14) / (6-8:11-9)
(1CT:1CT) / (1CT:1CT)
(1CT:1CT) / (1CT:1CT)
(1CT:1CT) / (1CT:1CT)
(1CT:1CT) / (1CT:1CT)
(1CT:1CT) / (1CT:2.5CT)
(1CT:1CT) / (1CT:2.5CT)
(1CT:1CT) / (1CT:1.41CT)
(1CT:1CT) / (1CT:1.41CT)
(1CT:1CT) / (1CT:1.41CT)
(1CT:1CT) / (1CT:1.41CT)
(2CT:1CT) / (1CT:1CT)
(2CT:1CT) / (1CT:1CT)
(2CT:1CT) / (1CT:1CT)
(2CT:1CT) / (1CT:1CT)
(1CT:1CT) / (1CT:2CT)
(1CT:1CT) / (1CT:2CT)
(1CT:1CT) / (1CT:2CT)
(1CT:1CT) / (1CT:2CT)
(1CT:1CT) / (1CT:1CT)
(1CT:1CT) / (1CT:1CT)
(1CT:2CT) / (1CT:1CT)
(1CT:2CT) / (1CT:1CT)
(1CT:2CT) / (1CT:1CT)
(1CT:2CT) / (1CT:1CT)
(1CT:1CT) / (1CT:2.5CT)
(1CT:1CT) / (1CT:2.5CT)
PRI
PRI/SEC
PRI
OCL
Cw/w
LL
Temp
(μH)
(pF max) (μH max) Schematic
Range
RoHS
1
100 Typ
9
0.4
A
0 to +70°C
Pb-Free
100 Typ
9
0.4
A
0 to +70°C RoHS (7a)
200 Typ
15
0.3
A
-40 to +85°C Pb-Free
200 Typ
15
0.3
A
-40 to +85°C RoHS (7a)
200/35 Min
15
0.4
B
-40 to +85°C Pb-Free
200/35 Min
15
0.4
B
-40 to +85°C RoHS (7a)
140 Typ
15
0.4
A
0 to +70°C
Pb-Free
140 Typ
15
0.4
A
0 to +70°C RoHS (7a)
140 Typ
15
0.4
B
0 to +70°C
2
Pb-Free
140 Typ
15
0.4
B
0 to +70°C
2
RoHS (7a)
150 Min
10
0.6
A
0 to +70°C
Pb-Free
150 Min
10
0.6
A
0 to +70°C RoHS (7a)
150 Min
10
0.9
B
0 to +70°C
Pb-Free
150 Min
10
0.9
B
0 to +70°C RoHS (7a)
140/25 Typ
15
0.4
A
-40 to +85°C Pb-Free
140/25 Typ
15
0.4
A
-40 to +85°C RoHS (7a)
140/25 Typ
15
0.4
B
-40 to +85°C Pb-Free
140/25 Typ
15
0.4
B
-40 to +85°C RoHS (7a)
100 Typ
9
0.3
B
0 to +70°C
Pb-Free
100 Typ
9
0.3
B
0 to +70°C RoHS (7a)
50/200 Min
11
0.15
A
-40 to +85°C Pb-Free
50/200 Min
11
0.15
A
-40 to +85°C RoHS (7a)
50/200 Min
11
0.3
B
-40 to +85°C Pb-Free
50/200 Min
11
0.3
B
-40 to +85°C RoHS (7a)
200/35 Min
15
0.4
A
-40 to +85°C Pb-Free
200/35 Min
15
0.4
A
-40 to +85°C RoHS (7a)
Notes:
1. Pb-Free parts are RoHS 6/6 compliant. RoHS (7a) parts contain lead per exemption 7a which is set to expire in July 2016.
2. TG43-1406NRL can be operated in –40 to +85ºC environment when using the Cirrus Logic CS8900A-IQ (5V) Transceiver.
3. Parts with RL suffix are not recommended for new designs.
4. Please contact the factory or your local representative for individual datasheets or additional information.
For additional information contact your
local representative,
or HALO’s support staff at (650) 903-3800 or
info@haloelectronics.com

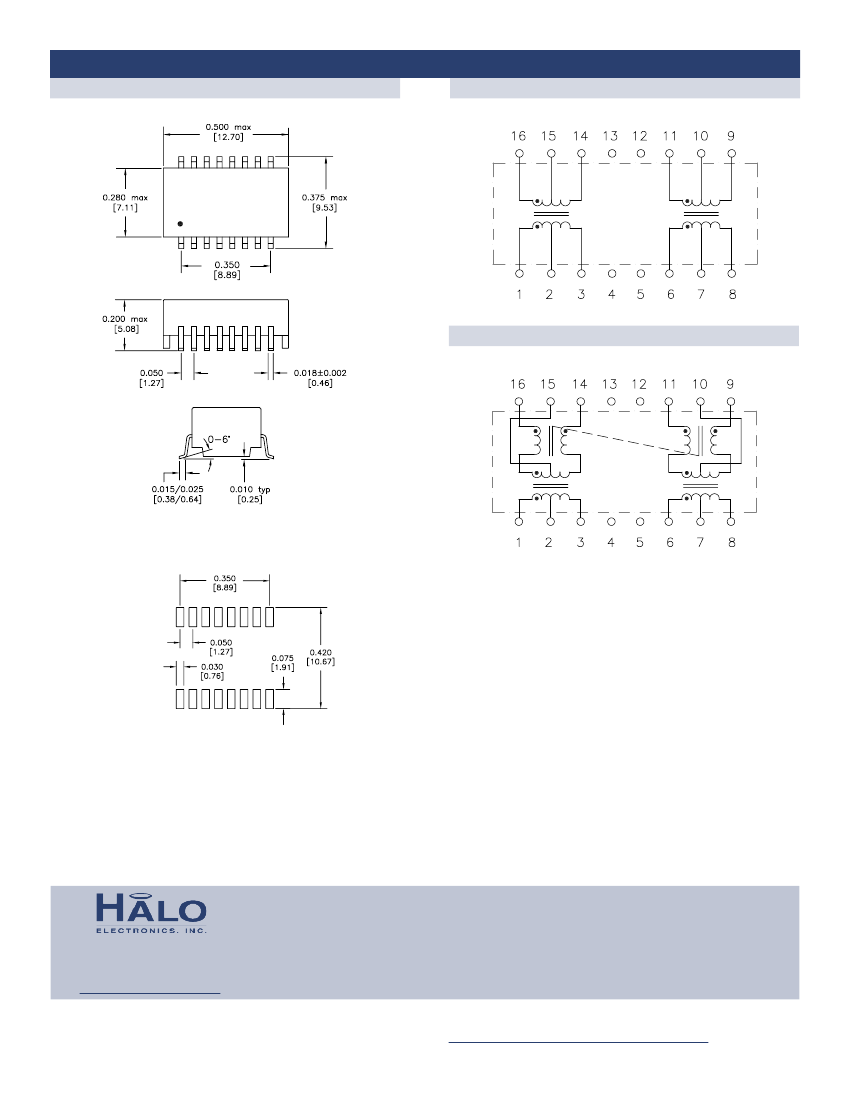

Package N/N1
10BASE-T Isolation Modules
Schematic A
Schematic B
Dimensions: inch [mm]
Co-Planarity: 0.004 [0.10]
Recommended
Solder Pad Layout
US Patent Numbers
5,656,985
6,297,721 B1
6,297,720 B1
6,320,489 B1
6,344,785 B1
6,662,431 B1
2880 Lakeside Drive #116
Santa Clara, CA 95054
(650) 903-3800
www.haloelectronics.com
HALO
®
Electronics is a leading supplier of high quality communication magnetics
including signal transformers, filters, CMR chokes, PoE power transformers, DC/
DC isolation modules, and integrated Ethernet connectors. HALO’s high quality
and competitively priced leading edge technology solutions are manufactured
in ISO9001 and ISO14001 factories.
© Copyright 2015 HALO Electronics, Inc. All rights reserved.
Revised 08/2015REVB. Download the latest version at
www.haloelectronics.com/pdf/smd10baset.pdf
