597-5213-402F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 597-5213-402F

Preview

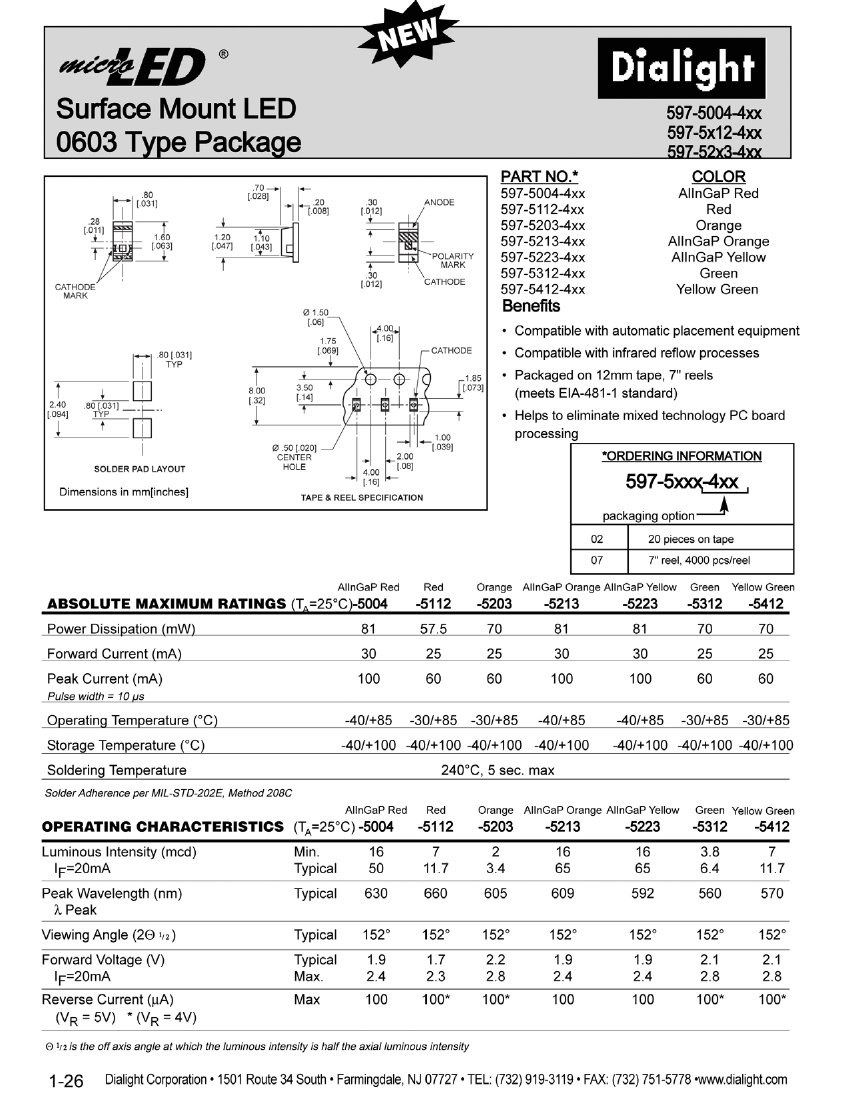

597-5213-402F: DescriptionStandard LEDs - SMD Orange Diffused; CategoryLED optoelectronic/LED photoelectric; File Size582KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

597-5213-402F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	597-5213-402F	-	-	View	Buy Now

597-5213-402F Overview

Standard LEDs - SMD Orange Diffused

597-5213-402F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	DIALIGHT
package instruction	ROHS COMPLIANT, SMT, 2 PIN
Reach Compliance Code	compliant
Other features	SUPPORTS INFRARED
color	BRIGHT ORANGE
color@wavelength	Amber
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.4 V
JESD-609 code	e4
Lens type	DIFFUSED WHITE
Nominal luminous intensity	65.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.7 mm
method of packing	TAPE AND REEL 7"
peak wavelength	609 nm
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
Terminal surface	Copper/Nickel/Gold (Cu/Ni/Au)
Terminal pitch	1.6 mm
perspective	152 deg
Base Number Matches	1

Preview

Download Datasheet

View All

597-5213-402F Related Products

	597-5213-402F	597-5412-402F	597-5004-402F	PCF-W1206LF-12-4533-T-P-LT	597-5203-402F
Description	Standard LEDs - SMD Orange Diffused	Standard LEDs - SMD Yellow-Green Diffused	Standard LEDs - SMD Red Diffused	Fixed Resistor, Thin Film, 0.125W, 453000ohm, 150V, 0.01% +/-Tol, 10ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT	Standard LEDs - SMD Orange Diffused
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT, SMT, 2 PIN	ROHS COMPLIANT, SMT, 2 PIN	ROHS COMPLIANT, SMT, 2 PIN	CHIP	ROHS COMPLIANT, SMT, 2 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED	PRECISION	SUPPORTS INFRARED
JESD-609 code	e4	e4	e4	e3	e4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-30 °C	-40 °C	-55 °C	-30 °C
method of packing	TAPE AND REEL 7"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TR, Paper	TAPE AND REEL 7\"
surface mount	YES	YES	YES	YES	YES
Terminal surface	Copper/Nickel/Gold (Cu/Ni/Au)	Copper/Nickel/Gold (Cu/Ni/Au)	Copper/Nickel/Gold (Cu/Ni/Au)	Matte Tin (Sn) - with Nickel (Ni) barrier	Copper/Nickel/Gold (Cu/Ni/Au)
Maker	DIALIGHT	DIALIGHT	DIALIGHT	-	-
color	BRIGHT ORANGE	YELLOW GREEN	BRIGHT RED	-	ORANGE
color@wavelength	Amber	Green	Orange	-	Amber
Configuration	SINGLE	SINGLE	SINGLE	-	SINGLE
Maximum forward current	0.03 A	0.025 A	0.03 A	-	0.025 A
Maximum forward voltage	2.4 V	2.8 V	2.4 V	-	2.8 V
Lens type	DIFFUSED WHITE	DIFFUSED WHITE	DIFFUSED WHITE	-	DIFFUSED WHITE
Nominal luminous intensity	65.0 mcd	11.7 mcd	50.0 mcd	-	3.4 mcd
Number of functions	1	1	1	-	1
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	-	SINGLE COLOR LED
total height	0.7 mm	0.7 mm	0.7 mm	-	0.7 mm
peak wavelength	609 nm	570 nm	635 nm	-	605 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
size	1.2 mm	1.2 mm	1.2 mm	-	1.2 mm
Terminal pitch	1.6 mm	1.6 mm	1.6 mm	-	1.6 mm
perspective	152 deg	152 deg	152 deg	-	152 deg
Base Number Matches	1	1	1	-	1
