LXS7-PW50-0041N datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> LXS7-PW50-0041N

LXS7-PW50-0041N: DescriptionHigh Power LEDs - White Cool White, 5000K; CategoryLED optoelectronic/LED; File Size2MB，20 Pages; ManufacturerLumileds; Websitehttps://www.lumileds.com/

Download Datasheet Parametric View All

LXS7-PW50-0041N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LXS7-PW50-0041N	-	-	View	Buy Now

LXS7-PW50-0041N Overview

High Power LEDs - White Cool White, 5000K

LXS7-PW50-0041N Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumileds
Product Category	High Power LEDs - White
RoHS	Details
Package / Case	SMD-12
Illumination Color	White (Cool White)
Wavelength/Color Temperature	5000 K
Luminous Intensity	-
Luminous Flux/Radiant Flux	8600 lm
Color Rendering Index - CRI	70
Viewing Angle	105 deg
Lens Color/Style	Water Clear
If - Forward Current	700 mA
Vf - Forward Voltage	115 V
Power Rating	-
Mounting Style	SMD/SMT
Length	34.15 mm
Width	20.9 mm
Height	1.31 mm
Maximum Operating Temperature	+ 120 C
Minimum Operating Temperature	- 40 C
Packaging	Tray
Features	-
Type	LUXEON S5000
LED Size	34.15 mm x 20.9 mm x 1.31 mm
Lens Shape	Round Flat
Color Temperature	5000 K
Lens Dimensions	17 mm
Factory Pack Quantity	60
Vr - Reverse Voltage	-

Preview

Download Datasheet

View All

ILLUMINATION

FO T

R E

N CO

EW M

D E

ES N

IG D

• LUXEON CoB Core Range

• LUXEON CoB Core Range – High Density

• Matrix Platform light engines

For NEW designs consider

these replacement products:

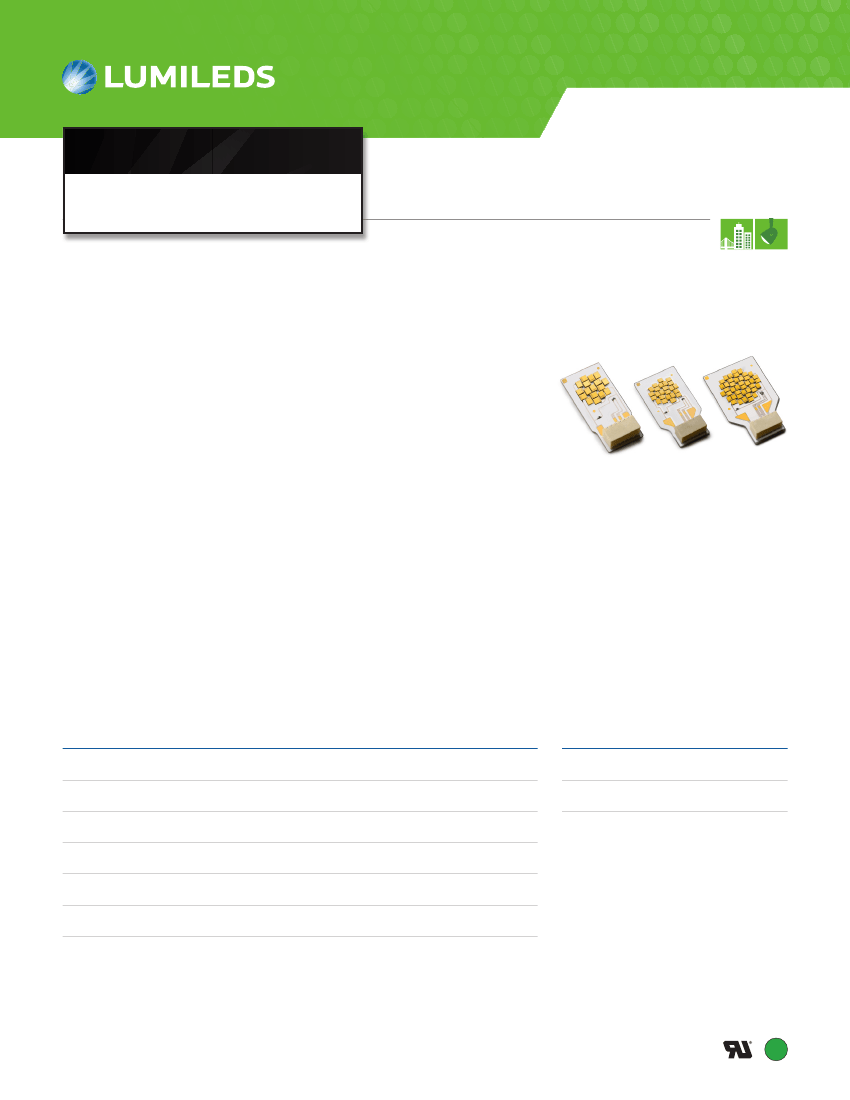

LUXEON S

Best punch and easy integration

LUXEON S is a ridgid fully integrated solution optimized for lighting

applications requiring punch for high center beam intensity and

uniformity. The turnkey solution minimizes time to market and simplifies

supply chain by reducing optical and mechanical design efforts with

electrical connectors. Combined with LUXEON Z ES LEDs, LUXEON S

provides the same powerful optical performance guaranteed by LUXEON

LEDs. The overall solution delivers optimized performance in combination

with the quality of light needed for distributed light source applications.

FEATURES AND BENEFITS

PRIMARY APPLICATIONS

Architectural

Spotlights

1000 to 8000 lumen packages for a range of options

Greater than 80 R9, lights merchandises up with vivid color

3-step MacAdam ellipse color binning ensures uniform optical performance

On board connectors allow solderless assembly

High efficacy for sustainable design

UL approved solderless mounting clamp for simple assembly

COMPLIANT

RoHS

Table of Contents

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Product Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Average Lumen Maintenance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

FO T

R E

N CO

EW M

D E

ES N

IG D

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Relative Spectral Distribution vs . Wavelength Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Relative Light Output Characteristics over Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Typical Forward Current Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Typical Relative Luminous Flux vs . Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Typical Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Color Bin Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Final Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
