LMC080CTP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LMC080CTP

LMC080CTP: DescriptionLED Light Pipes Light Pipe Clear LMC080CTP; CategoryLED optoelectronic/LED photoelectric; File Size64KB，1 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com; Environmental Compliance

Download Datasheet Parametric View All

LMC080CTP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LMC080CTP	-	-	View	Buy Now

LMC080CTP Overview

LED Light Pipes Light Pipe Clear LMC080CTP

LMC080CTP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Visual Communications Company, LLC
Reach Compliance Code	compliant
Optoelectronic device types	OPTICAL PIPE

Preview

Download Datasheet

View All

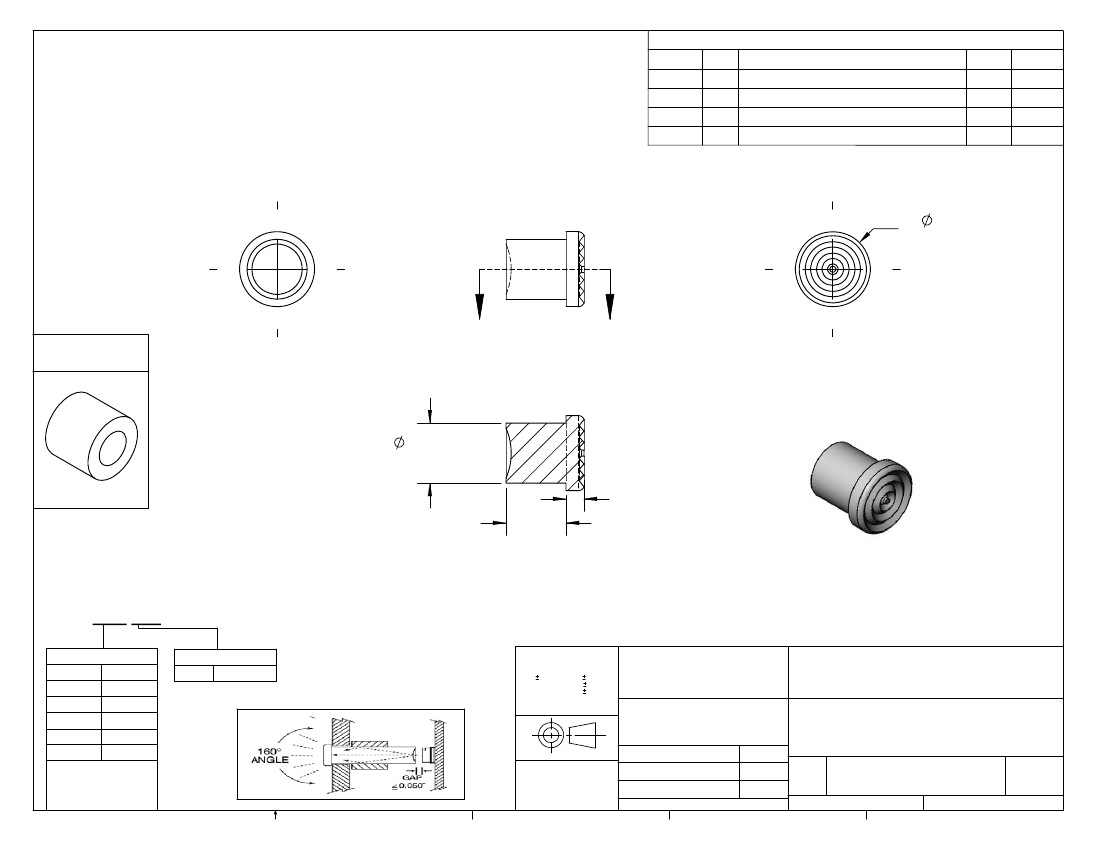

NOTES:

1. MOUNTING: Mounts in .102" ( 2.59mm)hole on 3/16" centers

2. Use Grommet Retainer RTN100 (sold seperately)

3. Custom lengths avavilable upon request (Minimum order quantity may apply)

4. U.S. & Foreign Pat. Issued & Pend.

ECN #

REV

N/A

INITIAL RELEASE

REVISIONS

DESCRIPTION

DATE

10/27/06

INITIALS

ADD 150 LENGTH;RENAMED DWG;UPDATE FORMAT 10/24/08

ADDED 010 LENGTH

11/26/08

001

REVISED PER ECR 111009AZ01

4/23/10

.125

(3.175mm)

GROMMET RETAINER

(ORDER SEPERATELY)

+.001

- .005

(2.540mm)

.100

RTN 100

.XXX

.030

(.762mm)

SECTION A-A

ORDERING CODE

LMC XXX CTP

LENGTH CODE

020

.200"

040

.400"

060

.600"

080

.800"

100

1.00"

120

1.20"

COLOR

CTP CLEAR

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES:

MATERIAL

ANGLES

FINISH

DECIMALS

.020

.XX .010

.XXX .005

ACRYLIC

UL 94-HB

FINISH

VISUAL COMMUNICATIONS COMPANY

190 Bosstick Boulevard, Suite 101 San Marcos, CA 92069 USA

Phone (760) 560-1300 Fax (760) 560-1301 email vccsales@vcclite.com

BREAK ALL CORNERS AND SHARP

EDGES .030 MAX

TITLE:

SEE NOTES

2.5 MM MICROLITEPIPE

DATE

4/2310

5/4/10

THIRD ANGLE PROJECTION

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

VISUAL COMMUNICATIONS COMPANY, INC.

ANY REPRODUCTION IN PART OR AS A

WHOLE WITHOUT THE WRITTEN PERMISSION

OF VISUAL COMMUNICATIONS COMPANY, INC

IS PROHIBITED.

APPROVALS

DRAWN

CHECKED

K.Howard

DPZ

CUSTOM LENGTHS

AVAILABLE UPON

REQUEST

(SEE NOTE 3)

SIZE

DWG. NO.

REV

SCALE: 6:1

LMC XXX CTP

001

DO NOT SCALE DRAWING

SHEET 1 OF 1
