CTX0-33-1A-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> CTX0-33-1A-R

CTX0-33-1A-R: DescriptionCoupled Inductors IND/XFMR,OP+ SZ 1,0.33UH; CategoryPassive components; File Size714KB，9 Pages; ManufacturerEaton

Download Datasheet Parametric View All

CTX0-33-1A-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CTX0-33-1A-R	-	-	View	Buy Now

CTX0-33-1A-R Overview

Coupled Inductors IND/XFMR,OP+ SZ 1,0.33UH

CTX0-33-1A-R Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Eaton
Product Category	Coupled Inductors
Maximum DC Resistance	50 Ohms
Product	Power Inductors
Unit Weight	0.048000 oz

Preview

Download Datasheet

View All

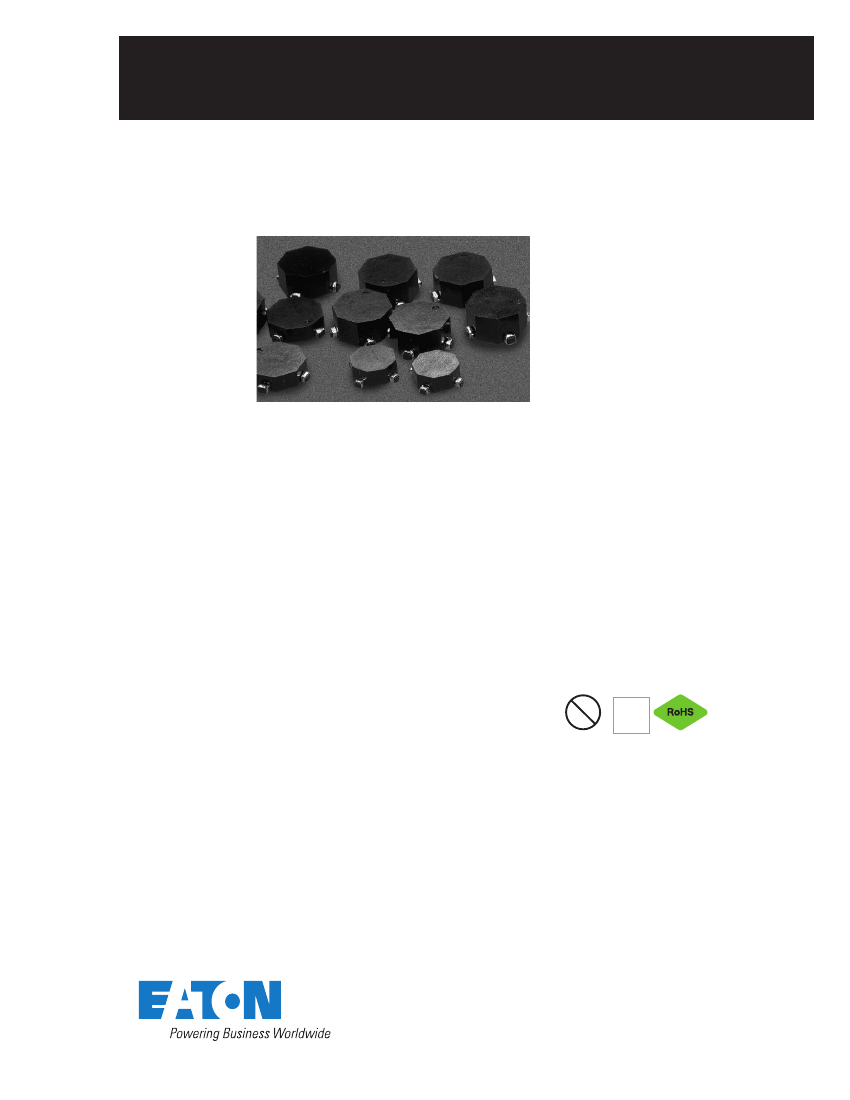

Technical Data

DS4314

Effective

July

2017

Supersedes

June

2017

ECONO-PAC™/OCTA-PAC® OCTA-PAC® PLUS

Dual winding toroid power inductors/transformers

Applications

•

Computer and portable power devices

LCD panels, DVD players

Inductor: DC-DC converters

Buck, boost, forward, and resonant converters

Noise filtering and filter chokes

Transformers: 1:1 300 Vdc isolation, flyback,

sepic

Part number

•

Product features

•

Surface mount magnetics that can be used as

single or coupled inductors or 1:1 transformers

that provide isolation between two windings

OCTA-PAC’s are designed around high

frequency, low loss core material

ECONO-PAC’s are a lower cost version of OCTA-

PAC’s offering high saturation flux density,

Iron

powder

core material

OCTA-PAC PLUS’s offer higher current ratings

and higher saturation flux densities than OCTA-

PAC and ECONO-PAC, Amorphous metal core

material

Secure 4 Terminal Mounting

Inductor more versatile inductance combination

by series or parallel connections

•

CTX___-__ -R(First three digits CTX; Second

2-3 digits = Inductance Value; Last 1-2 digits,

product size & type)

-R indicates RoHS compliant

Product

size/type

•

CTX___-1 (-1 = size; no suffix = OCTA-PAC®)

CTX___-1P (-1 = size; P suffix = ECONO-

PAC™)

CTX___-1A (-1 = size; A suffix = OCTA-PAC®

PLUS)

Environmental data

•

lus

P )

ac 3A

be is

-P , -

cto ory

cta 2A

O ,-

d O ent

A tinue inv

(-1 on

til

isc or un

d 7

01 ted.

2 le

Storage temperature range (component):

-40 °C to +125 °C

Operating temperature range: -40 °C to +125 °C

(ambient plus self-temperature rise)

Solder reflow temperature:

J-STD-020 (latest revision) compliant

HALOGEN

FREE
