REVISIONS
35
REV
A3
ECO
-
DESCRIPTION
RELEASE NEW DWG FORMAT
DATE
18/OCT/13
BY
DRP
APPR
-
TITLE:

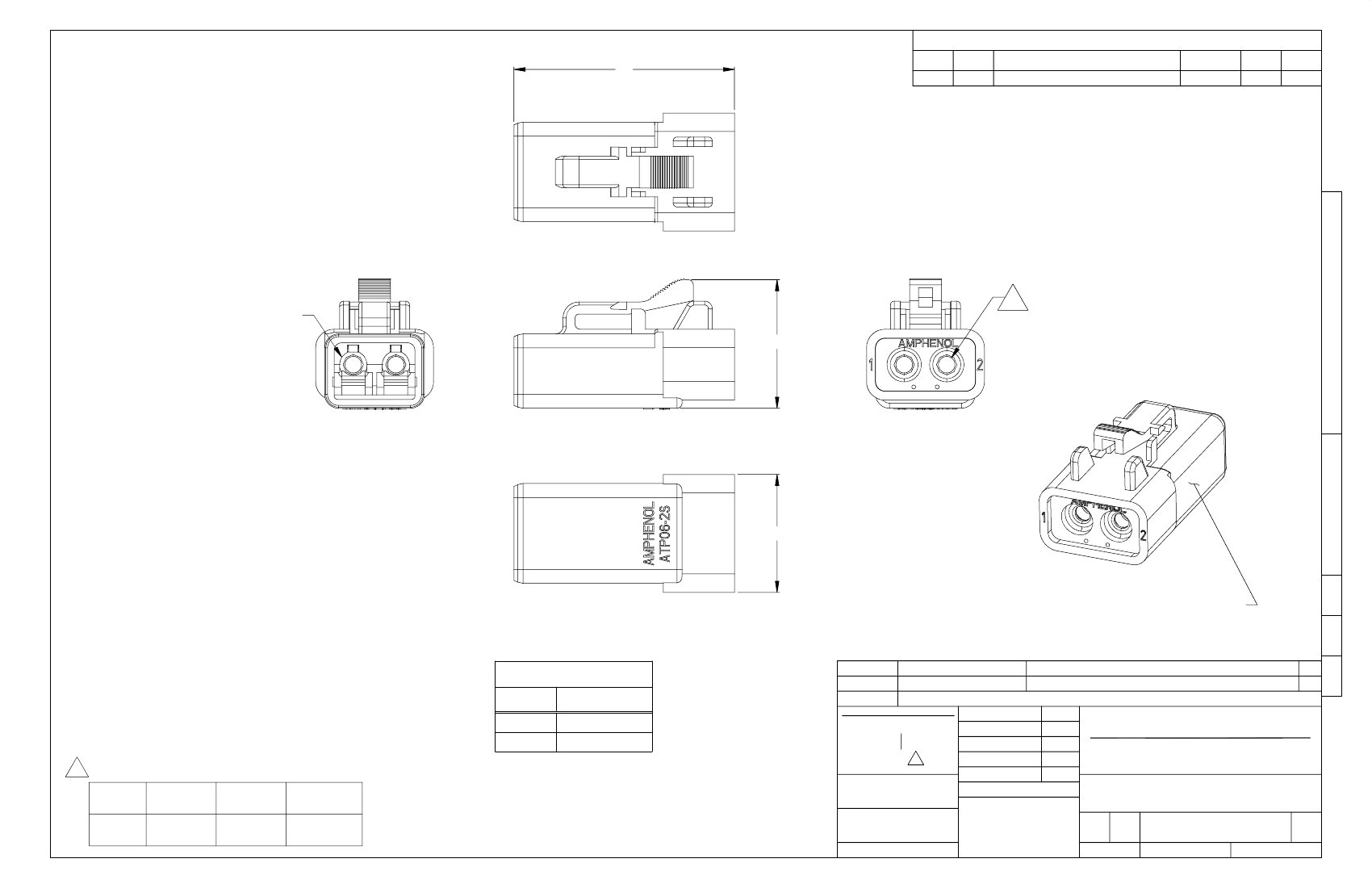

PLUG, 2 SOCKET, ATP SERIES
REQUIRES CONTACT
RETENTION WEDGE AWP-2S
20.7
6
DWG NO:
NOTES: UNLESS OTHERWISE SPECIFIED
ATP06-2S-XXX
1. MATERIAL:
HOUSING: THERMOPLASTIC
SEAL: SILICONE RUBBER
2. MODIFICATIONS: N/A
3. SPECIFICATIONS:
3.1 CURRENT RATING: 25 AMPS
3.2 OPERATING TEMPERATURE: -55°C TO +125°C
3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.
3.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )
3.6 MATING CYCLE DURABILITY: 100 CYCLES
3.7 RoHS COMPLIANT
4. MATING PART: ATP04-2P* RECEPTACLE.
( * = MODIFICATIONS AND COLORS )
5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
6 CONTACT SIZE AND REAR SEAL WIRE RANGE:
CONTACT
SIZE
12
MIN. INSUL
O.D.
3.40 mm
(.134 in)
MAX. INSUL
O.D.
4.95 mm
(.195 in)
TYPICAL
WIRE RANGE
10 - 14 AWG
18.6
REV:
REFER TO PART NUMBER CHART FOR
AVAILABLE CONNECTOR COLORS
A3
SH:
1
OF:
PART NUMBER CHART
COLOR
GREY
BLACK
PART NUMBER
ATP06-2S
ATP06-2S-BLK
SEE PART NUMBER CHART
DESCRIPTION
PART NUMBER
QUANTITY
MATERIALS LIST
UNLESS OTHERWISE SPECIFIED
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.30
Fractions ±1/64
2 PL DEC ±0.15
Angles ±1°
3 PL DEC ±0.08
3) Note reference =
X
ITEM
1
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
DATE
D.PARKS
18/OCT/13
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
STANDARD MOLDED COLOR IS GREY. ADDITIONAL
COLOR ( BLACK ) IS AVAILABLE VIA SPECIAL ORDER.
MATERIAL SPECIFICATIONS:
CUSTOMER:
PLUG, 2 SOCKET, ATP SERIES
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
TYPE
DWG NO:
REVISION
B C-
NONE
ATP06-2S-XXX
SHEET
A3
1
OF
1
