5962-9095702MXA datasheet, PDF

Datasheet> All Categories > converter> 5962-9095702MXA

5962-9095702MXA: DescriptionADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS,; Categoryconverter; File Size643KB，18 Pages; ManufacturerCirrus Logic; Websitehttp://www.cirrus.com

Download Datasheet Parametric Compare View All

5962-9095702MXA Overview

ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS,

5962-9095702MXA Parametric

Parameter Name	Attribute value
Maker	Cirrus Logic
Reach Compliance Code	unknown
Maximum analog input voltage	1 V
Minimum analog input voltage	-1.5 V
Converter type	ADC, FLASH METHOD
JESD-30 code	S-XQCC-J44
JESD-609 code	e0
Maximum linear error (EL)	0.0732%
Nominal negative supply voltage	-5 V
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	44
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY
Output format	PARALLEL, WORD
Package body material	UNSPECIFIED
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Sampling rate	1 MHz
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal location	QUAD
Base Number Matches	1

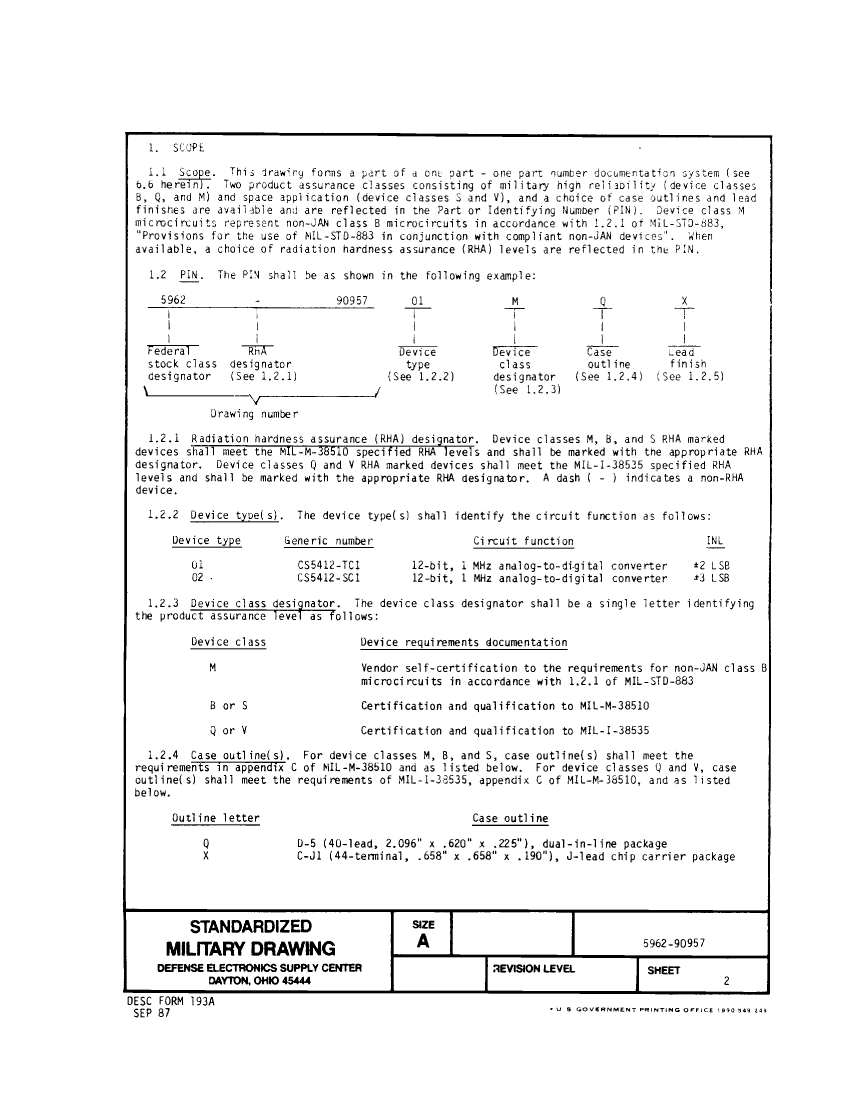

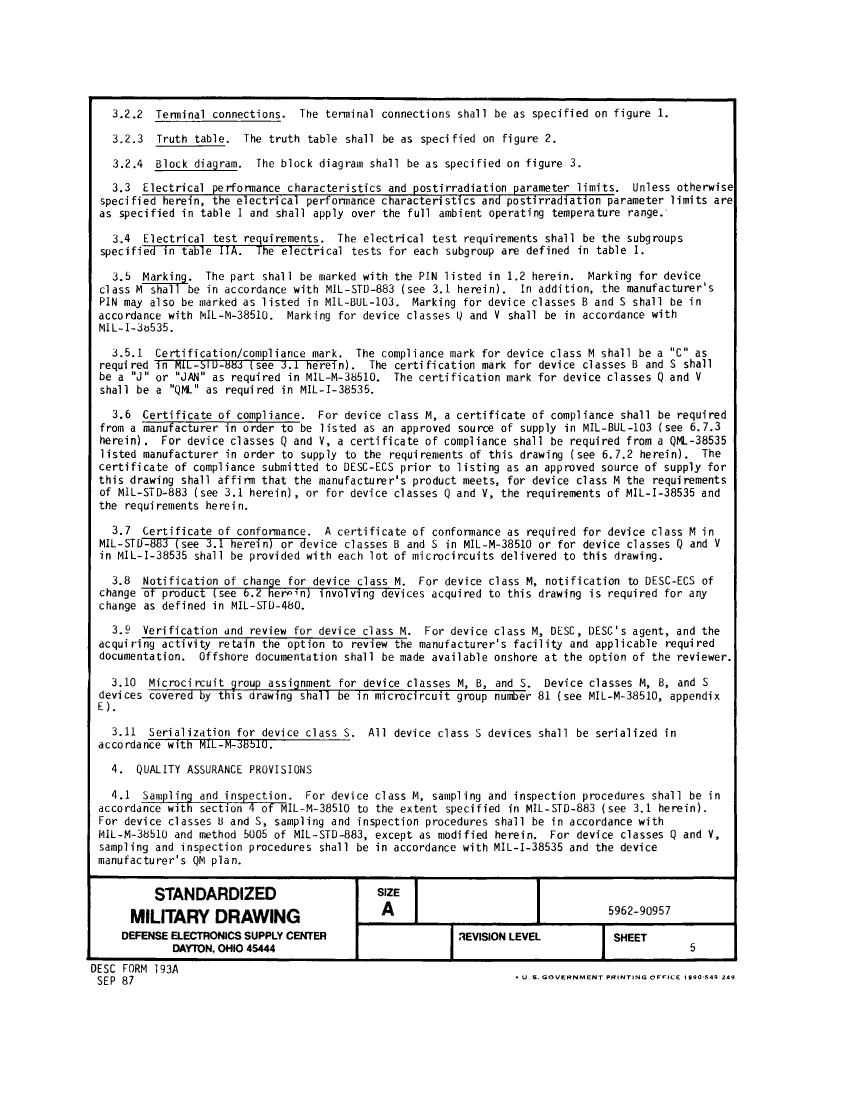

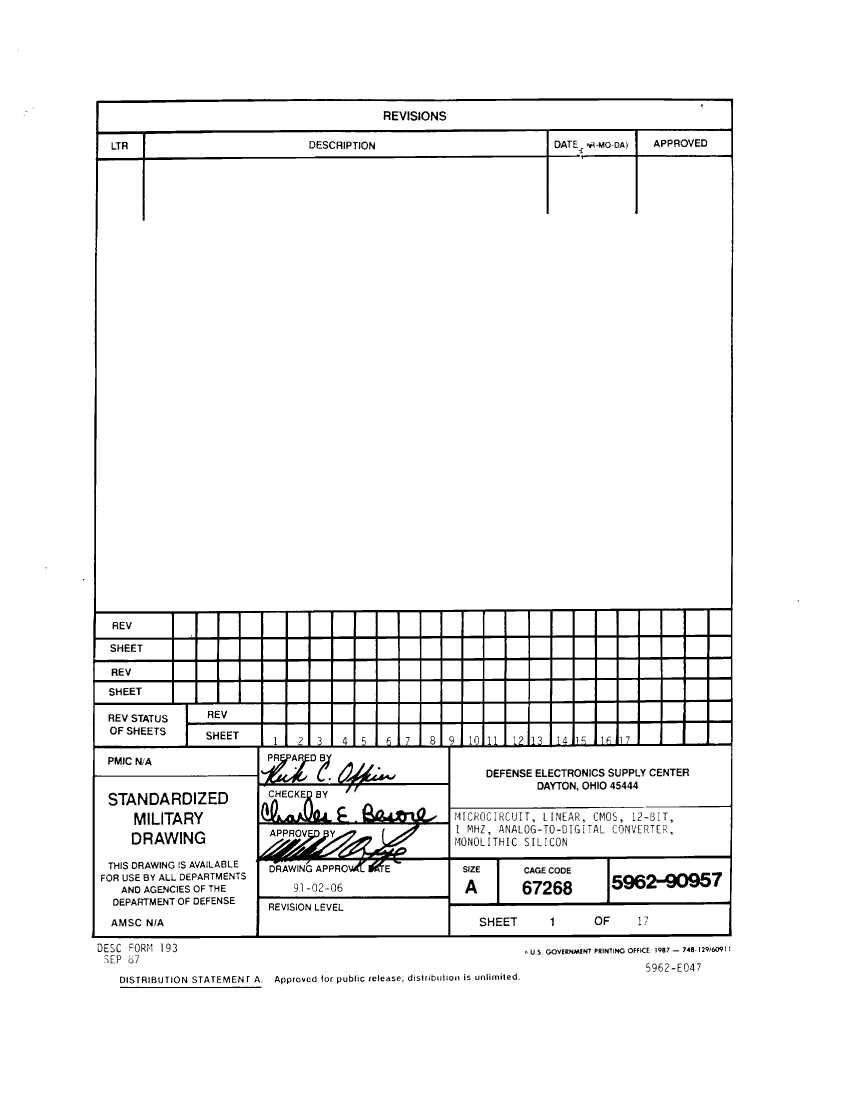

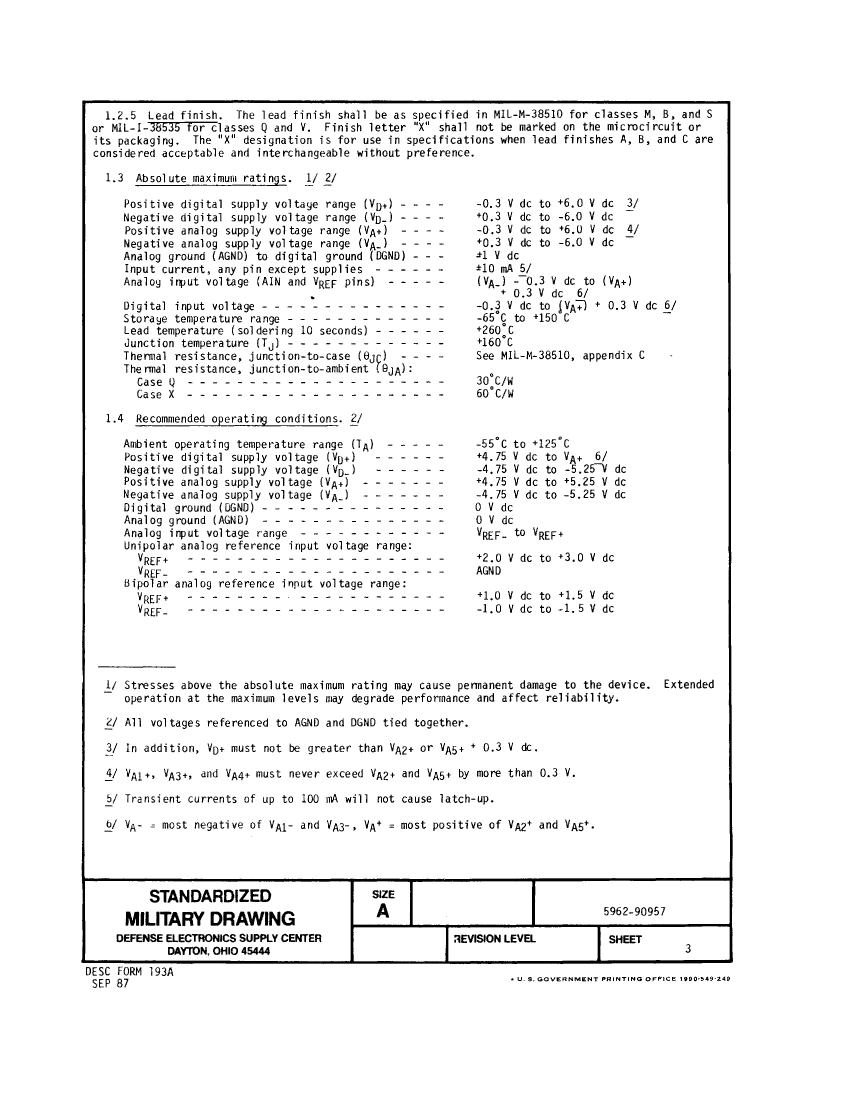

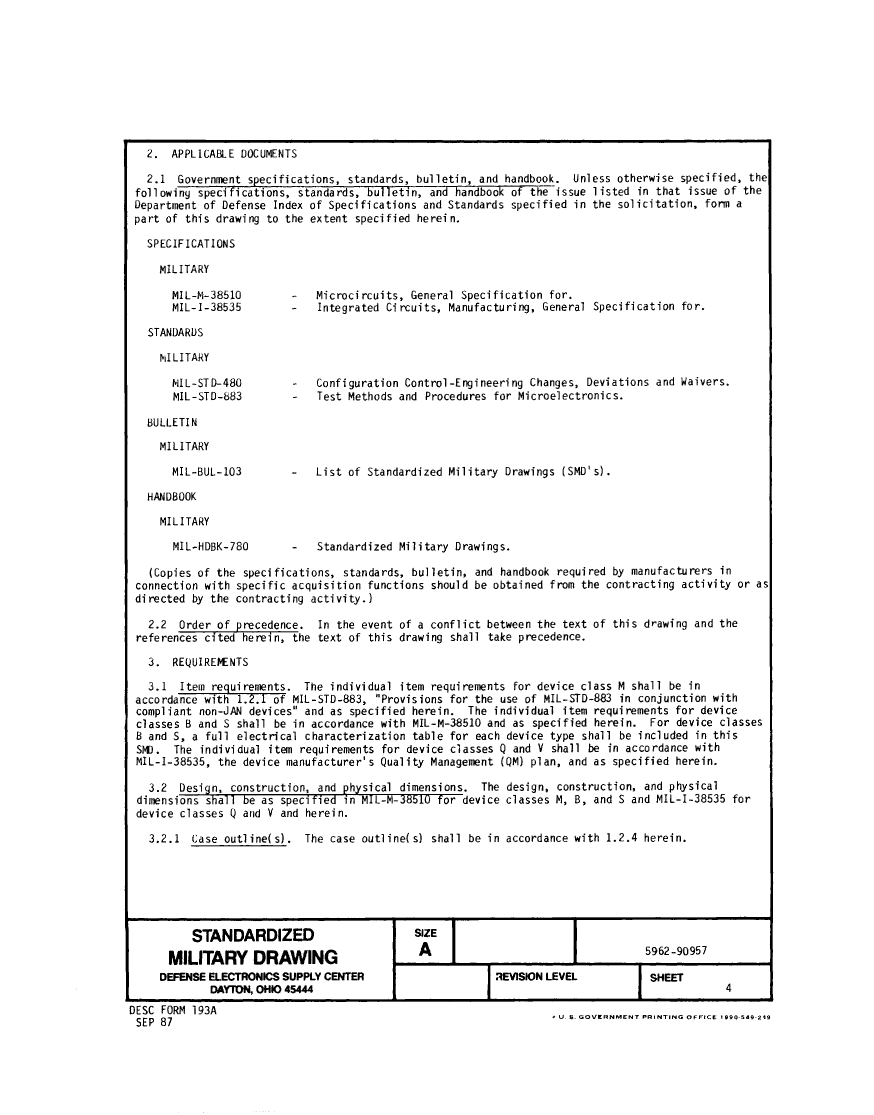

Preview

Download Datasheet

View All

5962-9095702MXA Related Products

	5962-9095702MXA	5962-9095701MXX	5962-9095701MXA	5962-9095701MQA	5962-9095702MXX	5962-9095702MQX	5962-9095701MQX	5962-9095702MQA
Description	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS,	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, LCC-44	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS,	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS,	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, LCC-44	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, DIP-40	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, DIP-40	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog input voltage	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V
Minimum analog input voltage	-1.5 V	-1.5 V	-1.5 V	-1.5 V	-1.5 V	-1.5 V	-1.5 V	-1.5 V
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	S-XQCC-J44	S-XQCC-J44	S-XQCC-J44	R-XDIP-T40	S-XQCC-J44	R-XDIP-T40	R-XDIP-T40	R-XDIP-T40
Maximum linear error (EL)	0.0732%	0.0488%	0.0488%	0.0488%	0.0732%	0.0732%	0.0488%	0.0732%
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of analog input channels	1	1	1	1	1	1	1	1
Number of digits	12	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	44	44	44	40	44	40	40	40
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	QCCJ	QCCJ	QCCJ	DIP	QCCJ	DIP	DIP	DIP
Package shape	SQUARE	SQUARE	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	J BEND	J BEND	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	QUAD	QUAD	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1	1
Maker	Cirrus Logic	-	-	Cirrus Logic	Cirrus Logic	Cirrus Logic	Cirrus Logic	-
