Potential distributors - FTRVB 4-PV /BK - 3270207
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Potential distributors, without actuation lever, Nom. voltage: 250 V, Nominal current: 17.5 A, Cross section:
0.14 mm² - 2.5 mm², AWG: 14 - 26, Connection type: Push-in connection, Number of positions: 2, Number
of connections: 16, Width: 8.3 mm, Length: 64 mm, Color: gray, Color of connection elements: black,
Assembly: NS 35/7,5, NS 35/15

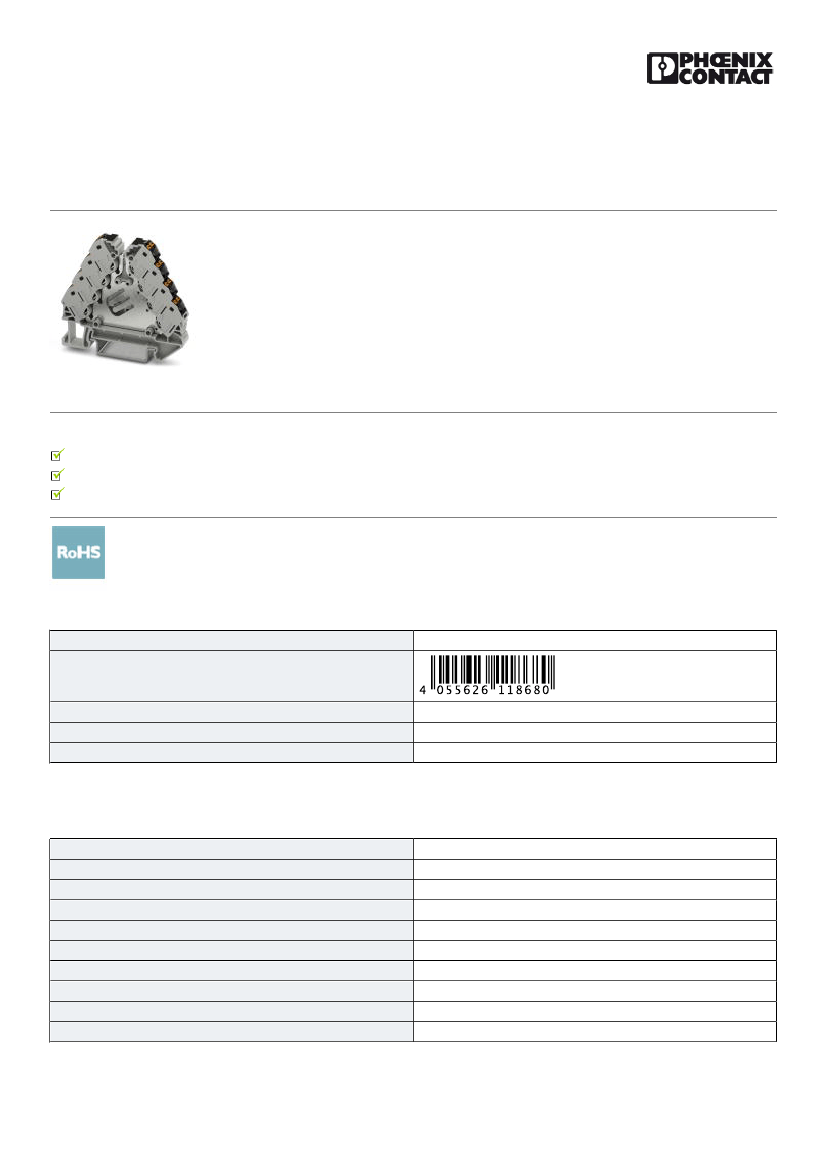

The figure shows a version of the
article
Why buy this product
Bridgeable potential distributor
High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.
Tool-free wiring in a confined space thanks to compact size
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4055626118680
85369010
Made to Order (non-returnable)
10 STK
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Color of connection elements
Insulating material
Flammability rating according to UL 94
Rated surge voltage
2
4
16
1
1.5 mm²
gray
black
PA
V0
4 kV
11/15/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/3270207
Potential distributors - FTRVB 4-PV /BK - 3270207
Technical data
General
Overvoltage category
Insulating material group
Maximum load current
Maximum total current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
III
I
24 A (with a 2.5 mm² conductor cross section)
32 A (The total current of the terminal block must not exceed 32 A)
17.5 A (with 1.5 mm² conductor cross section)
250 V
Yes
130 °C
125 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
27,5 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
8.3 mm
64 mm
55.5 mm
63 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Push-in connection
IEC 60947-7-1
0.14 mm²
2.5 mm²
26
14
0.14 mm²
1.5 mm²
26
14
11/15/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/3270207
Potential distributors - FTRVB 4-PV /BK - 3270207
Technical data
Connection data
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
0.14 mm²
0.14 mm²
1.5 mm²
8 mm ... 10 mm
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
