380-10-120-00-001000

Description
IC & Component Sockets 20P HDR STRIP Solder Cup/Solder Tail
CategoryThe connector    socket
File Size392KB,1 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Environmental Compliance
Download Datasheet Parametric View All

380-10-120-00-001000 Online Shopping

Suppliers Part Number Price MOQ In stock
380-10-120-00-001000 - - View Buy Now

380-10-120-00-001000 Overview

IC & Component Sockets 20P HDR STRIP Solder Cup/Solder Tail

380-10-120-00-001000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Contact to complete cooperationGOLD (10) OVER NICKEL (150)
Contact completed and terminatedGOLD (10) OVER NICKEL (150)
Contact materialNOT SPECIFIED
Device slot typeIC SOCKET
Type of equipment usedSIP20
Shell materialPLASTIC
JESD-609 codee4
Manufacturer's serial number380
Number of contacts20
Base Number Matches1

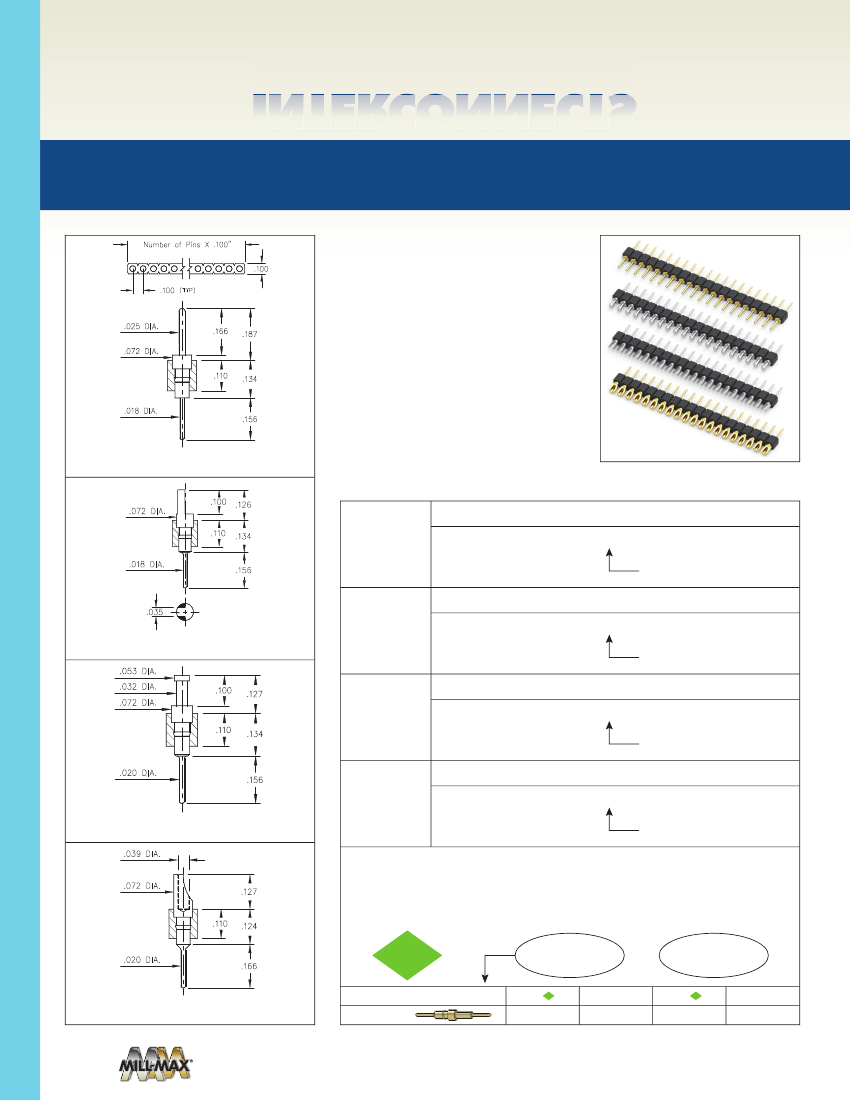

INTERCONNECTS
SERIES 350, 360, 370, 380 • .100” GRID SOLDER TAIL •
SINGLE ROW STRIPS
Series 350, 360, 370 & 380 single row header
strips come in various styles (pin, slotted,
head, turret and solder cup) with pluggable
solder tails
.025 DIA.
.072 DIA.
.110
.134
.166
.187
350...001 uses pin #0290
360...001 uses pin #0282
370...001 uses pin #0700
380...001 uses pin #8000
See pages 215 and 216 for details
.018 DIA.
.156
Insulators are high temperature thermoplastic,
suitable for all soldering operations
FIG. 1
.072 DIA.
.100
.126
ORDERING INFORMATION
Series 350...001
.025” / .018” Dia. Solder Tails
350 XX 1_ _ 00 001000
Specify number of pins
01-64
.134
.110
FIG. 1
Series 360...001
.018 DIA.
.156
.035
Slotted Head / Solder Tail
360 XX 1_ _ 00 001000
FIG. 2
.053 DIA.
.032 DIA.
.072 DIA.
.110
.100
.127
FIG. 2
Series 370...001
Specify number of pins
01-64
Turret / Solder Tail
370 XX 1_ _ 00 001000
FIG. 3
.134
Specify number of pins
01-64
.020 DIA.
.156
Series 380...001
Solder Cup / Solder Tail
380 XX 1_ _ 00 001000
FIG. 4
FIG. 3
.039 DIA.
Specify number of pins
01-64
PAGE 84 | INTERCONNECTS
.072 DIA.
.127
.110
.124
.020 DIA.
.166
2011/65/EU
RoHS - 2
XX=Plating Code
See Below
10
10
µ”
Au
For
Electrical, Mechanical
& Enviromental Data,
See page 264
FIG. 4
SPECIFY PLATING CODE XX=
Pin Plating
90
200
µ”
Sn/Pb
40
200
µ”
Sn
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
