30069-0631 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 30069-0631

30069-0631: DescriptionHeaders & Wire Housings MINIFIT VERT HDR ASSY TPA W/PGS 6CKT; CategoryThe connector; File Size38KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

30069-0631 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	30069-0631	-	-	View	Buy Now

30069-0631 Overview

Headers & Wire Housings MINIFIT VERT HDR ASSY TPA W/PGS 6CKT

30069-0631 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Headers & Wire Housings
RoHS	Details
Product	Headers
Type	Power
Number of Positions	6 Position
Pitch	4.2 mm
Number of Rows	2 Row
Mounting Style	Board Lock
Termination Style	Through Hole
Mounting Angle	Straight
Contact Gender	Pin (Male)
Contact Plating	Tin
Termination Post Length	3.5 mm
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Bulk
Accessory Type	-
Contact Type	-
Current Rating	13 A
Housing Material	Polyester
Voltage Rating	600 V
Contact Material	Brass
Row Spacing	4.2 mm
Factory Pack Quantity	350
Unit Weight	0.065504 oz

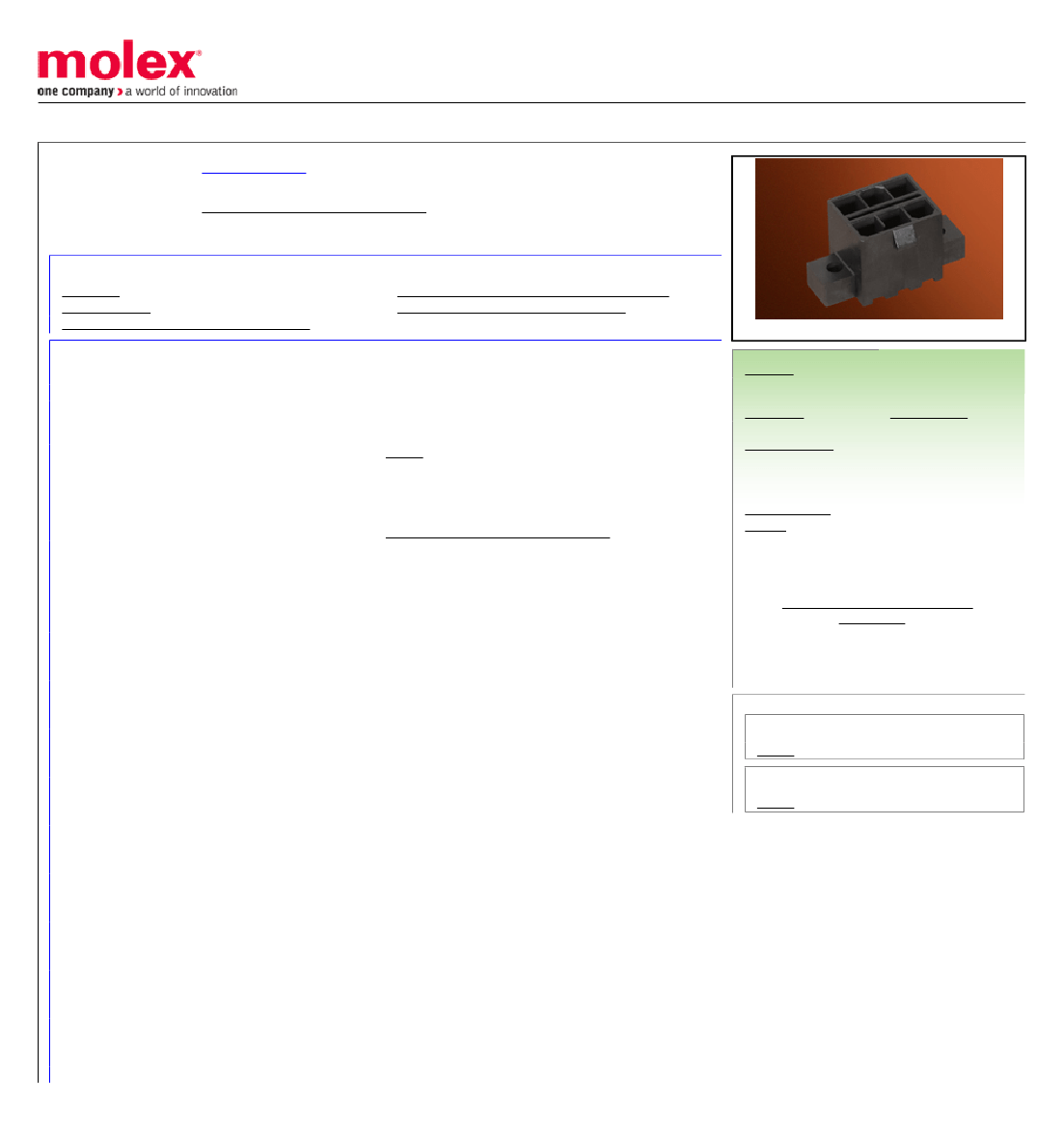

Preview

Download Datasheet

View All

This document was generated on 02/05/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0300690631

Active

Mini-Fit® TPA Plugs and Receptacles

Mini-Fit® TPA Header, 4.20mm Pitch, Dual Row, Vertical, with PCB Mounting Pegs, 6

Circuits, Tin (Sn) Over Nickel (Ni) Plating, without Drain Holes

Documents:

3D Model

Drawing (PDF)

Product Specification PS-5556-003 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Packaging Specification PK-30069-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Headers

30069

Power, Wire-to-Board

Current for wire-to-wire applications = 13.0A max. per

circuit. Current for wire-to-board applications = 9.0A

max. per circuit

Mini-Fit® TPA Plugs and Receptacles

Mini-Fit® TPA

822350400824

Black

94V-0

None

Yes

Brass

Tin

Polyester

1.857/g

Vertical

Yes

1.80mm

Bag

4.20mm

Yes

Partial

-40°C to +105°C

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/79/2015 (17

December 2015)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Green Image

Not Relevant

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Search Parts in this Series

30069 Series

Mates With

30067 Mini-Fit TPA™ Receptacle Housing
