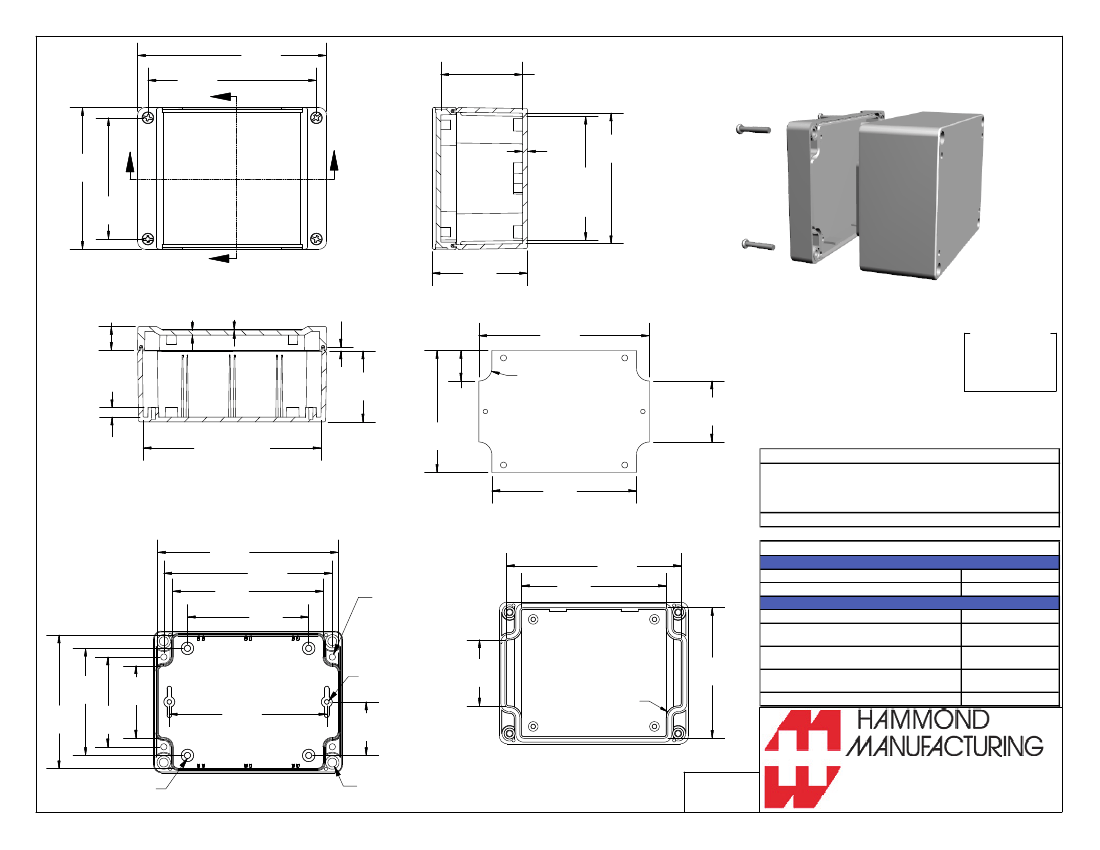

120.00
[4.72]
107.00
[4.21]
52.00
[2.05]
(INSIDE HEIGHT)
B
90.00
[3.54]
77.00
[3.03]
3.00
[.12]
82.91
[3.26]
78.91
[3.11]
A
A
(INSIDE
WIDTH)
B
TOP VIEW
15.00
[.59]
3.00
[.12]
.50
[.02]
2.50
[.10]
60.50
[2.38]
SECTION B-B
SIDE VIEW
108.41
[4.27]
POLYCARBONATE
VERSION ONLY
C
45.00
[1.77]
16.66
UL
O
®
US LISTED
19.38
[.76]
77.47
[3.05]
[.66]
STEEL PANEL
ORDER SEPARATELY
FILE #E65324
NEMA 4, 4X
38.71
[1.52]
6.00
[.24]
112.91
[4.45]
(INSIDE LENGTH)
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)
Contact Factory
mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
(Part number and text placement/orientation on our products are subject to change,
we do not recommend using them as a locating reference for modification purposes)
NOTE
SECTION A-A
SIDE VIEW
114.88
[4.52]
95.88
[3.77]
91.74
[3.61]
Purchased assembly includes box, styled lid, 4 cover screws, and
preformed silicone gasket.
General Purpose ABS version is not UL approved. (Matl UL94 - HB)
Polycarbonate version is UL 508 approved. (Matl UL94 - 5VA @ 3mm)
Recommended Cover screw torque -- 2.5 lbf-in (30 cN-m)
107.00
[4.21]
77.00
[3.03]
4X
4.00
[4X
.16]
MOUNTING
HOLES
ACCEPTS #6
SELF-TAPPING
SCREW
42.00
[1.65]
92.00
[3.62]
111.00
[4.37]
1555F
1555F Regular Enclosure
General Purpose ABS RAL‐7035
Polycarbonate RAL‐7035
ACCESSORIES
Steel Inner Panels
Steel Panel / P.C. Board Machine Screw
[M3 x 8mm Plated]
Steel Panel / P.C. Board Self Tapping Screw
[#6 X 1/4" (6.4mm) Plated]
Cover Screws (Pkg 4)
[M4 X 20mm Stainless Steel]
Silicone Pre-formed Gasket Black
1555FGY
1555F2GY
1554FPL
1591MM100
1598ATS100
SC1554
1554FGASKET
68.00
[2.68]
84.88
[3.34]
57.00
[2.24]
45.88
[1.81]
83.00
[3.27]
R7.50
[.30]
100.00
[3.94]
34.00
[1.34]
M3 BRASS
INSERTS
INSIDE BOX
M4 STAINLESS
STEEL INSERTS
INSIDE LID
Dimensions:
mm
[inches]
1555F
www.hammondmfg.com
®
