370MX: DescriptionPower Transformers Universal Primary 403VA/550V CT @575mA; Categorysemiconductor Power management; File Size195KB，3 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

370MX Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	370MX	-	-	View	Buy Now

370MX Overview

Power Transformers Universal Primary 403VA/550V CT @575mA

370MX Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Hammond
Product Category	Power Transformers
RoHS	Details
Product	Power Transformers
Primary Voltage Rating	100 VAC to 240 VAC
Secondary Voltage Rating	550 VAC CT
Power Rating	403 VA
Secondary Current Rating	575 mA
Mounting Style	Chassis
Primary Winding	Dual Primary Winding
Secondary Winding	Triple Secondary Winding
Length	129.54 mm
Width	111.25 mm
Height	134.62 mm
Operating Frequency	50 Hz, 60 Hz
Operating Temperature Range	0 C to + 105 C
Termination Style	Wire Leads
Type	Plate and Filament Power Transformers
Factory Pack Quantity	1
Unit Weight	2.300 lbs

Preview

Download Datasheet

View All

2/2/2018

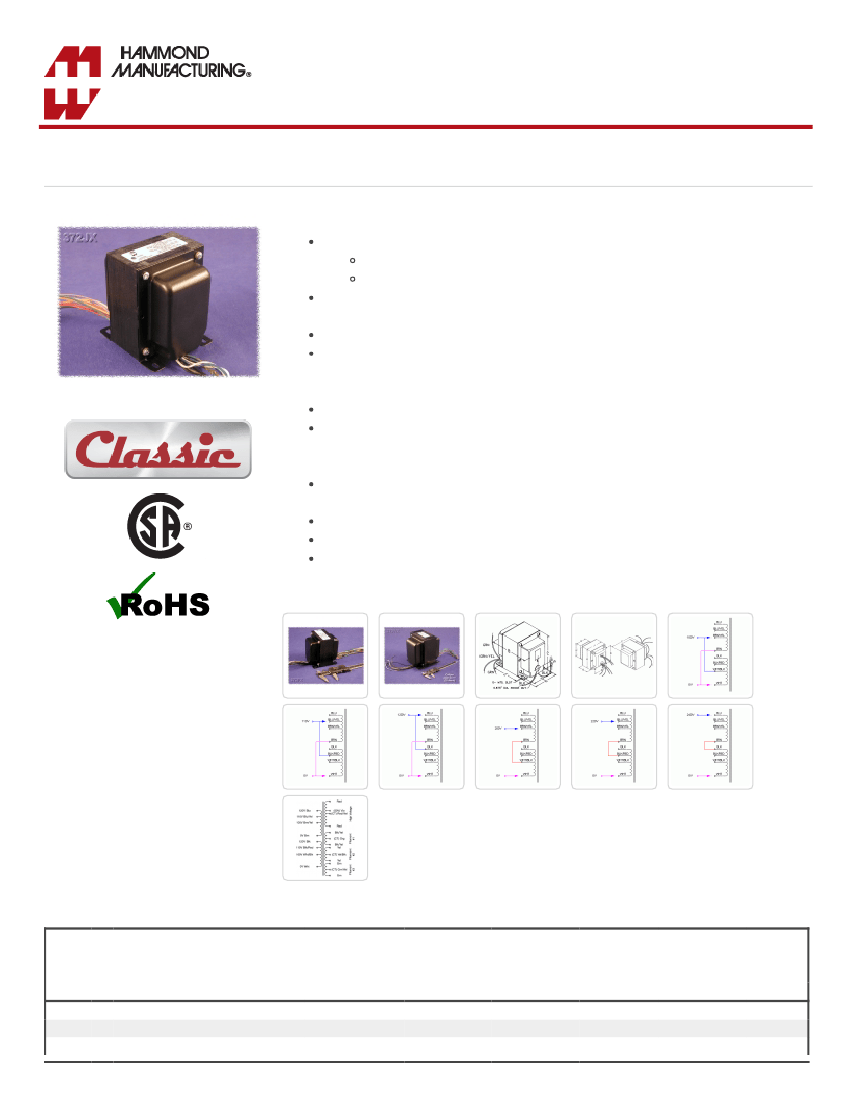

High Voltage (Plate) & Filament (300 Series) - Hammond Mfg.

Quality Products. Service Excellence.

High Voltage (Plate) & Filament

300 Series

Universal Primary & 50/60 Hz Operation

Features

Primary: Universal - 100, 110, 120, 200, 220,230, 240 VAC 50/60 Hz.

NOTE: units are designed to operate with BOTH primary windings engaged.

See primary wiring information under resources.

Bias Tap: 50 VAC tap from high voltage secondary C.T. (except part number

379WX

-

uses a separate 60VAC 0.2 Amp winding).

Highpot tested: 2,000 VAC

Faraday Copper Primary Shield: Our electrostatic shield reduces the capacitive coupling

from the primary - greatly attenuating higher frequency current coupling to the

secondaries (shield is internally grounded to the end bell).

Windings: Concentric wound for low stray field and low noise.

Models: This series is an upgrade from our entire

200 Series

range of units PLUS 2

models designed specifically for 300B tubes (Part Number

300BX)

and 2A3 tubes (Part

Number

302AX).

Finish: Black powder paint to match our 1650 series of output transformers Units can be

run full wave bridge or full wave C.T.

Conservative designs - CSA certified (209651).

For a more economical, open frame, universal primary - check out our

260 Series.

For that "high end" look & feel check out our potted versions - the

300P Series.

Gallery

A.C.

High Voltage

Secondary

Part No. VA

363AX

369AX

369BX

32

40

39

R.M.S.

200V C.T. @ 115ma.

250V C.T. @ 115ma.

300V C.T. @ 86ma.

Bias Tap on High

Voltage secondary

with C.T Grounded

(VAC)

50

Filament #1

(VAC)

5V C.T. @ 2A

6.3V C.T. @ 2A

Filament #2

(VAC)

-

Filament #3

(VAC)

-

Filament #4

(VAC)

-

Dimension

Reference

X6

https://www.hammfg.com/electronics/transformers/classic/300

1/3

370MX Related Products

	370MX	370DAX	374X	373EX	378CX
Description	Power Transformers Universal Primary 403VA/550V CT @575mA	Power Transformers Universal Primary 76VA, 520V CT @104mA	Power Transformers Universal Primary 141VA/750V CT @127mA	Power Transformers Universal Primary 311VA/650V CT @345mA	Power Transformers Universal Primary 465VA/800V CT @534mA
Product Attribute	Attribute Value	Attribute Value	-	Attribute Value	-
Manufacturer	Hammond	Hammond	-	Hammond	-
Product Category	Power Transformers	Power Transformers	-	Power Transformers	-
RoHS	Details	Details	-	Details	-
Product	Power Transformers	Power Transformers	-	Power Transformers	-
Primary Voltage Rating	100 VAC to 240 VAC	100 VAC to 240 VAC	-	100 VAC to 240 VAC	-
Secondary Voltage Rating	550 VAC CT	520 VAC CT	-	650 VAC CT	-
Power Rating	403 VA	76 VA	-	311 VA	-
Secondary Current Rating	575 mA	104 mA	-	345 mA	-
Mounting Style	Chassis	Chassis	-	Chassis	-
Primary Winding	Dual Primary Winding	Dual Primary Winding	-	Dual Primary Winding	-
Secondary Winding	Triple Secondary Winding	Dual Secondary Winding	-	Triple Secondary Winding	-
Length	129.54 mm	82.55 mm	-	123.19 mm	-
Width	111.25 mm	63.5 mm	-	111.25 mm	-
Height	134.62 mm	77.72 mm	-	134.62 mm	-
Operating Frequency	50 Hz, 60 Hz	50 Hz, 60 Hz	-	50 Hz, 60 Hz	-
Operating Temperature Range	0 C to + 105 C	0 C to + 105 C	-	0 C to + 105 C	-
Termination Style	Wire Leads	Wire Leads	-	Wire Leads	-
Type	Plate and Filament Power Transformers	Plate and Filament Power Transformers	-	Plate and Filament Power Transformers	-
Factory Pack Quantity	1	1	-	1	-
Unit Weight	2.300 lbs	2.700 lbs	-	2.300 lbs	-

Recommended Resources
