Tyco/Electronics
Raychem Circuit Protection
PRODUCT: RHE600
308 Constitution Drive
Menlo Park, CA 94025
800-227-4856
FAX 800-227-4866
PolySwitch®
PTC Devices
Overcurrent Protection Device
DOCUMENT: SCD 24258
PCN: 626189
REV LETTER: F
REV DATE: OCTOBER 8, 2001
PAGE NO.: 1 OF 1
Specification Status:
RELEASED
Electrical Rating
Voltage: 16V MAX
Current: 100A MAX
INSULATING MATERIAL:
Cured, Flame Retarded Epoxy Polymer
LEAD MATERIAL:
20 AWG Tin/Lead Plated Copper
(
0.8 mm [0.032] nom. diameter)
PART MARKING:
Raychem Logo
and Voltage
16
H6
Part Identification
Lot Identification
(can be on back)

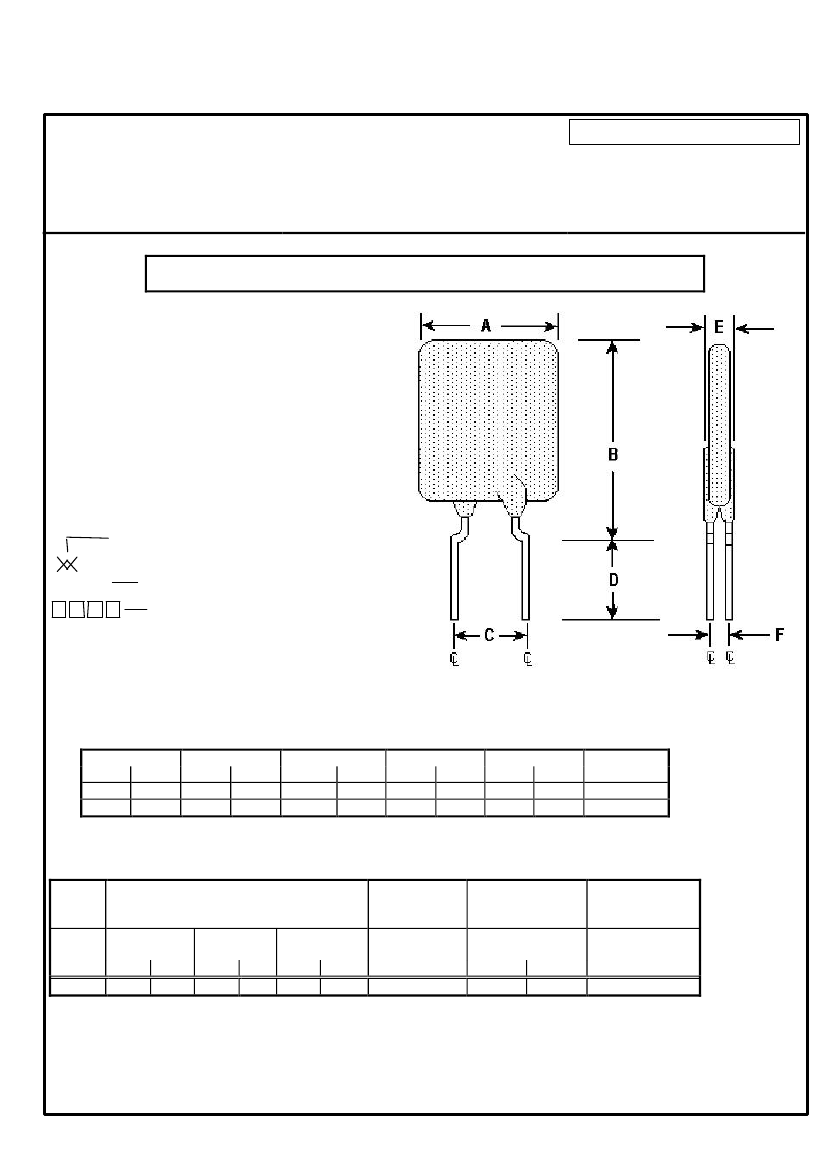

TABLE I. DIMENSIONS:
A
mm:
in*:
B
MIN
4.3
(0.17)
C
MAX
5.8
(0.23)
MIN
7.6
(0.30)
D
MAX
--
--
MIN
--
--
E
MAX
3.0
(0.12)
MIN
MAX
MIN
MAX
--
11.2
--
21.0
--
(0.44)
--
(0.83)
*Rounded off approximation
F
TYP
1.2
(0.05)
TABLE II. PERFORMANCE RATINGS:
I HOLD
CURRENT RATINGS
TIME TO
TRIP
SECONDS AT
25°C, 30 A
MAX
5.0
RESISTANCE
TRIPPED-STATE
POWER
DISSIPATION
WATTS AT
25°C
TYP
4.1
AMPS
25°C
HOLD
6.00
AMPS
AMPS
AMPS
AT 0°C
AT 25°C
AT 60°C
HOLD TRIP HOLD TRIP HOLD TRIP
--
--
6.0
10.8
--
--
OHMS
AT 25°C
MIN
MAX
0.013
0.032
Recognitions:
Reference Documents:
Precedence:
Effectivity:
CAUTION:
UL, TUV, CSA recognized.
PS300
This specification takes precedence over documents referenced herein.
Reference documents shall be the issue in effect on the date of invitation for bid.
Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.
