3400 Series
Shielded Surface Mount Inductors
SELECTION GUIDE
Order Code
34122C
34152C
34222C
34332C
34472C
34682C
34103C
34153C
34223C
34333C
34473C
34683C
34104C
34154C
34224C
34334C
34474C
34684C
34105C
Inductance, L
±20%
μH
1.2 ± 30%
1.5 ± 30%
2.2 ± 30%
3.3 ± 30%
4.7 ± 30%
6.8 ± 30%
10
15
22
33
47
68
100
150
220
330
470
680
1000
DC Current
2
Max.
A
2.50
2.10
1.70
1.50
1.30
1.00
0.80
0.68
0.53
0.48
0.41
0.35
0.28
0.23
0.18
0.15
0.13
0.11
0.09
DC Resistance
Max.
Ω
0.030
0.040
0.050
0.080
0.100
0.150
0.200
0.280
0.360
0.560
0.850
1.050
1.700
2.400
3.050
4.550
7.650
11.150
15.000
FEATURES
RoHS compliant
Inductance range from 1.2μH to 1mH
Small footprint
Ultra-low profile
UL 94V-0 packaging materials
Tape & reel
J-STD-020C reflow
Custom inductance values available
ABSOLUTE MAXIMUM RATINGS
PRODUCT OVERVIEW
The 3400 series is a range of bobbin-wound,
shielded inductors. They are suitable for power-
line filtering found in consumer electronics such
as desktop computers, handheld devices and GPS
systems, as well as in a vast range of industrial
and telecom applications including network hubs,
bridges/routers, and high frequency wireless
communication devices.
These surface mount inductors are extremely
compact and have an integral shield, making them
useful in EMI sensitive applications.
For lower current ratings see also our even lower
profile 3400L series.
Operating temperature range
Storage temperature range
SOLDERING INFORMATION
1
Peak reflow solder temperature
Pin finish
Moisture sensitivity level
3
-40°C to 125°C
-40°C to 150°C
260°C
SAC 305
1
PACKAGE SPECIFICATIONS

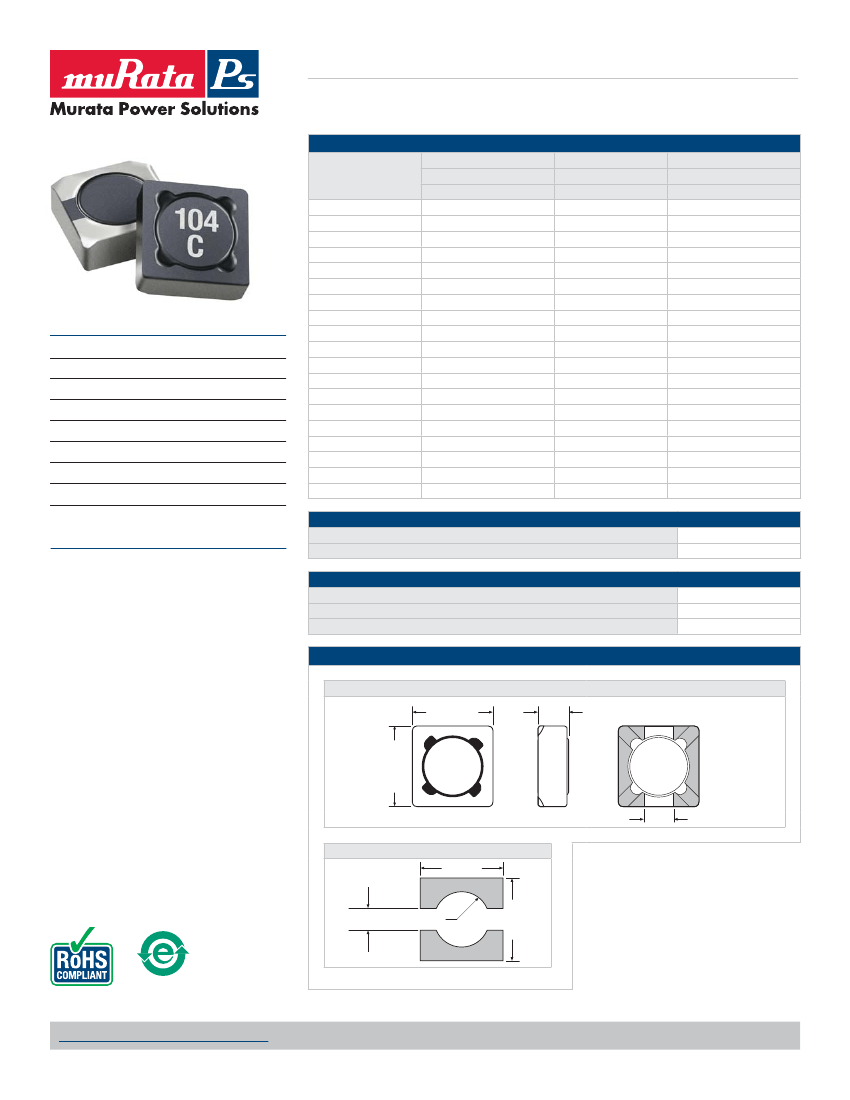

Mechanical Dimensions
5.2 (0.205) Max.
2.0 (0.079) Max.
5.2 (0.205) Max.
332
C
1.8±0.4 (0.071±0.016)
Package weight: 0.2g Typ.
Recommended Footprint Details
5.25 (0.207)
1.4 (0.055)
R1.75 (0.069)
For full details go to
www.murata-ps.com/rohs
All dimensions in mm (inches)
Specifications typical at T
A
= 25°C
1 For further information, please visit
www.murata-ps.com/rohs
2 The maximum DC current is the value at which the
inductance falls to 75% of its nominal value or when its
temperature rise reaches 40°C, whichever is sooner.
3 When tested to moisture sensitivity level 1, as described
per IPC/JEDEC J-STD-020D, products passed electrical
testing, package coplanarity and visual inspection.
www.murata-ps.com/support
KMP_3400C_A04
Page 1 of 3
5.25 (0.207)
3400 Series
Shielded Surface Mount Inductors
PACKAGE SPECIFICATIONS

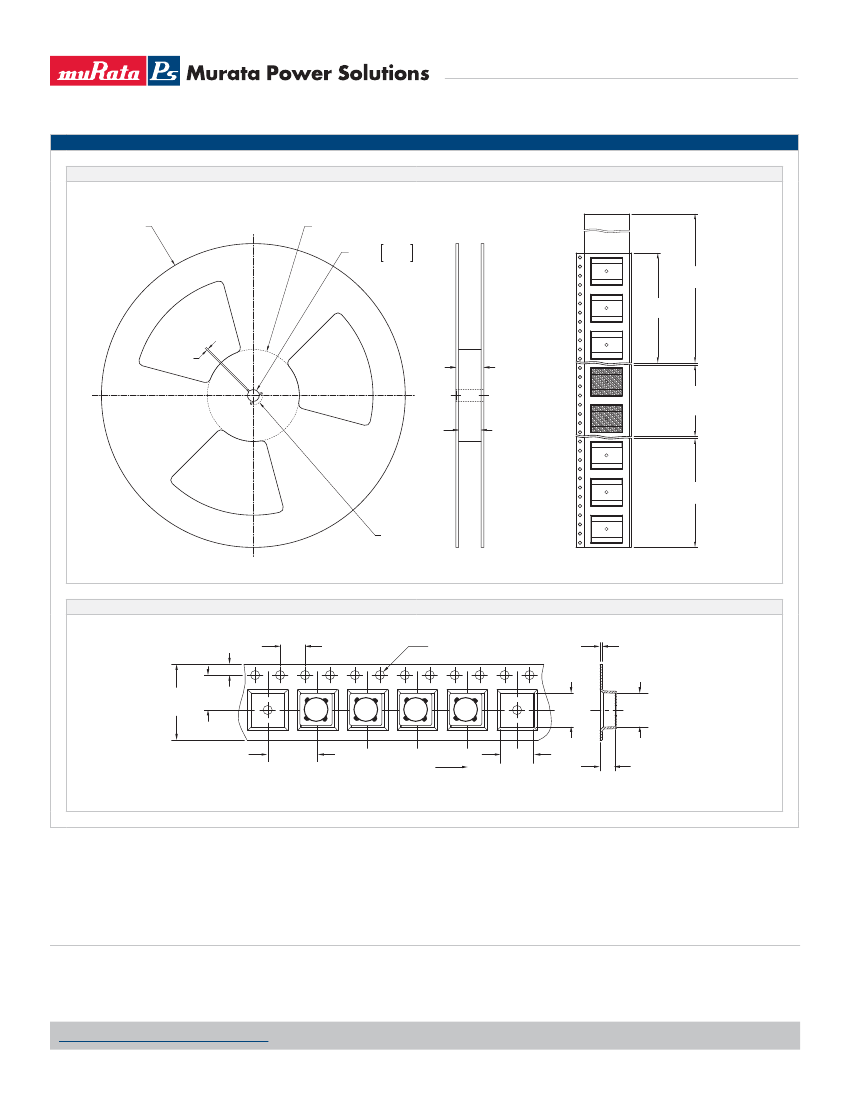

Mechanical Dimensions
Ø331 (13.03) Max.
Ø99.5 (3.92) Min.
Ø13.50 Ø 0.531
12.80 0.504
Leader Section
400 (15.748) Min.
100 (3.937)
Min.
2.3 (0.091)
18.4 (0.724) Max.
Goods
Enclosure
Section
12.4±0.2
(0.488±0.008)
Trailer Section
160 (6.299) Min.
Ø21.5 (0.846)
All dimension in mm (inches)
Tape Outline Dimensions
1.75 (0.069)
4.00 (0.157)
Ø1.50 (0.059)
0.30 (0.012)
5.50
12.00 (0.217)
(0.472)
5.30
(0.209)
5.30
(0.209)
8.00 (0.315)
Direction of unreeling
Reel quantity: 3000
Unless otherwise stated, all dimensions in mm (inches).
Murata Power Solutions, Inc.
11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.
ISO 9001 and 14001 REGISTERED
332
C
332
C
332
C
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.
© 2013 Murata Power Solutions, Inc.
332
C
5.30
(0.209)
2.30 (0.091)
www.murata-ps.com/support
KMP_3400C_A04
Page 3 of 3
Embedded System
