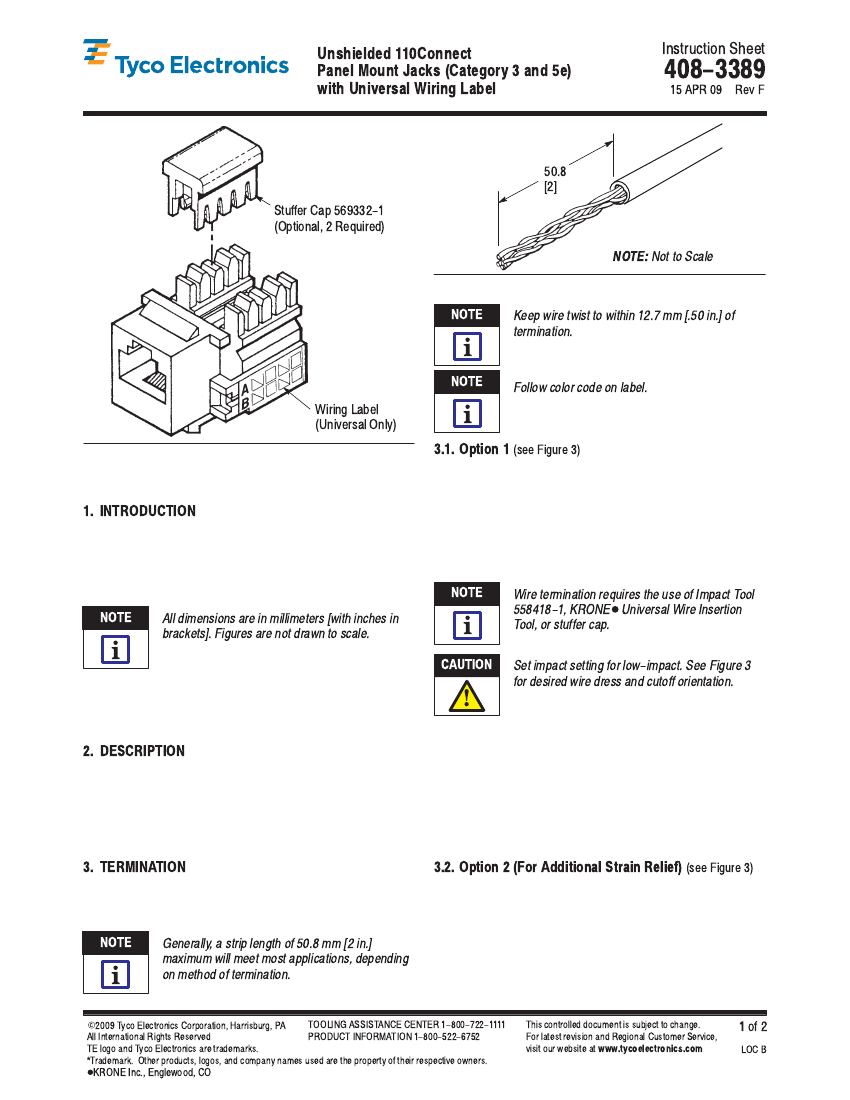

Unshielded 110Connect
Panel Mount Jacks (Category 3 and 5e)
with Universal Wiring Label
Instruction Sheet
408-3389
15 APR 09
Rev F
50.8
[2]
Stuffer Cap 569332-1
(Optional, 2 Required)
NOTE:
Not to Scale
Figure 2
NOTE
i
NOTE
Wiring Label
(Universal Only)
Keep wire twist to within 12.7 mm [.50 in.] of
termination.
Follow color code on label.
i
3.1. Option 1
(see Figure 3)
Figure 1
1. Lay conductors between connector blocks,
aligning cable jacket with rear of jack assembly.
1. INTRODUCTION
This instruction sheet provides termination
procedures for the unshielded 110Connect panel
mount jacks (Category 3 and 5e) with universal wiring
label.
2. Lace brown pair and opposite rear color pair
with appropriate color code slots (use minimum
slack while maintaining twist to within 12.7 mm
[.50 in.] of termination).
NOTE
NOTE
i
All dimensions are in millimeters [with inches in
brackets]. Figures are not drawn to scale.
i
CAUTION
Wire termination requires the use of Impact Tool
558418-1, KRONE
D
Universal Wire Insertion
Tool, or stuffer cap.
Set impact setting for low-impact. See Figure 3
for desired wire dress and cutoff orientation.
Reasons for reissue of this sheet are provided in
Section 4, REVISION SUMMARY.
!
2. DESCRIPTION
The jacks accept four pair, twisted–pair cable with 22
to 26 AWG solid conductors and 20 to 26 AWG
stranded conductors. The maximum conductor
insulation diameter is 1.27 mm [.050 in.].
3. Use tool to punch wires down into slot and cut
off excess wire. Remove loose wire pieces.
4. Repeat Steps 2 and 3 with blue pair and
opposite front pair.
5. The optional stuffer cap may be used for
termination or it may be added for additional strain
relief.
3. TERMINATION
Strip back only as much cable jacket as necessary to
perform termination. See Figure 2.
3.2. Option 2 (For Additional Strain Relief)
(see Figure 3)
1. Bend conductors back to right angle to cable
and insert cable between connector blocks.
2. Pull brown pair and opposite rear color pair
through opening on opposite sides. Bend wires
around blocks and align them with appropriate
color code slots (use minimum slack while
maintaining twist).
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
NOTE
i
E
Generally, a strip length of 50.8 mm [2 in.]
maximum will meet most applications, depending
on method of termination.
2009 Tyco Electronics Corporation, Harrisburg, PA
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
1
of 2
www.tycoelectronics.com
LOC B
D
*Trademark. Other products, logos, and company names used are the property of their respective owners.
KRONE Inc., Englewood, CO

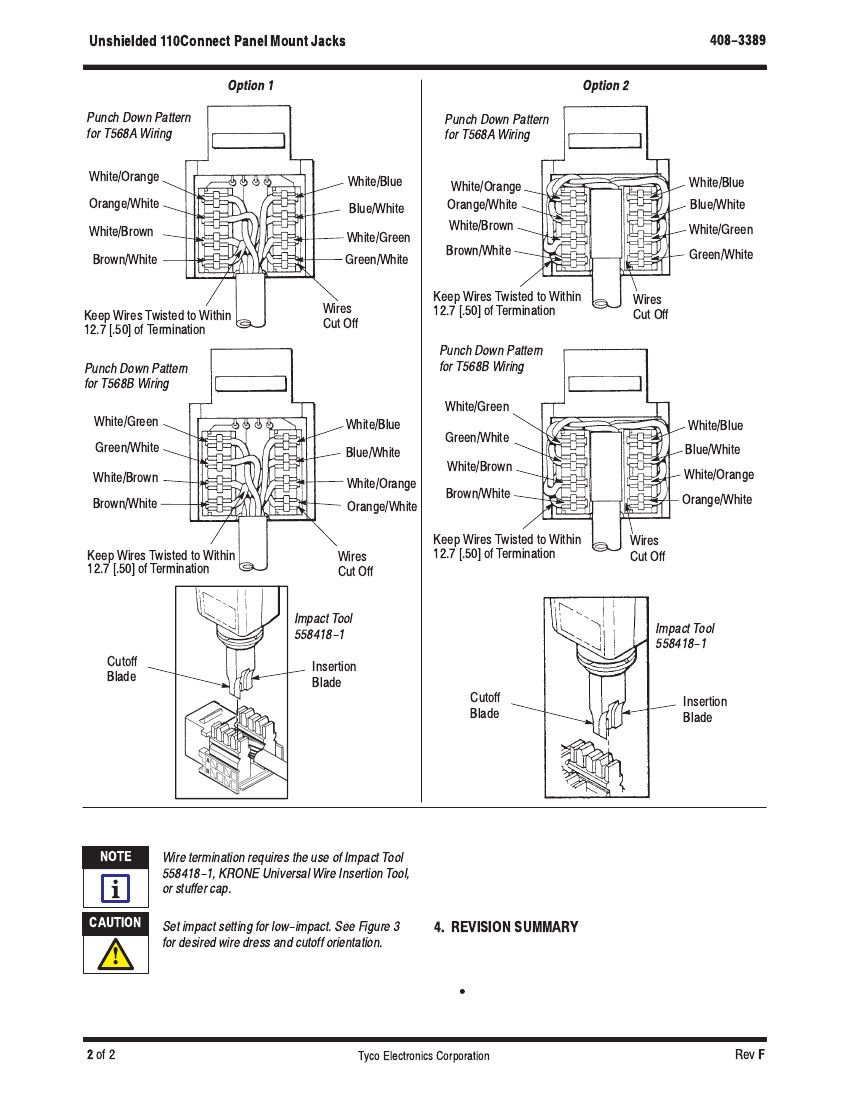

Unshielded 110Connect Panel Mount Jacks
408-3389
Option 1
Punch Down Pattern
for T568A Wiring
Punch Down Pattern
for T568A Wiring
Option 2
White/Orange
Orange/White
White/Brown
Brown/White
Keep Wires Twisted to Within
12.7 [.50] of Termination
Punch Down Pattern
for T568B Wiring
White/Blue
Blue/White
White/Green
Green/White
Wires
Cut Off
White/Orange
Orange/White
White/Brown
Brown/White
Keep Wires Twisted to Within
12.7 [.50] of Termination
Punch Down Pattern
for T568B Wiring
White/Blue
Blue/White
White/Green
Green/White
Wires
Cut Off
White/Green
Green/White
White/Brown
Brown/White
Keep Wires Twisted to Within
12.7 [.50] of Termination
White/Blue
Blue/White
White/Orange
Orange/White
Wires
Cut Off
Impact Tool
558418-1
White/Green
Green/White
White/Brown
Brown/White
Keep Wires Twisted to Within
12.7 [.50] of Termination
Wires
Cut Off
White/Blue
Blue/White
White/Orange
Orange/White
Cutoff
Blade
Impact Tool
558418-1
Insertion
Blade
Cutoff
Blade
Insertion
Blade
Figure 3
NOTE
i
CAUTION
Wire termination requires the use of Impact Tool
558418-1, KRONE Universal Wire Insertion Tool,
or stuffer cap.
Set impact setting for low-impact. See Figure 3
for desired wire dress and cutoff orientation.
4. Repeat Steps 2 and 3 with blue pair and
opposite front pair.
5. Press conductors flat against blocks.
4. REVISION SUMMARY
Since the last revision to this document, the following
changes were made:
S
Updated document to corporate requirements.
!
3. Use tool to punch wires down into slot and cut
off excess wire. Remove loose wire pieces.
2
of 2
Tyco Electronics Corporation
Rev
F
