25P-326G

Description
LED Lenses GREEN TRANSPARENT FITS 5100 5200 BODY
CategoryLED optoelectronic/LED
File Size113KB,2 Pages
ManufacturerVisual Communications Company, LLC
Websitehttp://vcclite.com
Download Datasheet Parametric View All

25P-326G Online Shopping

Suppliers Part Number Price MOQ In stock
25P-326G - - View Buy Now

25P-326G Overview

LED Lenses GREEN TRANSPARENT FITS 5100 5200 BODY

25P-326G Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerVisual Communications Company, LLC
Product CategoryLED Lenses
RoHSDetails
ProductLED Lenses
LED SizeT-2, T-3 1/4
ColorGreen
Diameter0.625 in
MaterialLexan, High Temperature
Height0.438 in
Mounting Hole Size0.688 in
PackagingBulk
StyleTransparent
Mounting StyleThrough Hole
ShapeDome
Panel Thickness Dimension0.406 in
Factory Pack Quantity1000
engineered to light up your design
www.vcclite.com
1.800.522.5546

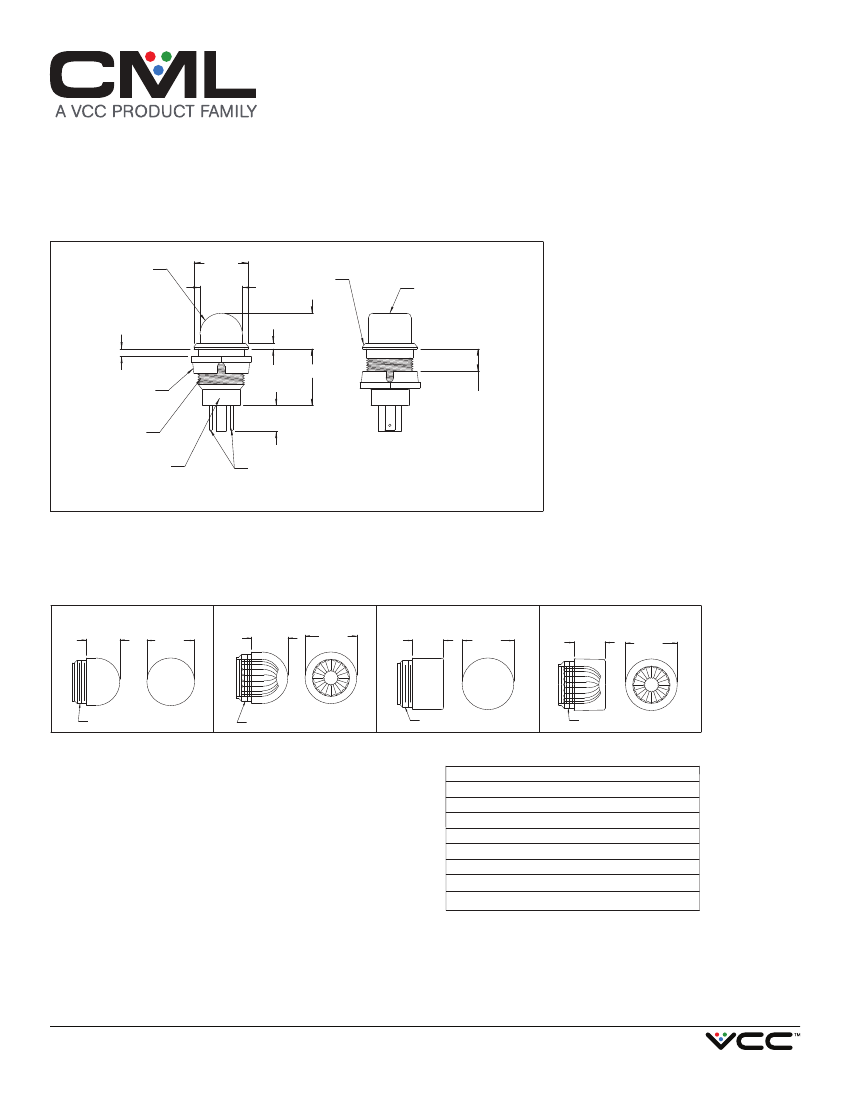

2802 Series Relampable Incandescent Indicator Light
Description and Features
DOME LENS
0-.250THK.
PANEL WHEN HEX
NUT IS USED IN
THIS MANNER.
.810
.630
BEZEL
FLAT LENS
.530
.090
HEX NUT NYLON
.810
ACROSS FLATS
11/16-27
THREAD
BODY
BLACK POLYESTER
.840
.250-.340
THICK PANEL
WHEN HEX. NUT IS
REVERSED AS SHOWN
.380±.020
.187 QUICK CONNECT
TERMINALS, NICKLE PLATED
BRASS.
All dimensions in inches.
Lens Specifications
Dome
.438
Ø.625
Fluted Dome
.438
Ø.625
Cylindrical
.375
Ø.625
Fluted Cylindrical
.375
Ø.625
9/16-27 THD.
9/16-27 THD.
9/16-27 THD.
9/16-27 THD.
All dimensions in inches.
Ordering Information:
For use with T-2 Slide Base (standard) lamps.
Complete assembly consists of socket (2802),
lamp, and lens (see chart below).
Items supplied unassembled.
Lamp, lens and socket must be ordered
separately.
Mounting: Supplied with polyester hex nut.
Lens: Polycarbonate-threaded
Body: Black polyester
Terminals: Nickel plated brass
Bezel: Black
Lens Part No: Description
Transparent dome
25P-306*
Translucent dome
25P-307**
Transparent fluted dome
25P-326*
Transparent cylindrical
25P-606*
25P-607**
Translucent cylindrical
25P-626*
Transparent fluted cylindrical
(*) R=Red, A=Amber, G=Green, C=Clear
(**) R=Red, Y=Yellow, G=Green, W=White
Note: For 120 volt applications, CML recommends the use of
a slide base neon lamp, rather than an incandescent lamp.
CML and Chicago Miniature Lamp are registered trademarks of Visual Communications Company, LLC.
