SMC170ATP: DescriptionLED Lenses Amber Fresnel Lens SMC170ATP; CategoryLED optoelectronic/LED; File Size65KB，1 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com

Download Datasheet Parametric Compare View All

SMC170ATP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMC170ATP	-	-	View	Buy Now

SMC170ATP Overview

LED Lenses Amber Fresnel Lens SMC170ATP

SMC170ATP Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Visual Communications Company, LLC
Product Category	LED Lenses
RoHS	Details
Product	LED Lenses
LED Size	3 mm
Color	Amber
Diameter	0.17 in
Material	Polycarbonate (PC)
Height	0.27 in
Packaging	Bulk
Style	Transparent
Panel Thickness Dimension	1/32 in to 3/32 in
Factory Pack Quantity	1000
Water / Moisture Rating	Non Water Resistant

Preview

Download Datasheet

View All

8

7

6

5

4

ECN#

3

REV.

001

2

REVISIONS

DESCRIPTION

REVISED PER ECR111009AZ01

DATE

4-23-10

1

INITIALS

SMU

D

NOTES:

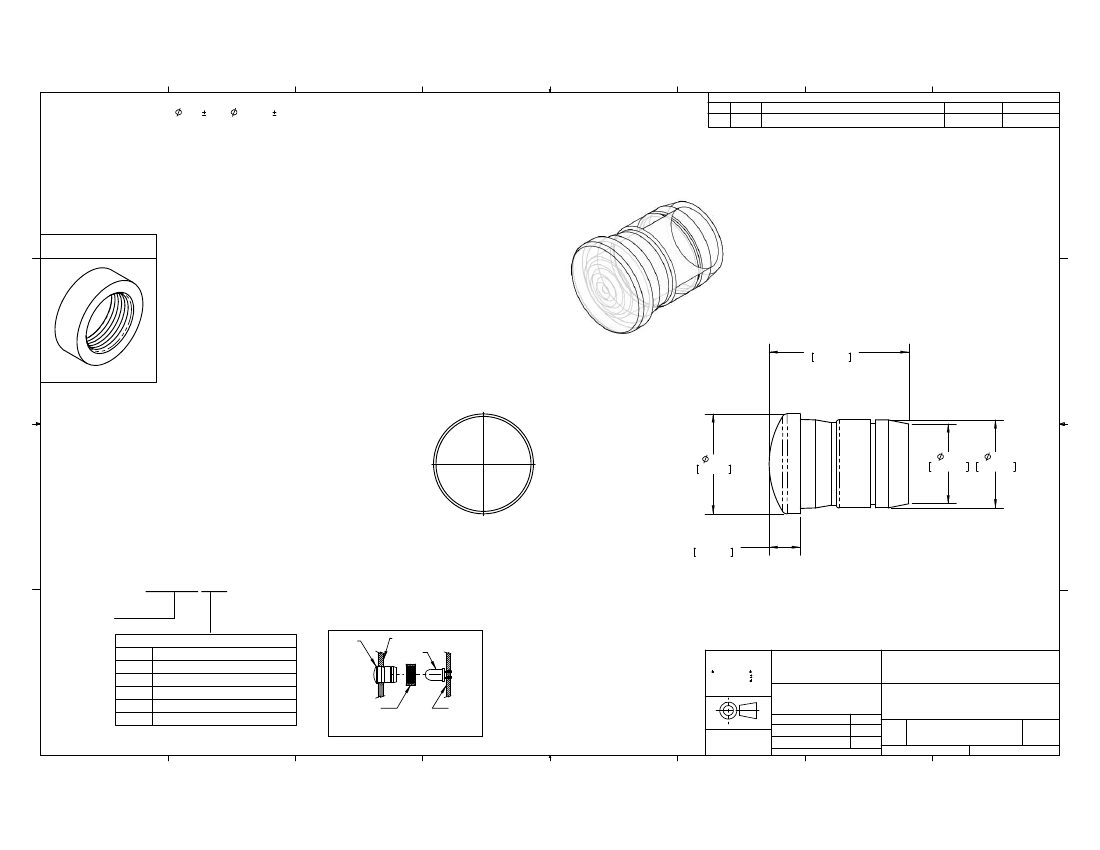

MOUNTING: Mounts in a .171 .002 [ 4.34mm .05] panel hole on .250 [6.35mm] centers.

1.

Panel thickness .031 [.8mm] to .094 [2.39mm]. Panel hole should be deburred, but not

chamfered.

2.

ASSEMBLY:Insert lens through panel hole, slide RNG 132 retainer on back of lens. PCB

mounted LEDs slide into lens when the panel cover is closed or the PCB card is inserted into

the case.

3.

MATERIAL: Polycarbonate, UL 94-V2

4.

U.S. & Foreign Pat. Issued & Pend.

D

RETAINER

(ORDER SEPARATELY)

C

.270

6.85mm

RNG 132

.193

4.9mm

B

.154

3.91mm

.170

4.32mm

B

.060

1.52mm

ORDERING CODE :

SMC 170 XXX

MODEL

A

RTP

ATP

GTP

BTP

YTP

CTP

LENS COLOR

RED TRANSPARENT

AMBER TRANSPARENT

GREEN TRANSPARENT

BLUE TRANSPARENT

YELLOW TRANSPARENT

CLEAR TRANSPARENT

LENS

DISPAY PANEL

LED

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES:

MATERIAL

ANGLES

1'

FINISH

DECIMALS

.X

.020

.010

.XX

.XXX .005

POLYCARBONATE,

UL 94-V2

FINISH

VISUAL COMMUNICATIONS COMPANY, INC.

190 Bosstick Boulevard, Suite101 San Marcos, CA 92069 USA

Phone (760) 560-1300 Fax (760) 560-1301 email vccsales@vcclite.com

A

BREAK ALL CORNERS AND SHARP

EDGES .030 MAX

TITLE:

SEE NOTES

RNG 132

RETAINER

ASSEMBLY

PCB

APPROVAL

THIRD ANGLE PROJECTION

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

VISUAL COMMUNICATIONS COMPANY, INC. ANY

REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

VISUAL COMMUNICATIONS COMPANY, INC IS

PROHIBITED.

3MM ROUND FRESNEL

LOW PROFILE LENS

REV

DATE

SMU 4-23-10

DZ 4-23-10

DRAWN:

CHECKED:

SIZE

DWG. NO.

B

SMC 170 XXX

SCALE: 12:1

001

DO NOT SCALE DRAWING

SHEET 1 OF 1

8

7

6

5

4

3

2

1
