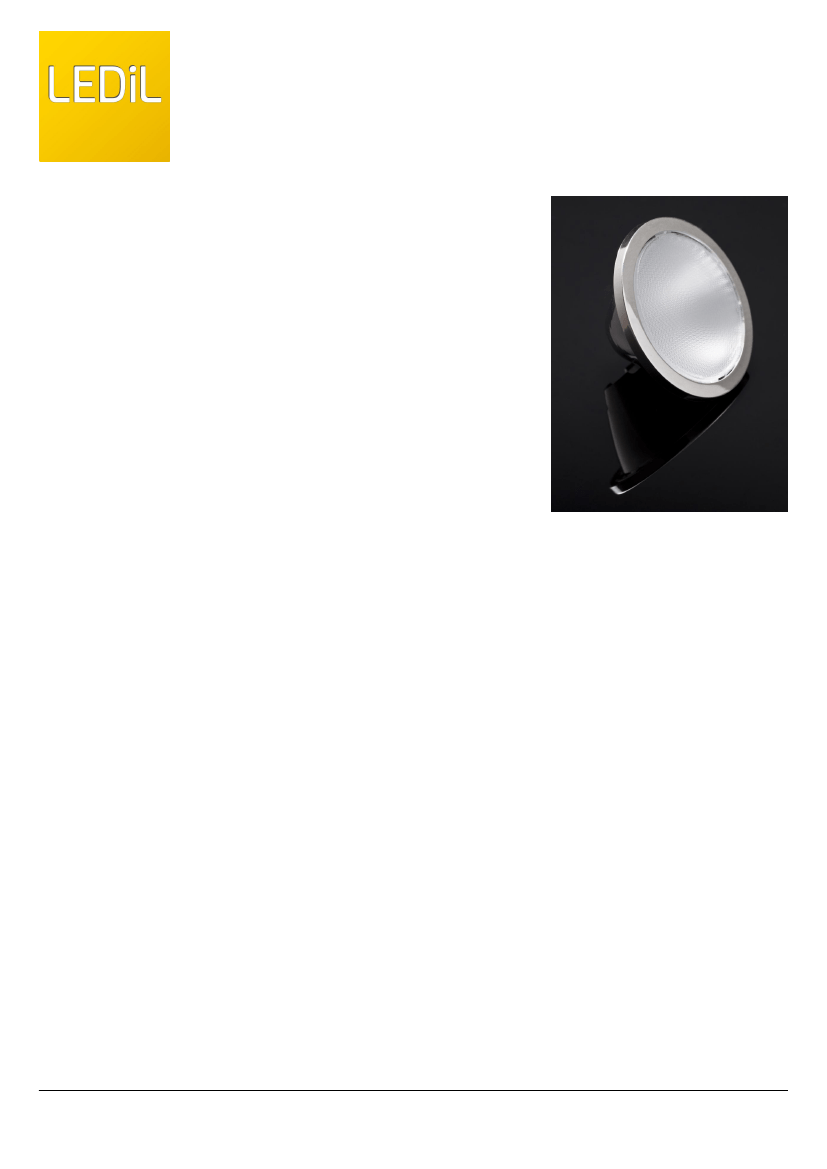

PRODUCT DATASHEET
Mirella series
last update 16/7/2015
DETAILS
Product Number
Family
Type
Color
Diameter
Height
Style
Optic Material
Holder Material
Fastening
Status
ROHS Compliant
Date Updated
glue
production ready
Yes
16/07/2015
CN13904_MIRELLA-50-W-PIN-RZL
Mirella
RefPack
metal
49,9 mm
24 mm
round
PC
OPTICAL PROPERTIES
Viewing
LED
XM-L RGB
XHP50
LUXEON Z RGB
LUXEON C RGBW
Ostar-SMT RGB
F50360 (RGB)
Angle
50 deg
51 deg
46 deg
47 deg
48 deg
46 deg

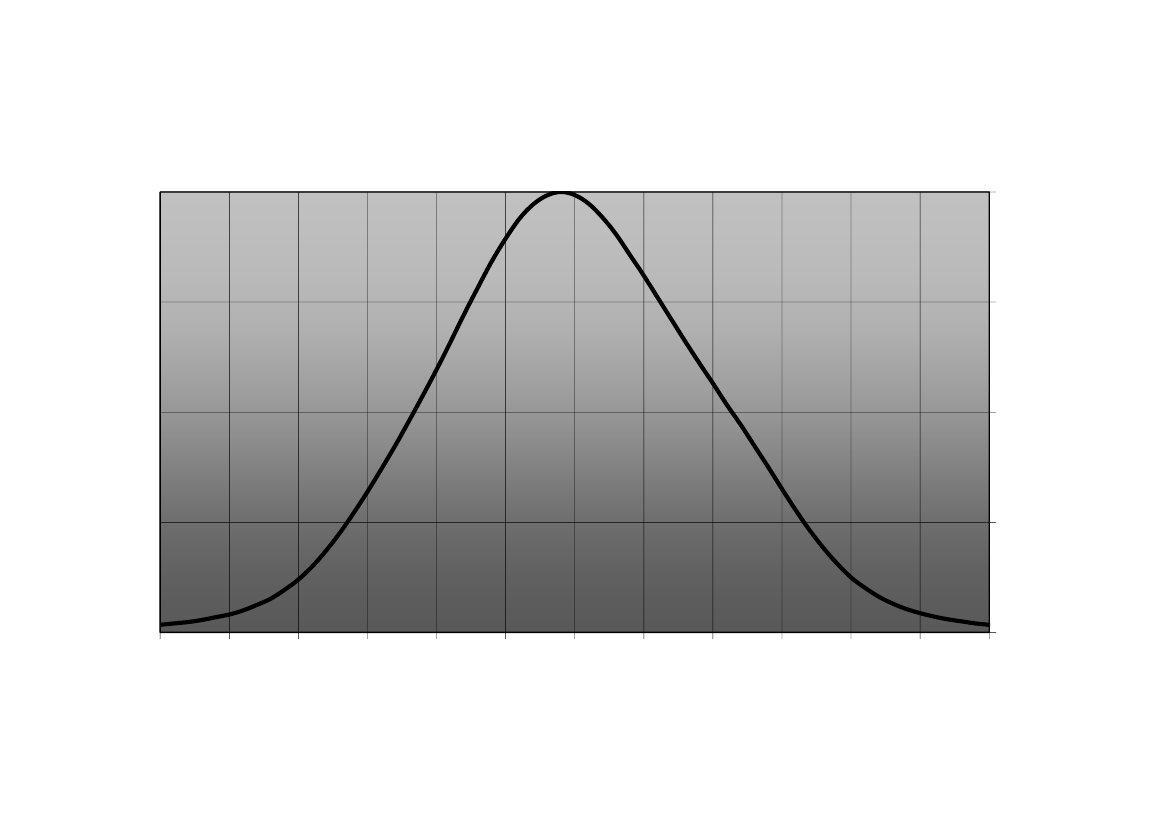

Light
Beam
Wide
Wide
Wide
Wide
Wide
Wide
Effi-
ciency
81 %
81 %
80 %
77 %
81 %
81 %

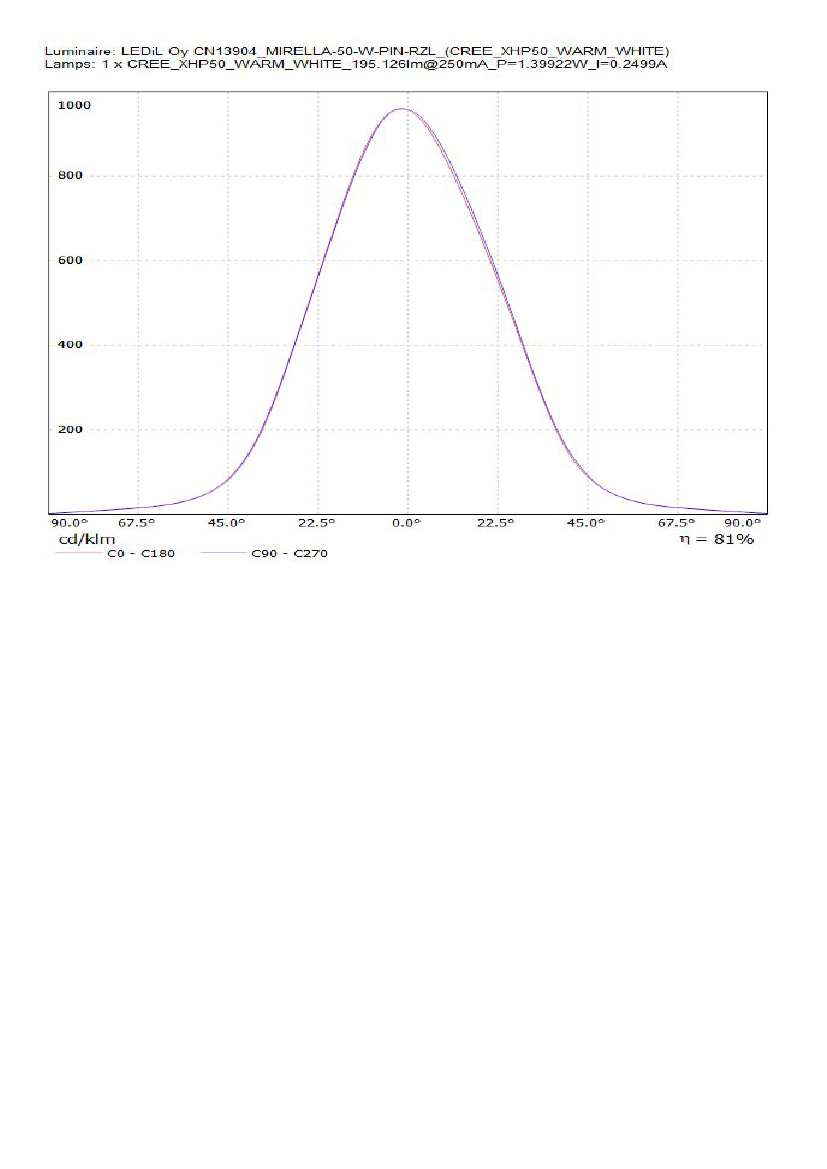

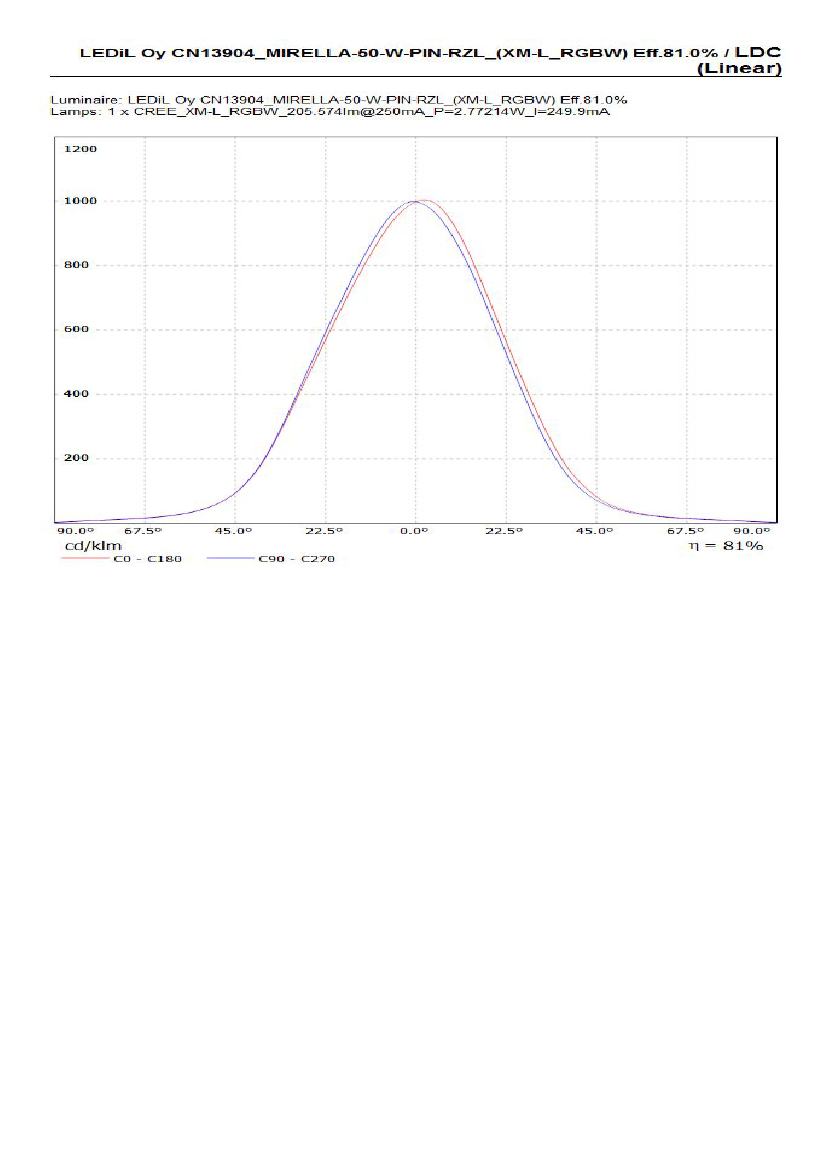

cd/lm
1.000
0.960
1.100
1.030
1.100
1.200
Connector
-
-
-
-
-
-
February 18th 2018 4:50 Copyright Ledil Oy - Subject to change without prior notice - Page 1/1
Ledil Oy
Salorankatu 10
24240 SALO, Finland
http://www.ledil.com
email: ledil@ledil.com
FAX: +358-2-733 8001
C
D
B
B
4
4
39

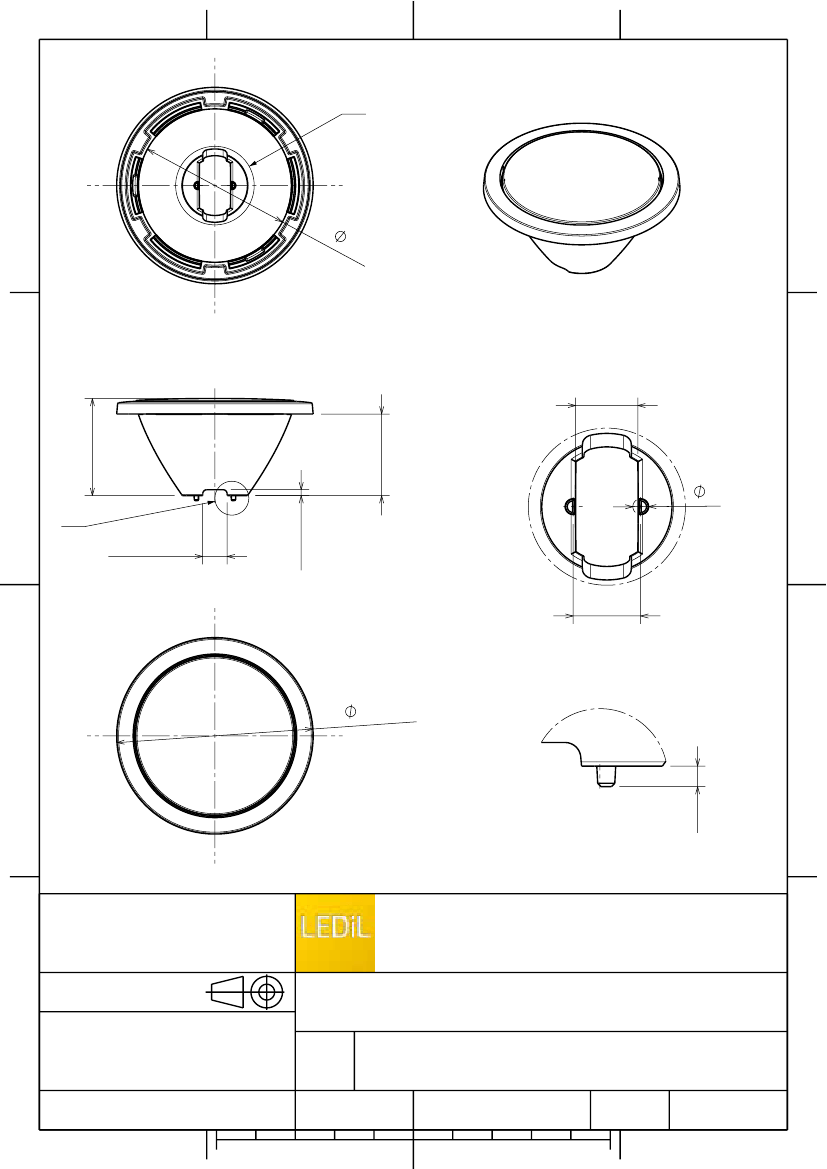

Bottom view
Isometric view
7.9
24.7
20.7
3
3
A
6.2
Front view
1.5
2
8.6
c/c
Detail B
49.9
2
A
2
1.3
Top view
Tolerances if not otherwise shown
According to DIN ISO 2768-1
Linear measures:
Up to 30mm class M, otherwise class C.
According to DIN ISO 2768-2
Form and position: class L
Detail A
Ledil Oy
Salorankatu 10
FIN 24240 SALO
Finland
THIRD ANGLE PROJECTION:
DRAWING TITLE
This drawing is the property
of LEDiL Oy. It may not be
reproduced, copied or
communicated without a written
agreement with LEDiL Oy."
1
Datasheet MIRELLA-PIN-RZL
SIZE
PART NUMBER
1
A4
SCALE
1:1 WEIGHT
-
-
SHEET
1/1
D
A
