507-4767-3731-500F: DescriptionPanel Mount Indicator Lamps LED DATALITE; CategoryLED optoelectronic/LED; File Size97KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric View All

507-4767-3731-500F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	507-4767-3731-500F	-	-	View	Buy Now

507-4767-3731-500F Overview

Panel Mount Indicator Lamps LED DATALITE

507-4767-3731-500F Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	DIALIGHT
Product Category	Panel Mount Indicator Lamps
RoHS	Details
Product	LED Panel Mount Indicators
Lamp Type	Based LED
Packaging	Bulk
Factory Pack Quantity	5

Preview

Download Datasheet

View All

DIALIGHT

PART NUMBER

507-4756-3331-500F

507-4756-3731-500F

507-4757-3331-500F

507-4757-3731-500F

507-4759-3331-500F

507-4759-3731-500F

507-4760-3331-500F

507-4760-3731-500F

507-4761-3331-500F

507-4761-3731-500F

507-4856-3332-500F

507-4856-3732-500F

507-4857-3332-500F

507-4857-3732-500F

507-4859-3332-500F

507-4859-3732-500F

507-4860-3332-500F

507-4860-3732-500F

507-4861-3332-500F

507-4861-3732-500F

507-4956-3333-500F

507-4956-3733-500F

507-4957-3333-500F

507-4957-3733-500F

507-4959-3333-500F

507-4959-3733-500F

507-4960-3333-500F

507-4960-3733-500F

507-4961-3333-500F

507-4961-3733-500F

507-5062-3334-500F

507-5062-3734-500F

507-5064-3334-500F

507-5064-3734-500F

507-5066-3334-500F

507-5066-3734-500F

507-5067-3334-500F

507-5067-3734-500F

507-5068-3334-500F

507-5068-3734-500F

507-5164-3337-500F

507-5164-3737-500F

507-5166-3337-500F

507-5166-3737-500F

507-5167-3337-500F

507-5167-3737-500F

507-5168-3337-500F

507-5168-3737-500F

COLOR

RED

GREEN

YELLOW

BLUE

WHITE

VOLTAGE

3.6 VDC

5 VDC

10 VDC

14 VDC

28 VDC

3.6 VDC

5 VDC

10 VDC

14 VDC

28 VDC

3.6 VDC

5 VDC

10 VDC

14 VDC

28 VDC

3 VDC

5 VDC

10 VDC

14 VDC

28 VDC

5 VDC

10 VDC

14 VDC

28 VDC

LENS

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

FIG. 1

FIG. 2

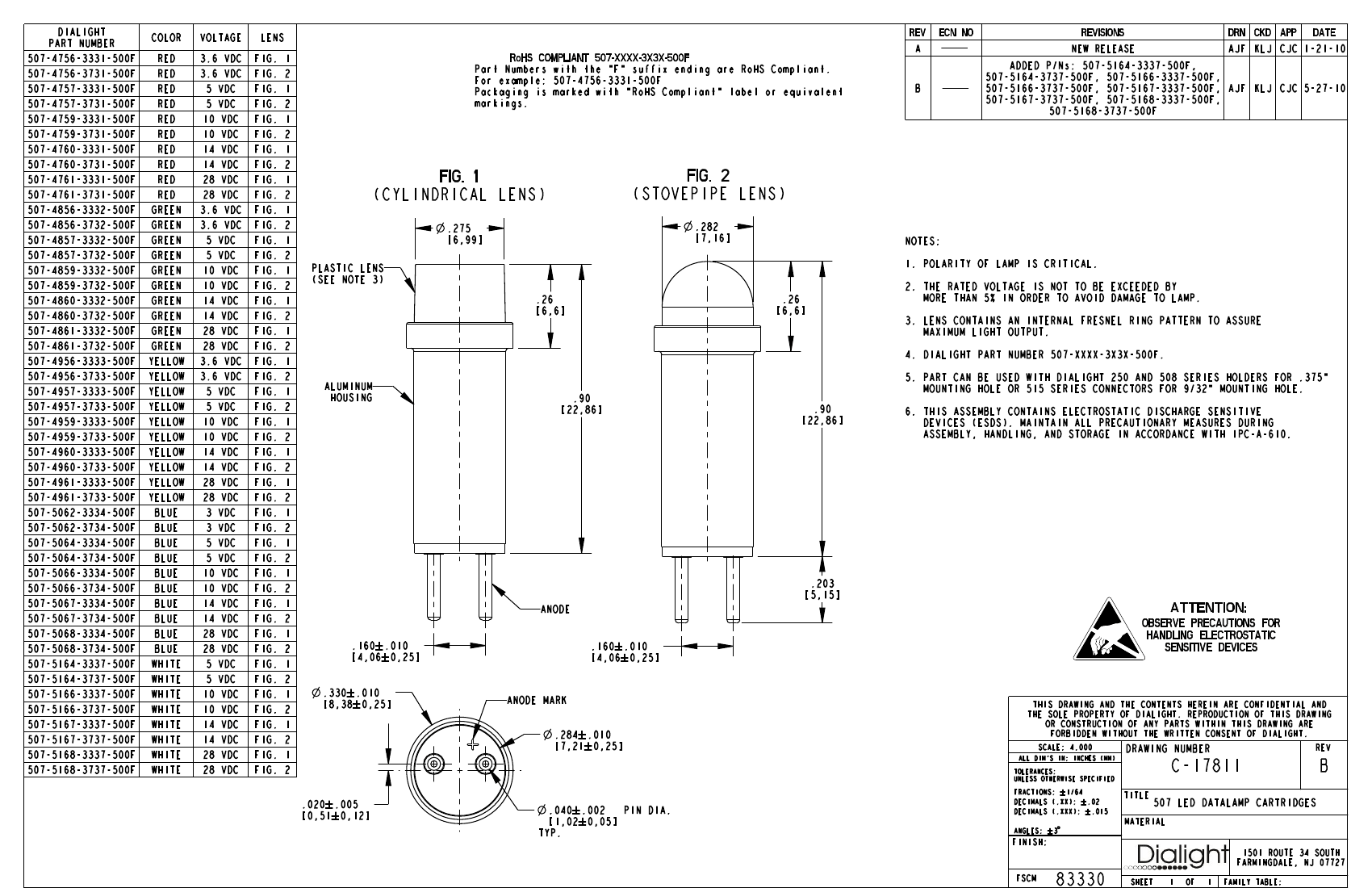

.020 #

.005

[0,51 #

0,12 ]

.330 #

.010

[8,38 #

0,25 ]

ANODE MARK

.284 #

.010

[7,21 #

0,25 ]

.160 #

.010

[4,06 #

0,25 ]

.160 #

.010

[4,06 #

0,25 ]

ANODE

.203

[5,15]

ALUMINUM

HOUSING

PLASTIC LENS

(SEE NOTE 3)

.26

[6,6]

.26

[6,6]

.275

[6,99]

.282

[7,16]

RoHS COMPLIANT 507-XXXX-3X3X-500F

Part Numbers with the "F" suffix ending are RoHS Compliant.

For example: 507-4756-3331-500F

Packaging is marked with "RoHS Compliant" label or equivalent

markings.

REV

A

ECN NO

REVISIONS

NEW RELEASE

DRN CKD APP

DATE

AJF KLJ CJC 1-21-10

B

ADDED P/Ns: 507-5164-3337-500F,

507-5164-3737-500F, 507-5166-3337-500F,

507-5166-3737-500F, 507-5167-3337-500F,

507-5167-3737-500F, 507-5168-3337-500F,

507-5168-3737-500F

AJF KLJ CJC 5-27-10

FIG. 1

(CYLINDRICAL LENS)

FIG. 2

(STOVEPIPE LENS)

NOTES:

1. POLARITY OF LAMP IS CRITICAL.

2. THE RATED VOLTAGE IS NOT TO BE EXCEEDED BY

MORE THAN 5% IN ORDER TO AVOID DAMAGE TO LAMP.

3. LENS CONTAINS AN INTERNAL FRESNEL RING PATTERN TO ASSURE

MAXIMUM LIGHT OUTPUT.

4. DIALIGHT PART NUMBER 507-XXXX-3X3X-500F.

5. PART CAN BE USED WITH DIALIGHT 250 AND 508 SERIES HOLDERS FOR .375"

MOUNTING HOLE OR 515 SERIES CONNECTORS FOR 9/32" MOUNTING HOLE.

.90

[22,86]

6. THIS ASSEMBLY CONTAINS ELECTROSTATIC DISCHARGE SENSITIVE

DEVICES (ESDS). MAINTAIN ALL PRECAUTIONARY MEASURES DURING

ASSEMBLY, HANDLING, AND STORAGE IN ACCORDANCE WITH IPC-A-610.

.90

[22,86]

ATTENTION:

OBSERVE PRECAUTIONS FOR

HANDLING ELECTROSTATIC

SENSITIVE DEVICES

THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND

THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING

OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE

FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.

SCALE: 4.000

ALL DIM'S IN: INCHES (MM)

TOLERANCES:

UNLESS OTHERWISE SPECIFIED

DRAWING NUMBER

REV

C-17811

TITLE

B

.040 #

.002

PIN DIA.

[1,02 #

0,05 ]

TYP.

FRACTIONS: #

1/64

DECIMALS (.XX): #

.02

DECIMALS (.XXX): #

.015

ANGLES:

# $

3

507 LED DATALAMP CARTRIDGES

MATERIAL

FINISH:

1501 ROUTE 34 SOUTH

FARMINGDALE, NJ 07727

FSCM

83330

SHEET

1

OF

1

FAMILY TABLE:
