L-59EGW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-59EGW

L-59EGW: DescriptionT-1 3/4 DUAL COLOR LED, HIGH EFFICIENCY RED/GREEN, 5 mm; CategoryLED optoelectronic/LED photoelectric; File Size55KB，3 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L-59EGW Overview

T-1 3/4 DUAL COLOR LED, HIGH EFFICIENCY RED/GREEN, 5 mm

L-59EGW Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-3
Reach Compliance Code	compli
ECCN code	EAR99
Other features	IC COMPATIBLE, HIGH RELIABILITY
color	HIGH EFFICIENCY RED/GREEN
color@wavelength	Green/Red
Configuration	COMMON CATHODE, 2 ELEMENTS
Maximum forward current	0.03 A
Maximum forward voltage	2.8 V
JESD-609 code	e3
Lens type	DIFFUSED WHITE
minimum luminous intensity	100 cd
Nominal luminous intensity	60.0/50.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	DUAL COLOR LED
total height	8.6 mm
method of packing	BULK
peak wavelength	627/565 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin (Sn)
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All

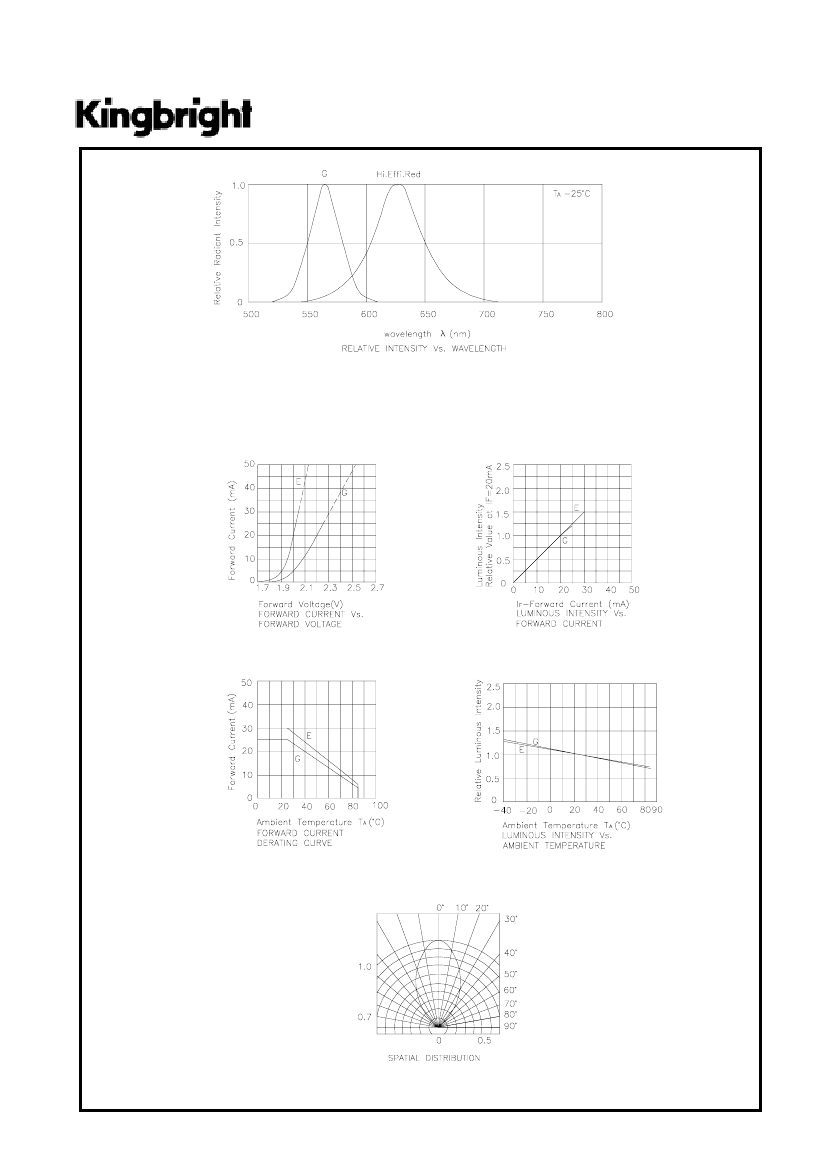

T-1 3/4(5mm) BI-COLOR INDICATOR LAMP

L-59EGW

HIGH EFFICIENCY RED / GREEN

Features

UNIFORM LIGHT OUTPUT.

LOW POWER CONSUMPTION

MILKY WHITE DIFFUSION LENS.

3 LEADS WITH ONE COMMON LEAD.

THIRD COLOR (MIXED COLOR) AVAILABLE.

SUPER BRIGHT VERSION AVAILABLE.

I.C. COMPATIBLE.

LONG LIFE - SOLID STATE RELIABILITY

Description

The High Efficiency Red source color devices are made

with Gallium Arsenide Phosphide on Gallium Phosphide

Orange Light Emitting Diode.

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: DSAA4041

APPROVED:J.LU

REV NO: V.5

CHECKED:Allen Liu

DATE: JAN/05/2003

DRAWN: S.J.HOU

PAGE: 1 OF 3
