CXA1304-0000-000N00B450F datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> CXA1304-0000-000N00B450F

CXA1304-0000-000N00B450F: DescriptionHigh Power LEDs - White Cool White, 5000K 457lm, 100mA, 75CRI; CategoryLED optoelectronic/LED; File Size3MB，31 Pages; ManufacturerCree; Websitehttp://www.cree.com/

Download Datasheet Parametric View All

CXA1304-0000-000N00B450F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CXA1304-0000-000N00B450F	-	-	View	Buy Now

CXA1304-0000-000N00B450F Overview

High Power LEDs - White Cool White, 5000K 457lm, 100mA, 75CRI

CXA1304-0000-000N00B450F Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Cree
Product Category	High Power LEDs - White
RoHS	Details
Package / Case	COB - Chip-on-Board
Illumination Color	White (Cool White)
Wavelength/Color Temperature	5000 K
Luminous Intensity	-
Luminous Flux/Radiant Flux	410 lm
Color Rendering Index - CRI	70
Viewing Angle	115 deg
Lens Color/Style	Tinted, Clear
If - Forward Current	100 mA
Vf - Forward Voltage	36 V
Power Rating	10.9 W
Mounting Style	SMD/SMT
Length	13.35 mm
Width	13.35 mm
Height	1.15 mm
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Packaging	Tray
Features	-
Type	High Power LEDs
LED Size	13.35 mm x 13.35 mm x 1.15 mm
Lens Shape	Round Flat
Color Temperature	5000 K
Lens Dimensions	6 mm
Factory Pack Quantity	100
Vr - Reverse Voltage	-
Unit Weight	0.026455 oz

Preview

Download Datasheet

View All

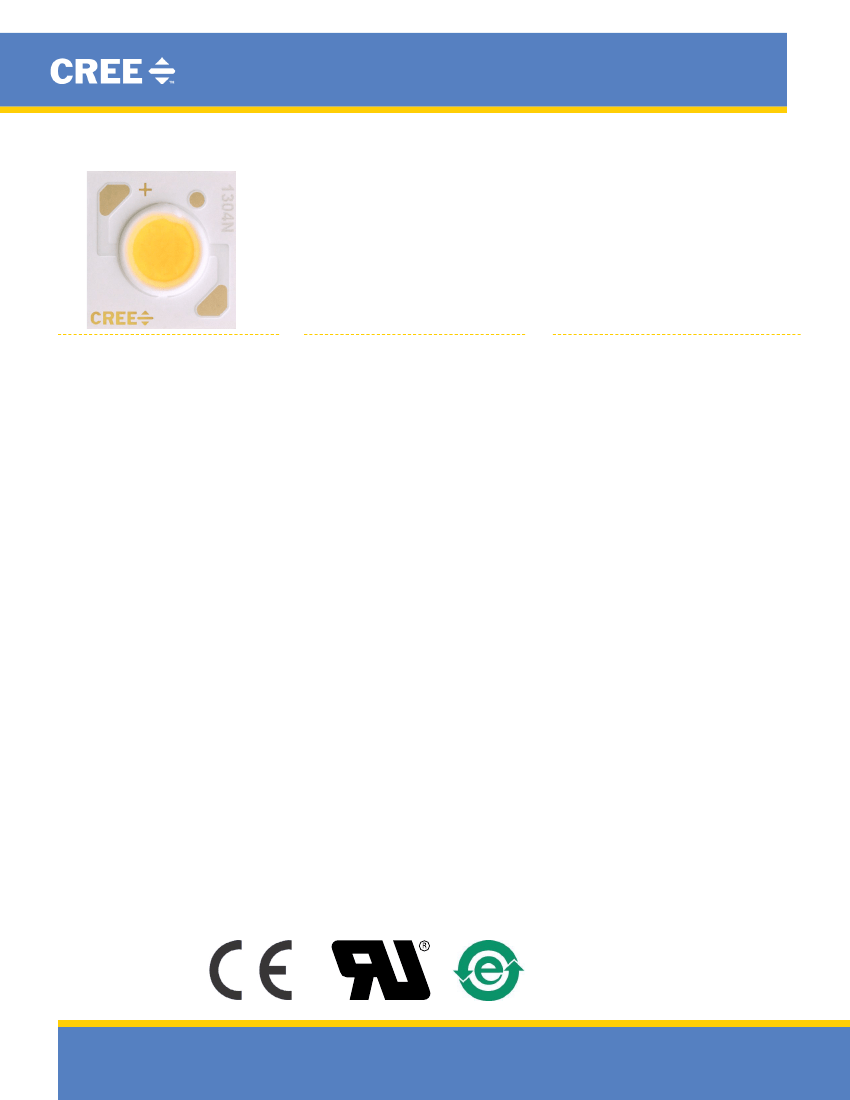

CLD-DS73 Rev 9A

Product family data sheet

Cree

XLamp

CXA1304 LED

ProDuCt DEsCriPtion

The

XLamp

CXA1304

LeD

array

expands Cree’s family of high‑flux,

multi‑die arrays in a smaller, easy‑to‑use

platform. With XLamp LED lighting‑class

reliability,

the

CXA1304’s

small,

uniform emitting surface enables both

directional and non‑directional lighting

applications including lamp retrofit and

luminaire designs. Available in 2‑step,

3‑step and 4‑step color consistency, and

featuring a 6‑mm optical source, the

CXA1304 brings new levels of flux and

efficacy to this form factor.

The

CX Family LED Design Guide

provides basic information on the

requirements to use the CXA1304 LED

successfully in luminaire designs.

fEAturEs

•

Available in 4‑step, 3‑step and 2‑step

EasyWhite

bins at 2700 K, 3000 K,

3500 K, 4000 K & 5000 K CCT and

4‑step EasyWhite bins at 5700 K &

6500 K CCT

•

Available in ANSI white bins at

4000 K, 5000 K, 5700 K & 6500 K

CCT

•

Available in 70‑, 80‑, 90‑ and

93‑minimum CRI options

Forward voltage options: 9‑V class,

18‑V class & 36‑V class

85 °C binning and characterization

Maximum drive current: 1000 mA

(9 V), 500 mA (18 V), 250 mA (36 V)

115° viewing angle, uniform

chromaticity profile

Top‑side solder connections

Thermocouple attach point

NEMA SSL‑3 2011 standard flux

bins

RoHS and REACh compliant

recognized component

(E349212)

tAbLE of ContEnts

Characteristics ..............................................2

Operating Limits ............................................3

Flux Characteristics, EasyWhite

Order

Codes and Bins ‑ 9 V .....................................5

Flux Characteristics, ANSI White Order

Codes and Bins ‑ 9 V .....................................8

Flux Characteristics, EasyWhite

Order

Codes and Bins ‑ 18 V ...................................9

Flux Characteristics, ANSI White Order

Codes and Bins ‑ 18 V ................................ 12

Flux Characteristics, EasyWhite

Order

Codes and Bins ‑ 36 V ................................

Flux Characteristics, ANSI White Order

Codes and Bins ‑ 36 V ................................ 16

Relative Spectral Power Distribution ........

Electrical Characteristics ...........................

Relative Luminous Flux ..............................

Typical Spatial Distribution........................ 22

Performance Groups ‑ Brightness ............ 22

Performance Groups ‑ Chromaticity ......... 23

Cree EasyWhite

Bins Plotted on the

1931 CIE Color Space ................................ 26

Cree ANSI White Bins Plotted on the

1931 CIE Color Space ................................ 26

Bin and Order Code Formats ..................... 27

Mechanical Dimensions ............................ 27

Thermal Design

.......................................... 28

Notes ..........................................................

Packaging ...................................................

WWW.CREE.Com/XLAmp

, XLamp

and

EasyWhite

are registered trademarks and the Cree logo is a trademark of Cree, Inc. UL

and the UR logo are registered trademarks of UL LLC.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300
