NOTES
1. UL
A.
B.
1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
:
LISTED AND CSA CERTIFIED AFTER HEAT SHRINKING FOR:
600 V MAX. VOLTAGE RATING
TEMPERATURE RATING OF INSULATION:
125 C(257 F)
C. STRANDED COPPER WIRE ONLY (SEE CHART FOR WIRE RANGE)
B
C
2. MATERIAL :
A. CONNECTOR - TIN PLATED COPPER TUBE, BRAZED SEAM BSH10 ONLY
B. INSULATOR - HEAT SHRINKABLE POLYOLEFIN WITH HOT MELT
SEALANT
3. MINIMUM SHRINK TEMPERATURE: 300 F (150 C)
4. ALL DIMENSIONS SHOWN ARE NOMINAL.
DIMENSIONS IN BRACKETS ARE IN MILLIMETERS.
5. INSTALLATION TOOL: CT-310
6. WIRE STRIP LENGTH: 5/16
+1/16
-0
B
L
(BEFORE SHRINKING)
7. SEE www.panduit.com FOR PART NUMBER
SUFFIX DESIGNATION FOR PACKAGE SIZE.
PANDUIT
PART NUMBER
BSH18
BSH14
BSH10
WIRE
RANGE
(AWG)
22-18
DIMENSIONS
C
L
MAX WIRE
INSULATION
DIA
.170
(4,32)
.190
(4,83)
.240
(6,10)
INSULATION
COLOR
RED
BLUE
YELLOW
TITLE
.58
1.45
(14,7)
(36,8)
.58
1.45
16-14
(14,7)
(36,8)
12-10
.74
1.64
(18,8)
(41,7)
LISTED
12D0
CERTIFIED
73971
A
HEAT
SHRINK
INSULATED
BUTT
SPLICES

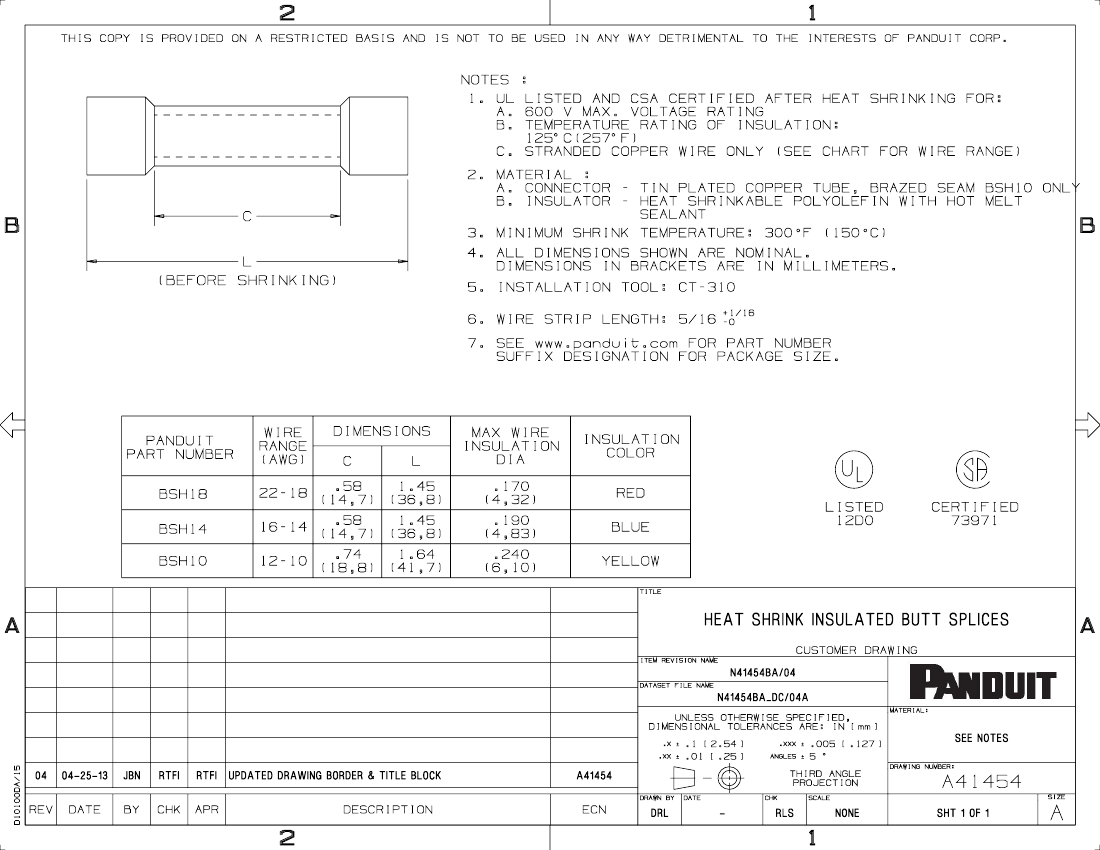

CUSTOMER DRAWING
ITEM REVISION NAME
A
N41454BA/04
DATASET FILE NAME
N41454BA_DC/04A
MATERIAL:
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XX
.1 [2.54]
.01 [.25]
.XXX
ANGLES
.005 [.127]
5
DRAWING NUMBER:
SEE
NOTES
D10100DA/15
04
REV
04-25-13
DATE
JBN
RTFI
RTFI
UPDATED
DRAWING
BORDER
&
TITLE
BLOCK
A41454
DRAWN BY
DATE
CHK
THIRD ANGLE
PROJECTION
SCALE
A41454
SIZE
BY
CHK
APR
DESCRIPTION
ECN
DRL
-
RLS
NONE
SHT
1
OF
1
A
