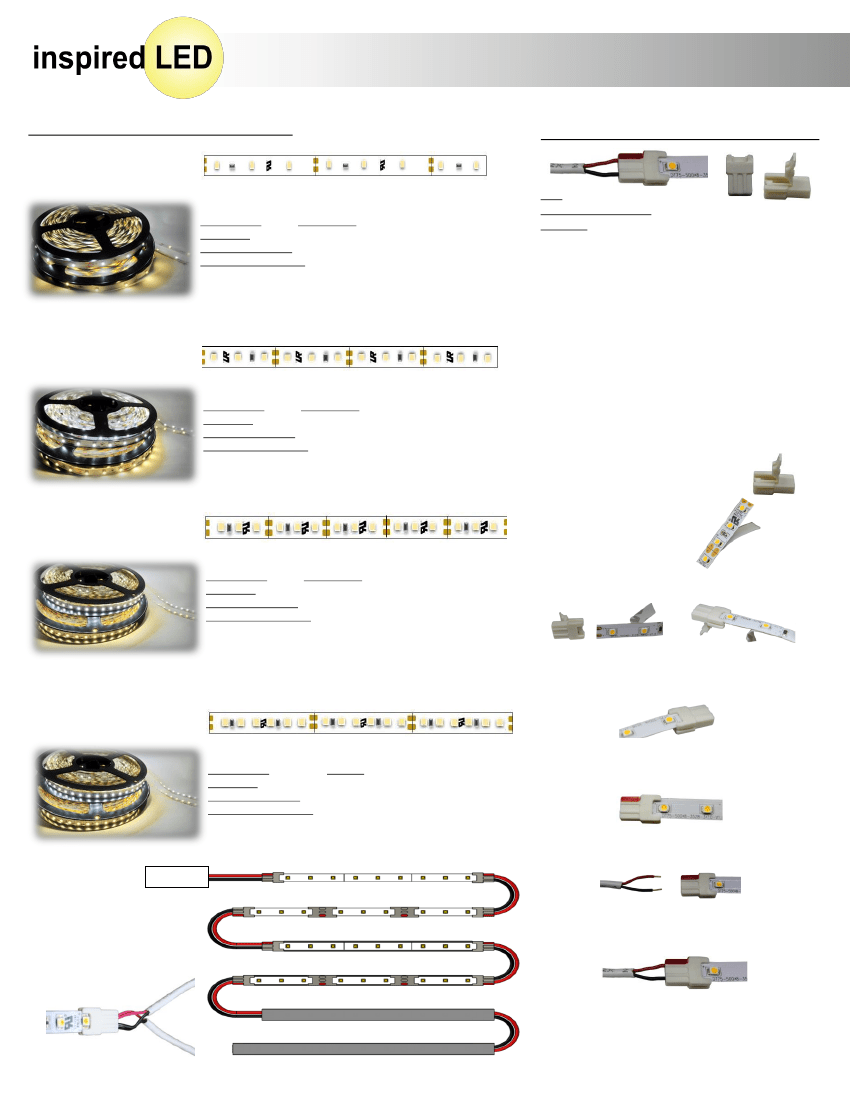

8mm iDea Series Flexible LED System
Compatible Flexible LED Strips
Solderless Wire Lock Connector:
NORMAL
Bright
Product Code:
NB-WW-12M
CED Flex
30
White LEDs per Meter 12V
(9 LEDs per foot)
LED Spacing: 1.31” Reel Length: 12M
Cut Points: Every 4”
Color Temperature:
(Warm) ~3000K (Pure) ~4200K (Cool) ~6000K
Lumen/Power Output: 100lm per Watt,
1W per foot
Ideal for above cabinets, coves, and ceiling trays.
Recommended for use as accent light, not primary light
source.
Size: 0.42” x 0.63” x 0.19”
Screw Terminal Size: Fits 18-24AWG
Quantity: Sold in sets of 25, includes 5 LED Strip
extenders
Product Code:
3563
Ideal for making custom length flex strips in the field.
Perfect for contractors and electricians. Input terminals
work with
18-22AWG solid strand cable.
SUPER
Bright
CED Flex
Product Code:
SBWW-12M
Termination for Inspired LED Flex Strips only
5 IDEA Series Connectors and 1 Flexible LED
Strip Extenders included in each flexible LED
Strip reel.
To be used for in indoor applications
Allows for assembly and testing before
installation
Does not require the use of a soldering iron
60
White LEDs per Meter 12V
(18 LEDs per foot)
LED Spacing: 0.66” Reel Length: 12M
Cut Points: Every 1.97”
Color Temperature:
(Warm) ~3000K (Pure) ~4200K (Cool) ~6000K
Lumen/Power Output: 100lm per Watt,
2W per foot
Best Value
. Great for accent lighting and low level task lighting.
Ideal for under cabinet, and display cabinets.
STEP 1:
Open connector locking cap.
ULTRA
Bright
CED Flex
Product Code:
UBWW-12M
STEP 2:
Peel adhesive liner
from flexible LED strip.
99
White LEDs per Meter 12V
(30 LEDs per foot)
LED Spacing: 0.39” Reel Length: 12M
Cut Points: Every 1.18”
Color Temperature:
(Warm) ~3000K (Pure) ~4200K (Cool) ~6000K
Lumen/Power Output: 100lm per Watt,
3.2W per foot
Perfect for task lighting applications. Most commonly used for
under cabinets, garages, safes and jewelry cases. Excellent for
restaurant and retail.
STEP 3:
Insert flexible LED strip into LED input
channel of connector.
STEP 4:
Close locking cap until the snap of the
connector is heard. The snapping sound indicates
the locking cap has been properly terminated.
MEGA
Bright
Flex
Product Code:
MBWW- 12M
120
White LEDs per Meter 12V or 24V
(36 LEDs per foot)
LED Spacing: 0.33” Reel Length: 12M
Cut Points: Every 1.97”
Color Temperature:
(Warm) ~3000K (Pure) ~4200K (Cool) ~6000K
Lumen/Power Output: 100lm per Watt,
4W per foot
Use when too much light is just right.
12V DC Power
Source
STEP 5:
Identify polarity on LED strip. Polarity is
marked throughout the length of the flexible LED
stip. Use a red sharpie to mark polarity on connector.
STEP 6:
Strip 18-22AWG cable and match polarity
between LED connector and cable.
NOTE:
Products can be used in series to
create an LED system. When using solid
22AWG wire, two cables can be inserted into
the connector to create a custom Y cable. This
is extremely useful when breaking the LED
system into two directions from a single
connector.
STEP 7:
Poke cable leads into wire holes of
connector making sure the positive polarity matches
the positive input hole of connector.
NOTE:
Connectors are not assigned polarity. Polarity must be
defined by user. Look throughout the length of the strip to identify
polarity, it may not be indicated exactly at each cut point. Check
termination by tugging on the cable leads and LED flex to insure tight
connections. Cable should be difficult to remove when properly
terminated.

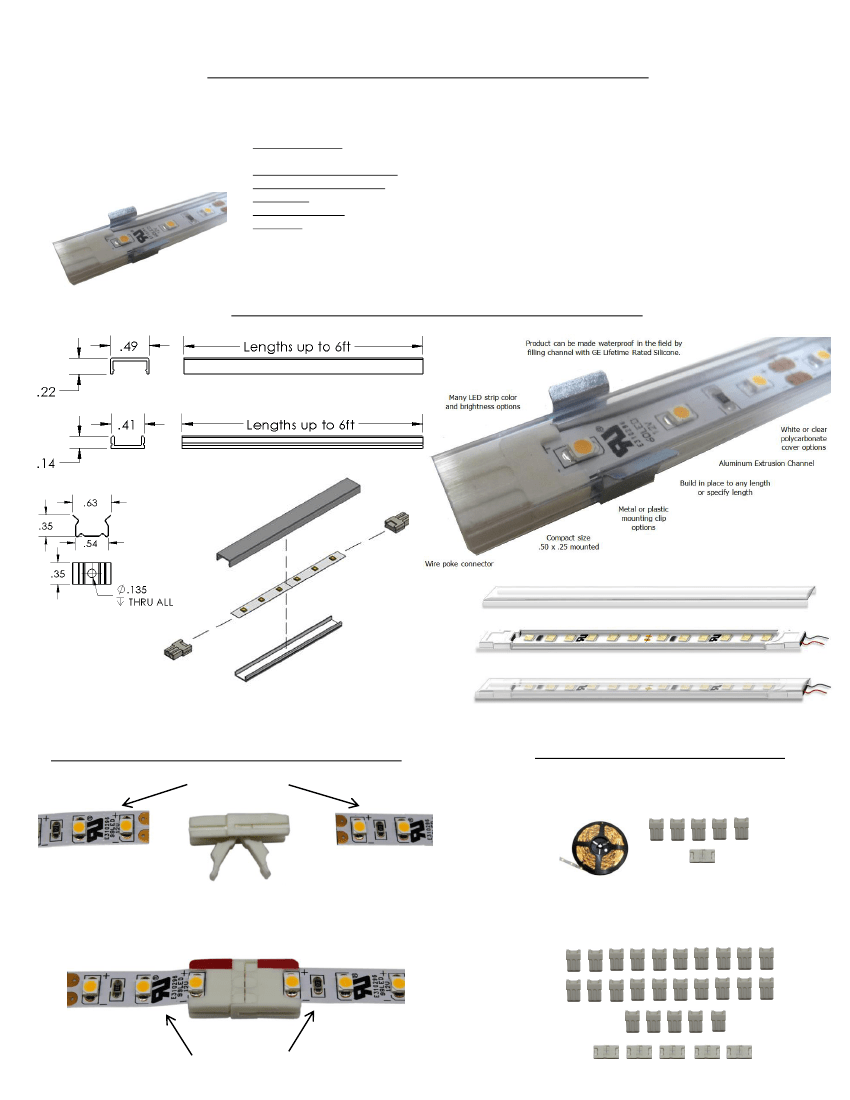

iDea Series LED Extrusion w/ Lens – LED Panels
on Demand
Extrusion w/ Lens
Bright Flex
Aluminum Channel (6’):
3565
Polycarbonate Covers (6’):
3566
Mounting Clips/Screws (10/bag):
3567
Black Clips/Screws (10/bag):
4774
LED Panels on Demand
Flexible LED Strip: Fits
Normal
,
Super
,
Ultra
and
Mega Bright
Flex Strips
Aluminum Extrusion Channel:
0.14” x 0.41” x
72”
Polycarbonate Covers/Lens:
0.22” x 0.5” x
72”
Lens Colors: White (Frosted) or Clear
Color Temperature:
(Warm) ~3000K (Pure) 4200K (Cool) 6000K
Mounting: Metal or Plastic Mounting Clips
Create custom low profile panels within minutes.
All panel materials are optional and sold
separately
Tiny, light weight construction
Provides a beautiful finished look
Allows for in-field assembly and testing before
installation
Does not require the use of a soldering iron or
heavy machinery
iDea Series LED Extrusion w/ Lens Assembly
Solderless Flexible LED Strip Extender
Match polarity between
joining LED strips
iDea Series Connector Sets
Each
Inspired LED
12M LED Flexible Strip
Reel
includes 5 IDEA Series Connectors and 1
Flexible Strip Extender.
Open locking caps on each
side of connector
IDEA Series Connectors are sold in 30 piece sets.
25 Wire Lock Connectors + 5 Flex Extenders
Mark polarity using a RED
sharpie pen
Close locking caps
Insert flex strips into LED
channels on each side of the
connector
