32S151-K00L5: DescriptionRF Adapters - Between Series SMA Plug to BNC Jack 50ohm Jack Adapter; CategoryThe connector The connector; File Size308KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/; Environmental Compliance

Download Datasheet Parametric View All

32S151-K00L5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	32S151-K00L5	-	-	View	Buy Now

32S151-K00L5 Overview

RF Adapters - Between Series SMA Plug to BNC Jack 50ohm Jack Adapter

32S151-K00L5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	SMA-BNC
Other features	CAPTIVATED CENTER CONTACT
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE-FEMALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	THREADED-BAYONET
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insertion loss	0.12 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Installation method	STRAIGHT
Maximum operating frequency	6 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
voltage standing wave ratio	1.08
Base Number Matches	1

Preview

Download Datasheet

View All

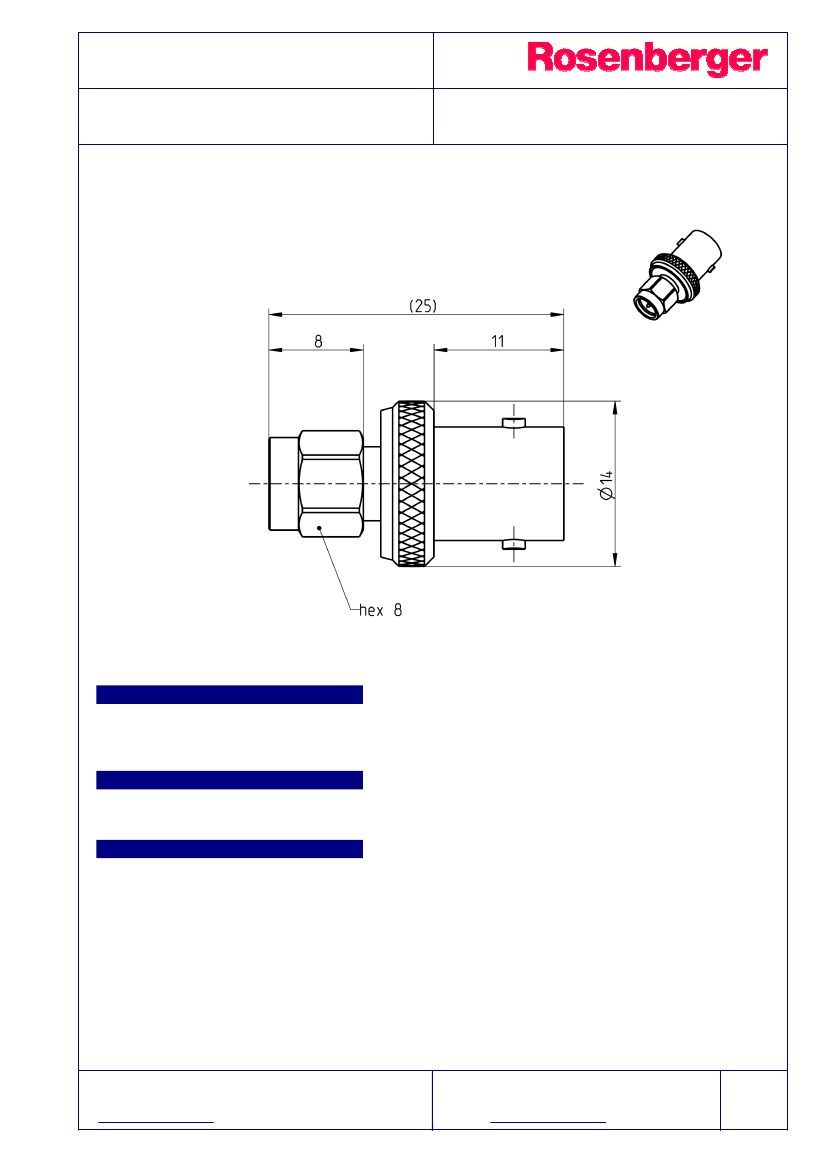

TECHNICAL DATA SHEET

ADAPTOR

SMA PLUG – BNC 50

Ω

JACK

32S151-K00L5

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

SMA side:

BNC side:

IEC 60169-15; EN 122110; MIL-STD-348

IEC 60169-8, MIL-PRF-39012, CECC 22120

Documents

N/A

Material and plating

Connector parts

Center contact

Outer contact SMA side

Outer contact BNC side

Dielectric

Gasket

Coupling nut SMA side

Material

CuBe

CuBe or equivalent

Brass

PTFE

Silicone

CuBe or equivalent

Plating

AuroDur®, gold plated

Nickel, 2.5-5 µm

Gold, 0.1 µm

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

email: info@rosenberger.de

Page

1/2
