90779-0001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 90779-0001

90779-0001: DescriptionHeaders & Wire Housings PICOFLEX PF-50 4 CKT HEADER; CategoryThe connector The connector; File Size68KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

90779-0001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	90779-0001	-	-	View	Buy Now

90779-0001 Overview

Headers & Wire Housings PICOFLEX PF-50 4 CKT HEADER

90779-0001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	31 weeks
Other features	LOW PROFILE, POLARIZED, STAGGERED CONFIGURATION
Board mount options	LOCATING POSTS
body width	0.197 inch
subject depth	0.252 inch
body length	0.349 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.6958 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Manufacturer's serial number	90779
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	120u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Evacuation force-minimum value	.2502 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 02/06/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0907790001

Active

Picoflex Ribbon-Cable Connectors

Picoflex PF-50 Header, Vertical, Low Profile, High Temperature Surface Mount

Capable, 4 Circuits, Glow Wire Capable

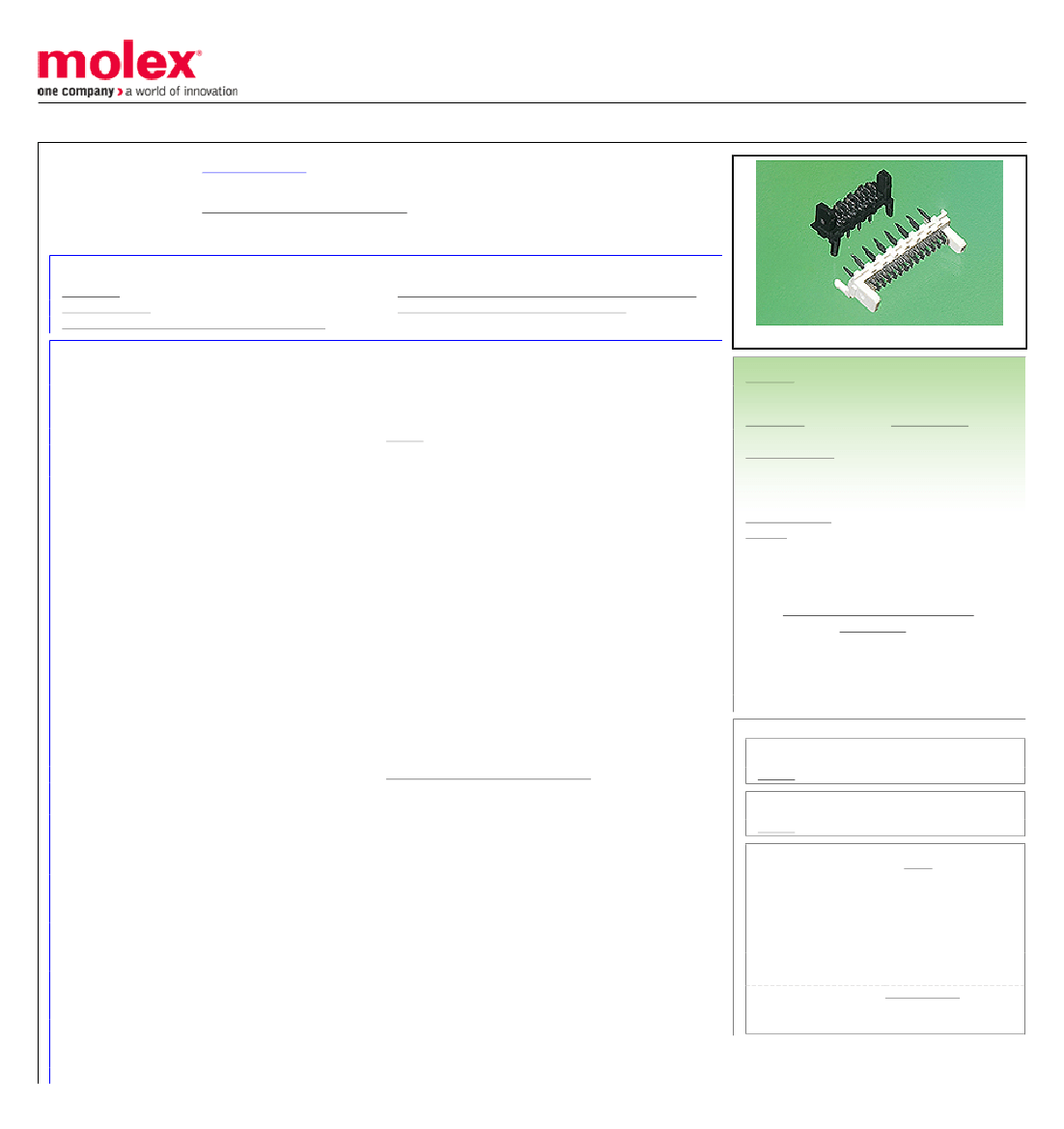

Documents:

3D Model

Drawing (PDF)

Product Specification PS-99020-0011 (PDF)

Agency Certification

General

Product Family

Series

Application

Application Tooling Part Link

Comments

Packaging Specification PK-90325-002-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

PCB Headers

90779

Signal, Wire-to-Board

69008-1070

"""""""This Molex product is manufactured from material

that has the following ratings, tested by independent

agencies:. a) A Glow Wire Ignition Temperature (GWIT)

of at least 775 deg C per IEC 60695-2-13.. b) A Glow

Wire Flammability Index (GWFI) above 850 deg C

per IEC 60695-2-12.and hence complies with the

requirements set out in the International Standard IEC

60335-1 5th edition - household and similar electrical

appliances - safety, section 30 Resistance to heat

and fire. <P><P> The customers using this product

must determine its suitability for use in their particular

application through testing or other acceptable means

as described in end-product glow-wire flammability test

standard IEC 60695-2-11 and any applicable product

end-use standard(s). <P> If it is determined during

the customer’s evaluation of suitability, that higher

performance is required, please contact Molex for

possible product options."""""""

Picoflex Ribbon-Cable Connectors

Picoflex

800754256025

Natural

94V-0

Yes

None

Yes

Brass

Tin

High Temperature Thermoplastic

0.249/g

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Resin

Net Weight

Search Parts in this Series

90779 Series

Mates With

90327 IDT Connector

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Extraction Tool

0690081070

(Plastic) for 4-26

Circuit
