BM27-400-6A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> BM27-400-6A

BM27-400-6A: DescriptionNORMAL MODE CHOKES; CategoryPassive components inductor; File Size133KB，1 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BM27-400-6A Overview

NORMAL MODE CHOKES

BM27-400-6A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknow
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.07 Ω
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	BM27
Number of functions	1
Number of terminals	2
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	IMPEDANCE IS : 860 OHMS
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE

Preview

Download Datasheet

View All

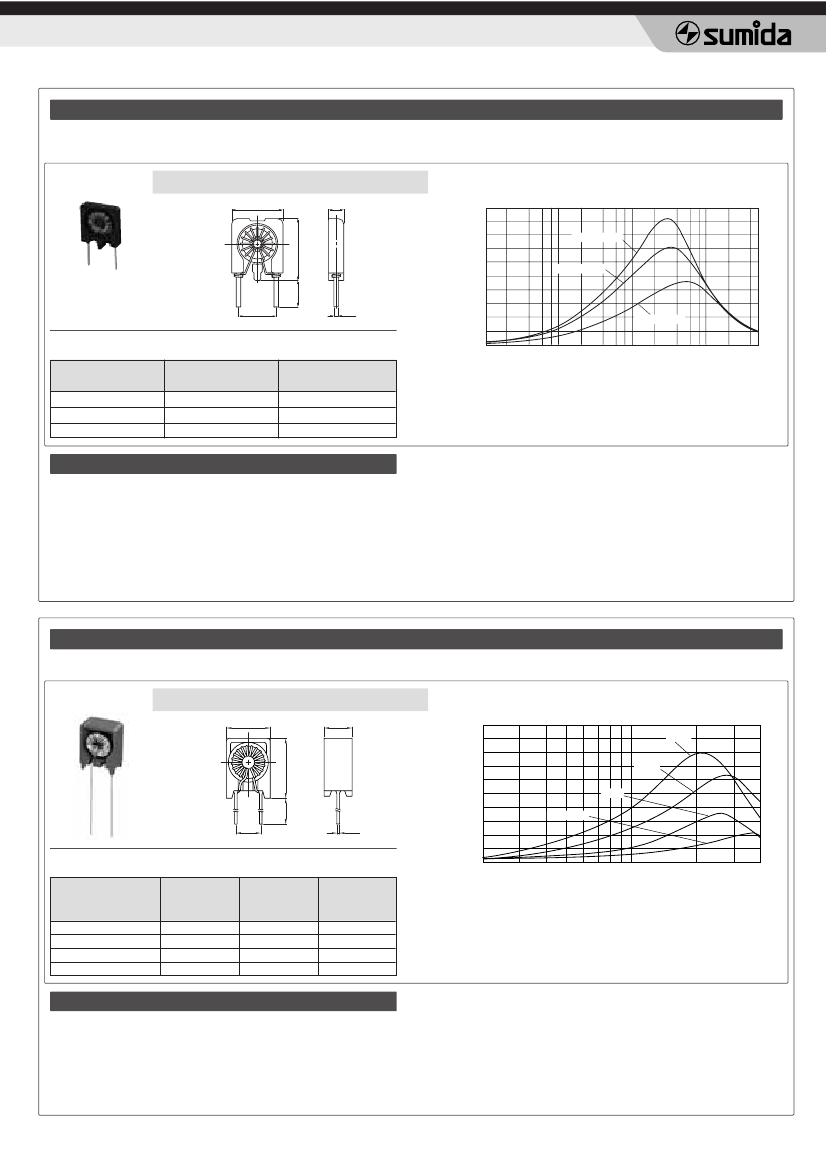

NORMAL MODE CHOKES

OUTLINE

／概要

1. Removal of high frequency noise of data lines for various kinds of

digital equipments.

1. 各種デジタル機器のデータラインの高周波ノイズを除去。

BM27

DIMENSIONS (mm)

外½寸法図

7.5MAX.

2.5MAX.

Impedance Characteristics

／インピーダンス特性

2000

8.7MAX.

1600

BM27-400-6A

IMPEDANCE (Ω)

1200

BM27-300-6A

800

5.0

25.5

ø0.5

400

BM27-200-6A

Specifications

／仕様

Type

品名

BM27-200-6A

BM27-300-6A

BM27-400-6A

0.1M

10M

100M

500M

Impedance (@10MHz 0.1V)

インピーダンス

Min. 450Ω

Min. 620Ω

Min. 860Ω

D.C.R.

直流抵抗

Max. 50mΩ

Max. 60mΩ

Max. 70mΩ

FREQUENCY (Hz)

FEATURES

／特徴

1. Low cost type

2. Using ferrite core of large loss in high frequency band

3. High impedance for normal mode noise.

4. Automatic mounting is possible by delivery of radial tape

1. 廉価タイプ

2. 高周波損失の大きいフェライト材を½用

3. ノーマルモード用として高インピーダンス

4. ラジアルテープにより自動実装可½

◆

APPLICATION

／用途

Normal mode chokes.

* Data communication equipment.

* Hard disk drive.

* Image scanner.

ノーマルモードチョーク

※データ通信機器

※ハードディスクドライブ

※イメージスキャナ

OUTLINE

／概要

1. Normal mode chokes

1. ノーマルモードチョーク

SLF0912

DIMENSIONS (mm)

外½寸法図

9.5MAX.

6.3MAX.

Impedance Characteristics

／インピーダンス特性

3.0

2.7

560N

12.7MAX.

2.5

IMPEDANCE (kΩ)

2.2

2.0

1.7

1.4

1.2

0.9

0.7

390N

270N

180N

(5.0)

3.5

ø0.5

Specifications

／仕様

Type

品名

0.5

10M

20M

30M

40M

Inductance

インダクタンス

@100kHz

18µH

27µH

39µH

56µH

D.C.R.

直流抵抗

Rated current

定格電流

FREQUENCY (Hz)

SLF0912-180N

SLF0912-270N

SLF0912-390N

SLF0912-560N

Max. 77mΩ

Max. 100mΩ

Max. 150mΩ

Max. 260mΩ

1.8A

1.3A

1.1A

800mA

FEATURES

／特徴

1. Using iron dust core

2. Effective high noise absorption

3. Automatic mounting is possible by delivery of radial tape

1. アイアンダストコア½用

2. 高ノイズ吸収効果

3. ラジアルテープにより自動実装可½

◆

APPLICATION

／用途

1. PC, microcomputer application equipments, IC application

household electric appliance equipments

1. パ½コン、マイコン応用機器、IC応用家電機器

BM27-400-6A Related Products

	BM27-400-6A	BM27-200-6A	BM27	BM27-300-6A
Description	NORMAL MODE CHOKES	NORMAL MODE CHOKES	NORMAL MODE CHOKES	NORMAL MODE CHOKES
Is it lead-free?	Lead free	Lead free	-	Lead free
Is it Rohs certified?	conform to	conform to	-	conform to
Maker	SUMIDA	SUMIDA	-	SUMIDA
Reach Compliance Code	unknow	unknow	-	unknow
ECCN code	EAR99	EAR99	-	EAR99
core material	FERRITE	FERRITE	-	FERRITE
DC Resistance	0.07 Ω	0.05 Ω	-	0.06 Ω
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	BM27	BM27	-	BM27
Number of functions	1	1	-	1
Number of terminals	2	2	-	2
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE
shield	NO	NO	-	NO
special characteristics	IMPEDANCE IS : 860 OHMS	IMPEDANCE IS : 450 OHMS	-	IMPEDANCE IS : 620 OHMS
surface mount	NO	NO	-	NO
Terminal location	RADIAL	RADIAL	-	RADIAL
Terminal shape	WIRE	WIRE	-	WIRE
