AWHW-14G-0202-T: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator,; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/; Environmental Compliance

Download Datasheet Parametric View All

AWHW-14G-0202-T Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator,

AWHW-14G-0202-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.352 inch
subject depth	0.354 inch
body length	1 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

Pin No.

10

14

16

20

24

26

30

34

40

50

60

64

A

20.32

25.40

27.94

33.02

38.10

40.64

45.72

50.80

58.42

71.12

83.82

88.90

B

10.16

15.24

17.78

22.86

27.94

30.48

35.56

40.64

48.26

60.96

73.66

78.74

C

18.02

23.10

25.64

30.72

35.80

38.34

43.42

48.50

56.12

68.82

81.52

86.60

Material:

• Insulator: Polyester (UL94V-0)

• Insulator Standard: PBT

• Contact: Brass

• Contact Plating: Tin, Gold Flash or 30 ” Gold (Selective)

Electrical:

• Current Rating: 3A

• Contact Resistance: 20m Max.

• Insulation Resistance: 5,000M Min.

• Withstanding Voltage: AC 1,000V

• Operation Temperature: -40°C to +105°C

Scale

X.

X.X

as shown

Order Code:

AWHWxxG-0x02-T-R

Order pin number: 10,14,16,

20,24,26,30,34,40,50,60,64

Contact plating: 30 ” Gold (1),

Gold Flash (2), Tin (5)

Date

Name

Wilson

Groll

Title

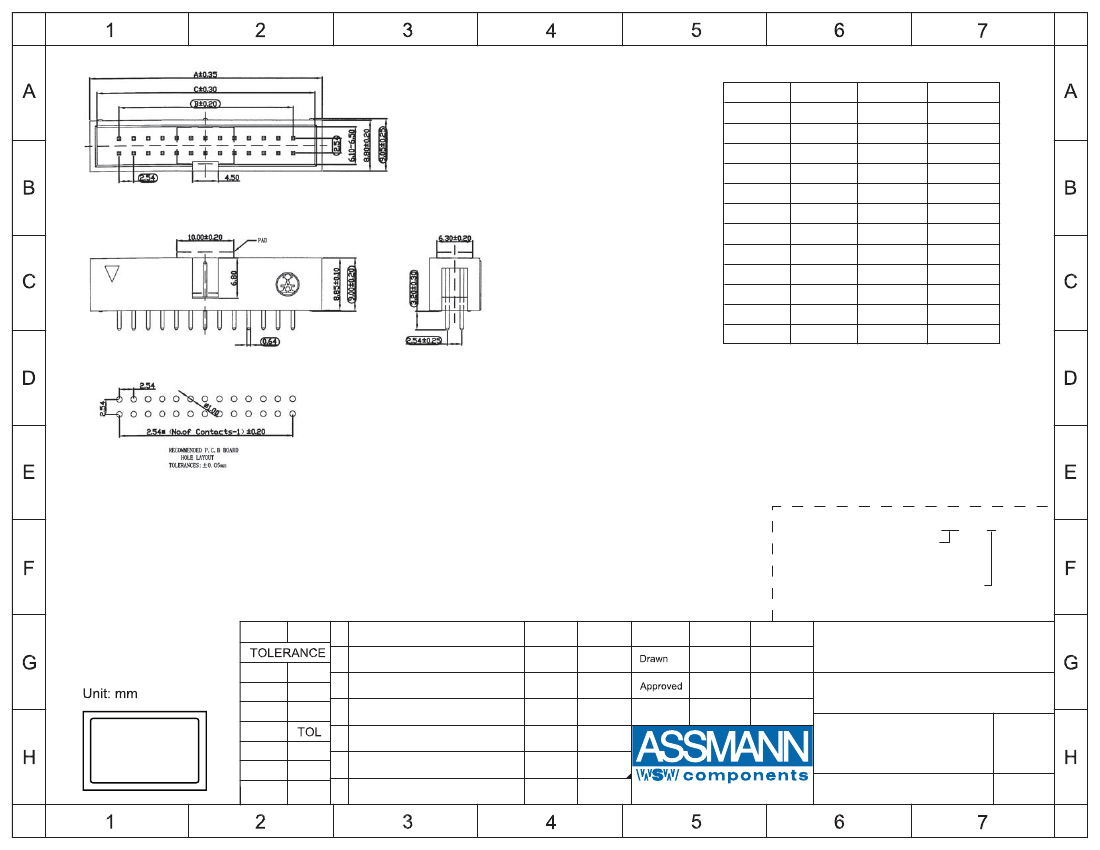

Boxheader - Low Profile

10-64 pin, straight pin, 2.54mm pitch

ASSMANN WSW-No.

13.03.13

±0.50

±0.35

±0.25

±1°

±0.5°

TOL

Id.

Updated all information

Modification

13.03.13

Date

Wilson

13.03.13

AWHWxxG-0x02-T-R

Drawing-No.

RoHS

Compliant

X.XX

DIM

X.°

X.X°

Angle

rev01

Replace

Name

1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283

Toll Free: 1-877-277-6266 • Email: info@assmann.us

Sheet

1/1
