AWHW-40G-0202-T datasheet, PDF

Datasheet> All Categories > The connector> The connector> AWHW-40G-0202-T

AWHW-40G-0202-T: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator,; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/; Environmental Compliance

Download Datasheet Parametric View All

AWHW-40G-0202-T Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator,

AWHW-40G-0202-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.352 inch
subject depth	0.354 inch
body length	2.3 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

Pin No.

20.32

25.40

27.94

33.02

38.10

40.64

45.72

50.80

58.42

71.12

83.82

88.90

10.16

15.24

17.78

22.86

27.94

30.48

35.56

40.64

48.26

60.96

73.66

78.74

18.02

23.10

25.64

30.72

35.80

38.34

43.42

48.50

56.12

68.82

81.52

86.60

Material:

• Insulator: Polyester (UL94V-0)

• Insulator Standard: PBT

• Contact: Brass

• Contact Plating: Tin, Gold Flash or 30 ” Gold (Selective)

Electrical:

• Current Rating: 3A

• Contact Resistance: 20m Max.

• Insulation Resistance: 5,000M Min.

• Withstanding Voltage: AC 1,000V

• Operation Temperature: -40°C to +105°C

Scale

X.X

as shown

Order Code:

AWHWxxG-0x02-T-R

Order pin number: 10,14,16,

20,24,26,30,34,40,50,60,64

Contact plating: 30 ” Gold (1),

Gold Flash (2), Tin (5)

Date

Name

Wilson

Groll

Title

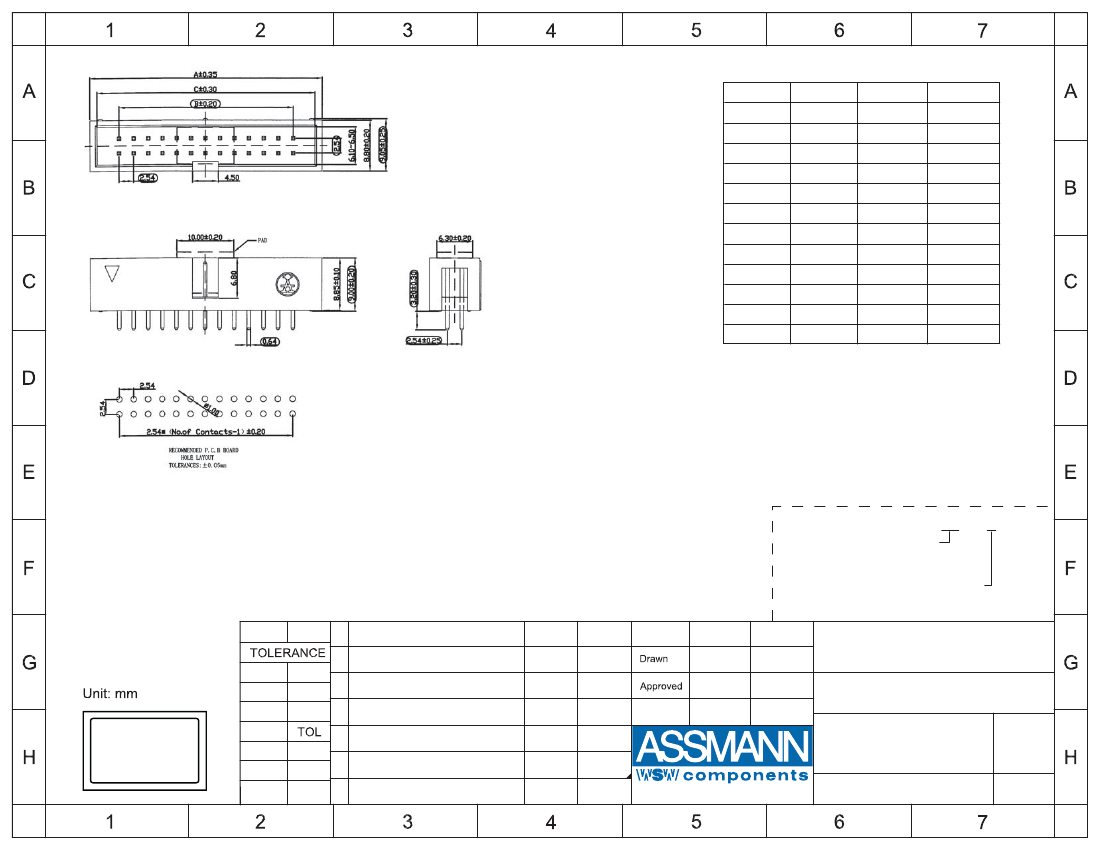

Boxheader - Low Profile

10-64 pin, straight pin, 2.54mm pitch

ASSMANN WSW-No.

13.03.13

±0.50

±0.35

±0.25

±1°

±0.5°

TOL

Id.

Updated all information

Modification

13.03.13

Date

Wilson

13.03.13

AWHWxxG-0x02-T-R

Drawing-No.

RoHS

Compliant

X.XX

DIM

X.°

X.X°

Angle

rev01

Replace

Name

1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283

Toll Free: 1-877-277-6266 • Email: info@assmann.us

Sheet

1/1
