LC-X1220P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> LC-X1220P

LC-X1220P: DescriptionSealed Lead Acid Battery 12V 20AH BOLT/NUT; CategoryPower/power management; File Size32KB，1 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

LC-X1220P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LC-X1220P	-	-	View	Buy Now

LC-X1220P Overview

Sealed Lead Acid Battery 12V 20AH BOLT/NUT

LC-X1220P Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Panasonic
Product Category	Sealed Lead Acid Battery
RoHS	Not Applicable
Output Voltage	12 V
Chemistry	Lead Acid
Height	94 mm
Length	151 mm
Rechargeable/Non-Rechargeable	Rechargeable
Type	Sealed Lead Acid Batteries
Width	50 mm
Factory Pack Quantity	4
Unit Weight	4.409 lbs

Preview

Download Datasheet

View All

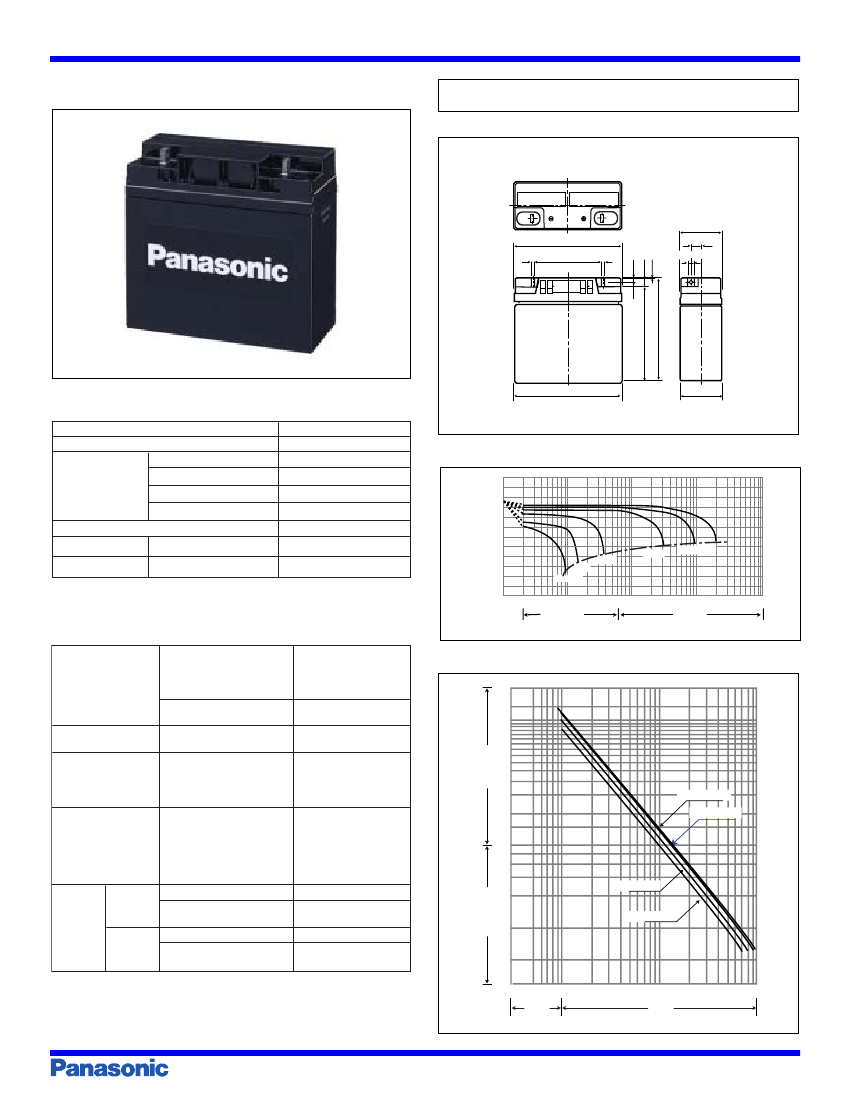

VALVE-REGULATED LEAD ACID BATTERIES: INDIVIDUAL DATA SHEET

LC-X1220P/LC-X1220AP

For main and standby power supplies. Expected trickle life: Approx.

6 years at 25°C, Approx. 10 years at 20°C.

Dimensions (mm)

Terminal type: LC-X1220P: M5 bolt and nut

LC-X1220AP: M5 threaded post

2.992±0.079 (76±2)

0.492 (12.5)

0.217 (5.5)

0.040 (1)

7.126±0.079 (181±2)

0.197 (5)

4.429 (112.5)

0.886 (22)

0.443 (11)

Photo/Label for reference only.

(a) The photo and dimensions represent LC-X1220P.

7.067 (179.5)

6.575±0.079 (167±2)

6.043 (153.5)

2.933 (74.5)

Specifications

Nominal Voltage

Rated Capacity (20 hour rate)

Length

Dimensions

Width

Height

Total Height

Approx. mass

Standard Terminals

and Resin

Optional Terminals and

Resin

12V

20Ah

7.126 inches (181.0 mm)

2.992 inches (76.0 mm)

6.575 inches (167.0 mm)

14.56 lbs. (6.6 kg)

LC-X1220P

LC-X1220AP

Battery case resin: Standard (UL94HB) Color is black.

Discharge characteristics 77°F (25°C)

(Note)

14.4

13.8

13.2

12.6

12.0

11.4

10.8

10.2

9.6

9.0

8.4

7.8

7.2

UL94HB M5 Bolt and Nut

UL94HB M5 Threaded Post

Terminal voltage (V)

20A

40A

60A

1 2

4 6 810

40 60

♦

Please contact Panasonic for availability on optional items. Optional items may be subject to minimum

order quantities.

4 6 810

Characteristics

20 hour rate (1.2A)

10 hour rate (2.2A)

Capacity

(note)

5 hour rate (3.8A)

1 hour rate (14A)

77˚F (25˚C)

1.5 hour rate discharge

Cut-off voltage 10.5 V

Fully charged battery

Internal Resistance

77˚F (25˚C)

Temperature

104˚F (40˚C)

dependency

77˚F (25˚C)

of capacity

32˚F (0˚C)

(20 hour rate)

5˚F (-15˚C)

Residual capacity

after standing 3 months

Self discharge

Residual capacity

77˚F (25˚C)

after standing 6 months

Residual capacity

after standing 12 months

Initial current

Cycle use

Charge

(Repeating

Control voltage

use)

Method

(Constant

Initial current

Voltage)

Trickle use

Control voltage

20Ah

18Ah

16Ah

12Ah

9.8A

Approx. 11mΩ

102%

100%

85%

65%

91%

82%

64%

8 A or smaller

14.5 V to 14.9 V

(per 12V cell 25˚C)

3 A or smaller

13.6V to 13.8V

(per 12V cell 25˚C)

(Hour)

(Minute)

(Hour)

Duration of Discharge

Duration of discharge vs. Discharge current

(Note)

1.5

32˚F (0˚C)

104˚F (40˚C)

77˚F (25˚C)

Duration of discharge

(Minute)

5˚F (-15˚C)

(Note) The above characteristics data are average values obtained

within three charge/discharge. Cycles not the minimum values.

(Note) For cycle use of the battery, please contact us in advance.

300 500

100

(mA)

(A)

Discharge current

VRLA BATTERIES PAGE 49

AUGUST 2005
