KS57P2316 datasheet, PDF - EEWORLD Datasheet

KS57P2316: DescriptionBONDING DIAGRAM; CategoryThe embedded processor and controller Microcontrollers and processors; File Size39KB，4 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric View All

KS57P2316 Overview

BONDING DIAGRAM

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	QFP
package instruction	QFP,
Contacts	80
Reach Compliance Code	unknow
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	6 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PQFP-G80
length	20 mm
Number of I/O lines	40
Number of terminals	80
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
ROM programmability	OTPROM
Maximum seat height	3 mm
speed	1.0475 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

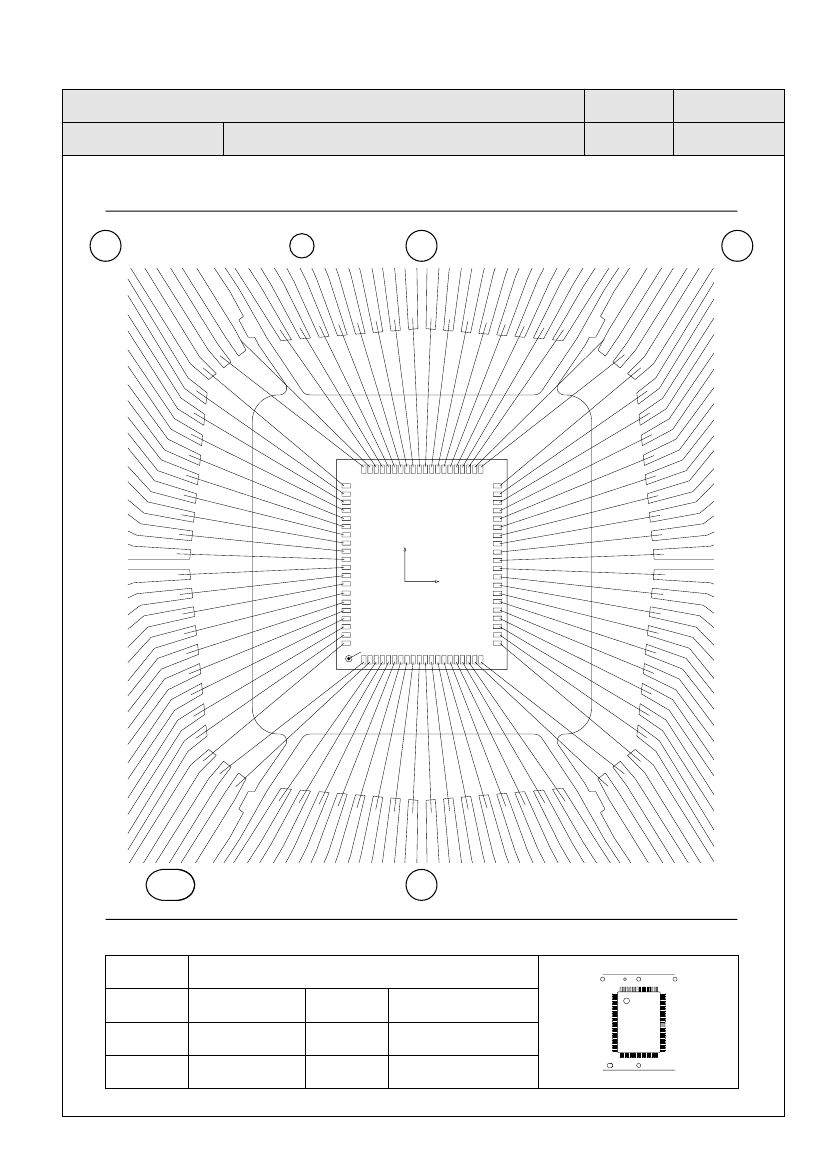

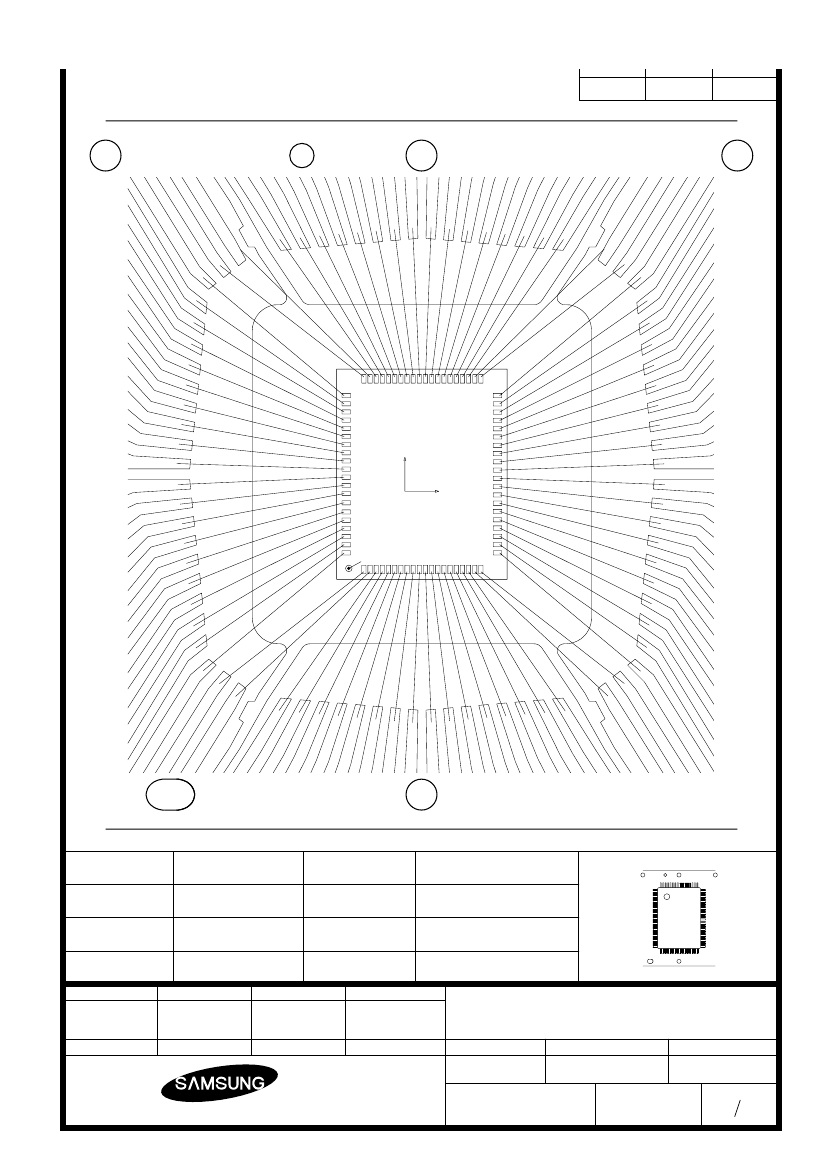

BONDING DIAGRAM

PRODUCT

KS57P2316

PAGE

REV NO.

Y = 4460um

ID : -1552 -1997

X = 3620um

CJ7235X

TITLE

L/F MAT’L

CHIP SIZE

BACK METAL

ALLOY42

3620x4460um

BARE_Si

CJ7235X

PKG TYPE

DEV NAME

LF PAD SIZE

80_QFP_1420C

CJ7235X_Rev0_1420C

283x283 MIL

S A M S U N G

DOC. # : RK8011-05-03(1/2)
