TGAD-290NARLTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> TGAD-290NARLTR

TGAD-290NARLTR: DescriptionPulse Transformers ISO MOD SMD GullWing For ADI QUAD ISOs; CategoryPower/power management; File Size424KB，1 Pages; ManufacturerHALO Electronics

Download Datasheet Parametric Compare View All

TGAD-290NARLTR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TGAD-290NARLTR	-	-	View	Buy Now

TGAD-290NARLTR Overview

Pulse Transformers ISO MOD SMD GullWing For ADI QUAD ISOs

TGAD-290NARLTR Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	HALO Electronics
Product Category	Pulse Transformers
RoHS	Details
Turns Ratio	1CT:3CT
Inductance	389 uH
Voltage Time - Et	14 V us
Primary Resistance	0.8 Ohms
Mounting Style	SMD/SMT
Length	9.65 mm
Width	8.89 mm
Height	6.35 mm
Isolation Voltage	1.5 kV
Operating Temperature Range	- 40 C to + 85 C
Packaging	Reel
Product	Isolation Modules
Termination Style	SMD/SMT
Factory Pack Quantity	500

Preview

Download Datasheet

View All

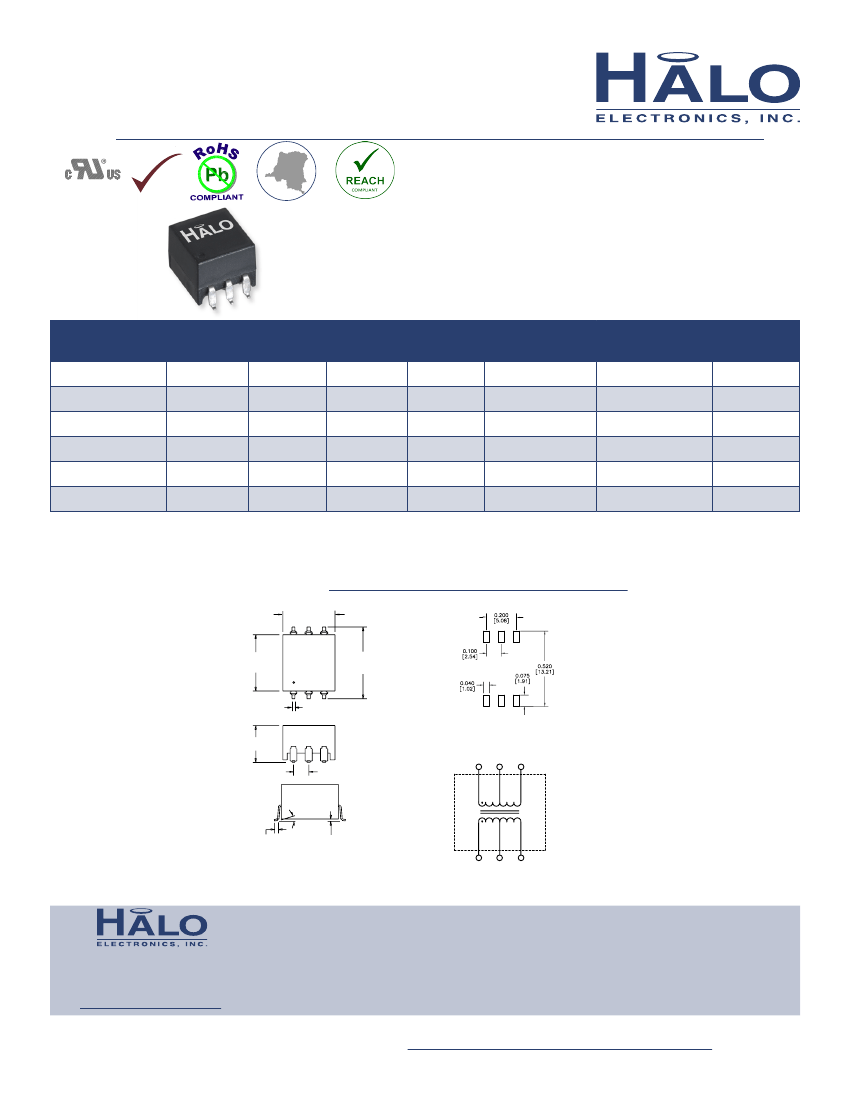

1.5kV Isolation Transformers

Functional Insulation for Analog Devices Quad Channel Isolators

RoHS

Compliant

Conflict

Product Features:

Designed specifically for Analog Devices

quad channel isolators and isolated switching

regulators

Fully tested and approved by Analog Devices™

UL/EN60950 and DEMKO recognized

ET Constant 14V-µs min.

FREE

Part Number

TGAD-260NALF

TGAD-260NARL

TGAD-290NALF

TGAD-290NARL

TGAD-292NALF

TGAD-292NARL

Turns

Ratio

1CT:2CT

1CT:3CT

1CT:5CT

PRI Pins

1-3

PRI OCL

(µH Typ)

389

PRI DCR

(ΩMax)

0.8

Isolation Voltage

(Vrms)

1,500

Temp.

Range

-40 to +85C

RoHS

Pb-Free

RoHS (7a)

Pb-Free

RoHS (7a)

Pb-Free

RoHS (7a)

Notes:

1. Pb-Free parts are RoHS 6/6 compliant. RoHS (7a) parts contain lead per exemption 7a which is set to expire in July 2016.

2. Parts with RL suffix are not recommended for new designs.

3. Please contact the factory or representative for individual datasheets or additional information

4. Analog Devices™ is a registered trademark of Analog Devices, Inc.

5. For reinforced inuslation and 5kV isolation please see

www.haloelectronics.com/pdf/discrete-dc2dc-8pin5kvad.pdf

0.350 typ

(8.89)

0.380 max

(9.65)

0.475 max

(12.07)

0.018 typ

(0.46)

0.250 max

(6.35)

Recommended Solder Pad

0.100 typ

(2.54)

0-6∞

0.015/0.025

(0.38/0.64)

0.006/0.015

(0.15/0.38)

DIMENSIONS : Inch(mm)

CO-PLANARITY : 0.004(0.102)

Dimensions: Inch[mm]

2880 Lakeside Drive #116

Santa Clara, CA 95054

(650) 903-3800

www.haloelectronics.com

HALO

Electronics is a leading supplier of high quality communication magnetics

including signal transformers, filters, CMR chokes, PoE power transformers,

DC/DC converters, and integrated Ethernet connectors. HALO’s leading edge

technology solutions are manufactured in ISO9001 and ISO14001 factories

offering high quality products at a competitive price.

Revised 8/2015. Download the latest version at

www.haloelectronics.com/pdf/discrete-6pin15kvad.pdf
